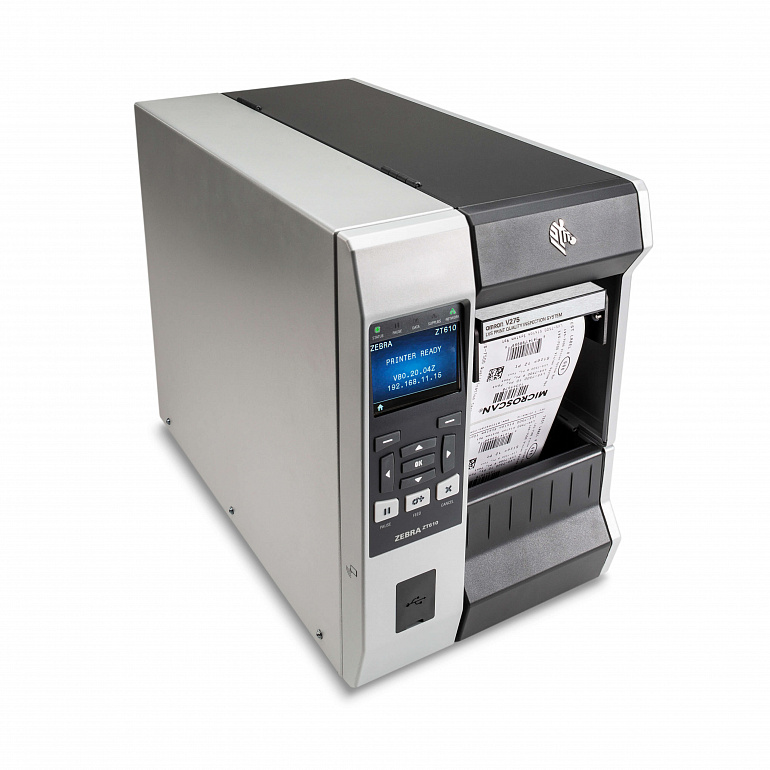

V275 print quality inspection engine, integrated into a 300 dpi resolution Zebra ZT620 printer, print and verify labels up to 168 mm wide at speeds up to 203 mm per second.
Характеристики
| Printer operation | Continuous, Tear-off |
| Printer model | ZT620 |
| Printer resolution | 300 dpi |
Все характеристики
| Specifications | |
| In-line print quality inspection system | Yes |
| Sensor | 600 dpi line scan camera |
| Printer operation | Continuous, Tear-off |
| Printer model | ZT620 |
| Printer resolution | 300 dpi |
| Decoder type | 1D, 2D |
| Functions | Blemish detection, OCR, OCV |
| Max. inspection speed | 203 mm/s |
| Max. inspection width | 168 mm |
| Max. web width | 180 mm |
| Min. inspection width | 25 mm |
| Max. label length | 305 mm |
| Min. label length | 20 mm |
| Max. media thickness | 0.28 mm |
| Min. media thickness | 0.05 mm |
