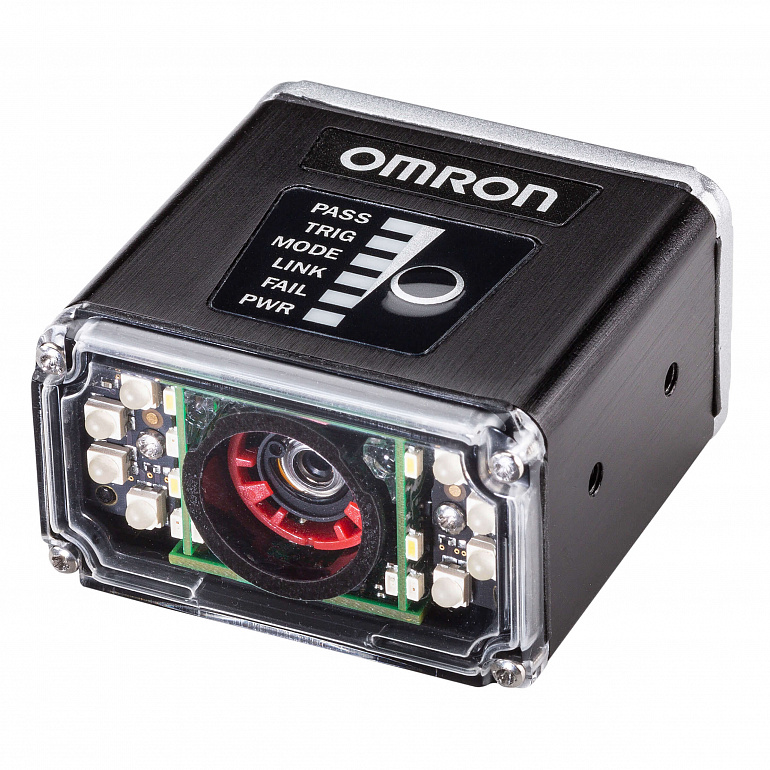

F430 Smart Camera, 1.2 MP monochrome, Narrow view, Fixed focus 400 mm, Red light, AutoVISION+Visionscape, Ethernet TCP/IP, EtherNet/IP, PROFINET, IP65/IP67
Характеристики
| Number of pixels | 1.2 MP |
| Camera type | Monochrome |
| Autofocus | No |
| Focus distance | 400-400 mm |
| Focal length | 16 mm |
| Field of view (width) | 118-118 mm |
| Frame rate | 40 fps |
| Shutter type | Global |
| Illumination | Red LED |
| Software option(s) | AutoVISION, Visionscape |
| Image width | 1280 pixels |
| Image height | 960 pixels |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, PROFINET Slave, Serial RS-232C |
| Degree of protection (IP) | IP65/IP67 |
| Application | Code reading, Code verification, Counting, Measurement inspection, OCR / OCV, Presence / Absence |
Все характеристики
| Specifications | |
| Camera family | F430 |
| Number of pixels | 1.2 MP |
| Camera type | Monochrome |
| Autofocus | No |
| Focus distance | 400-400 mm |
| Focal length | 16 mm |
| Field of view (width) | 118-118 mm |
| Frame rate | 40 fps |
| Shutter type | Global |
| Illumination | Red LED |
| Software option(s) | AutoVISION, Visionscape |
| Image sensor type | CMOS |
| Image width | 1280 pixels |
| Image height | 960 pixels |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, PROFINET Slave, Serial RS-232C |
| Degree of protection (IP) | IP65/IP67 |
| Application | Code reading, Code verification, Counting, Measurement inspection, OCR / OCV, Presence / Absence |
