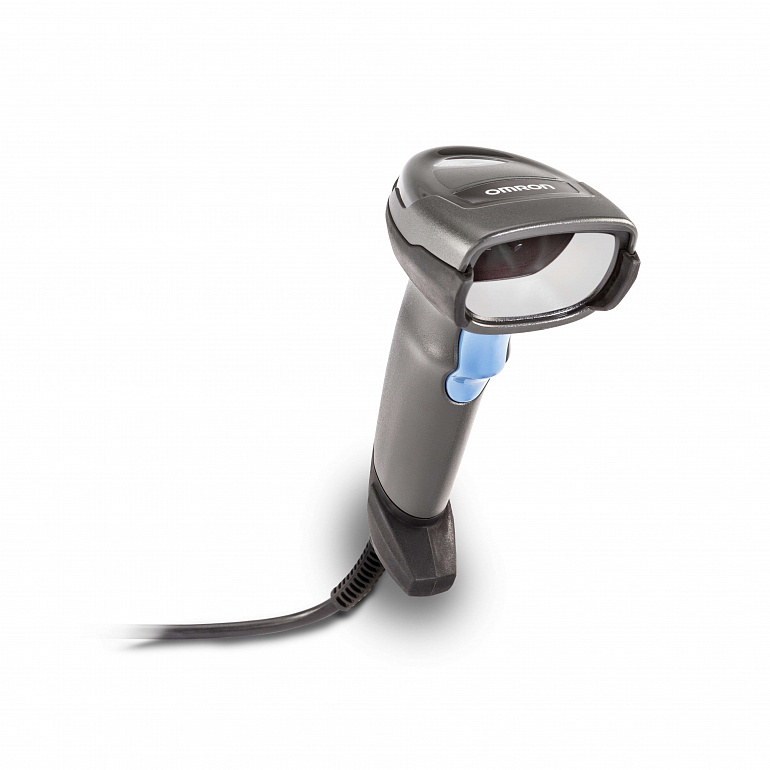

V410-H XD Handheld Reader, black grey, wired, with X-Mode
Характеристики
| Decoder type | 1D, 2D, DPM, X-Mode (advanced 1D+2D+DPM) |
| Range | 0-71 mm |
| Sensor | 1.02 MP, Mono |
| Optics class | High Density |
| 2D Code symbologies supported | Aztec, DotCode, Dotted Data Matrix, GS1 Data Matrix (ECC200), GS1 Databar (Composite), GS1 Databar (Stacked), Han Xin, Micro QR, MicroPDF417, PDF417, Postal Codes, QR Code, TLC-39, securPharm |
| Bar Code symbologies supported | BC412, Base 32 (Italian Pharma), Codabar, Code 11, Code 128, Code 39, Code 93, GS1 Databar, Korean 3 of 5, MSI Plessey, UPC/EAN |
| Degree of protection (IP) | IP52 |
| Communication port(s) | Serial RS-232C, USB |
| Supply voltage DC | 4.5-5.5 V |
| Code marking type | Direct part marking |
| Housing type | Light Industrial |
| Connection type | Wired |
Все характеристики
| Specifications | |
| Decoder type | 1D, 2D, DPM, X-Mode (advanced 1D+2D+DPM) |
| Range | 0-71 mm |
| Sensor | 1.02 MP, Mono |
| Optics class | High Density |
| 2D Code symbologies supported | Aztec, DotCode, Dotted Data Matrix, GS1 Data Matrix (ECC200), GS1 Databar (Composite), GS1 Databar (Stacked), Han Xin, Micro QR, MicroPDF417, PDF417, Postal Codes, QR Code, TLC-39, securPharm |
| Bar Code symbologies supported | BC412, Base 32 (Italian Pharma), Codabar, Code 11, Code 128, Code 39, Code 93, GS1 Databar, Korean 3 of 5, MSI Plessey, UPC/EAN |
| Degree of protection (IP) | IP52 |
| Communication port(s) | Serial RS-232C, USB |
| Supply voltage DC | 4.5-5.5 V |
| Code marking type | Direct part marking |
| Housing type | Light Industrial |
| Connection type | Wired |
