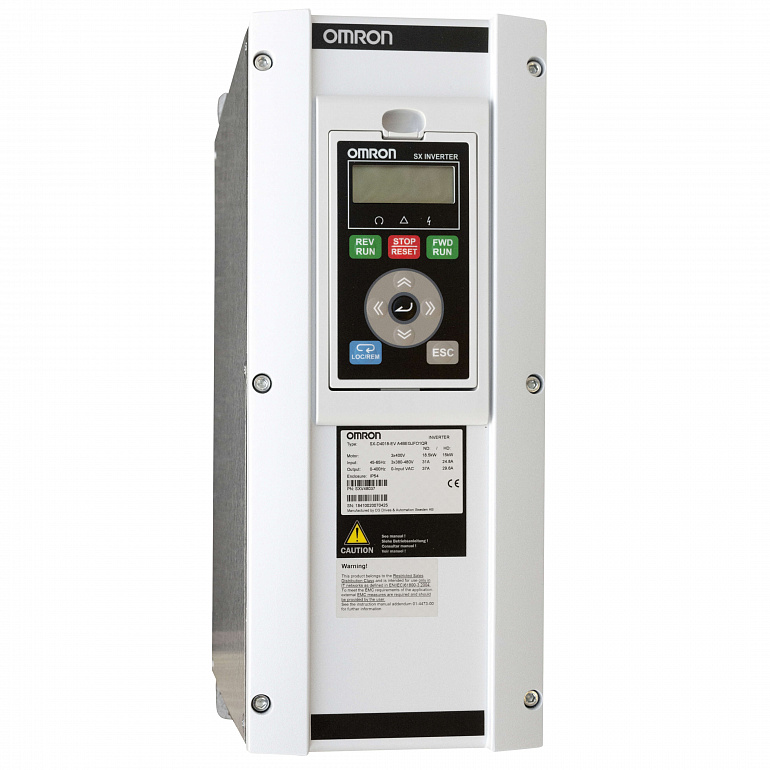

SX inverter IP54, 4 kW, 3~ 690 VAC, V/f drive, built-in filter, max. output freq. 400 Hz
Характеристики
| Drive control method | V/f control |
| Drive supply voltage | 690 V three phase |
| Max. motor output at variable torque | 4 kW |
| Built in EMC filter | Yes |
| Degree of protection (IP) | IP54 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Communication option(s) | Bluetooth, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MODBUS Slave, MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave, Serial RS-232C, Serial RS-485 |
Все характеристики
| Specifications | |
| Drive control method | V/f control |
| Drive supply voltage | 690 V three phase |
| Max. motor output at variable torque | 4 kW |
| Max. motor output at constant torque | 3 kW |
| Built in EMC filter | Yes |
| Degree of protection (IP) | IP54 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication option(s) | Bluetooth, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MODBUS Slave, MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave, Serial RS-232C, Serial RS-485 |
| Product Height (unpacked) | 512 mm |
| Product Width (unpacked) | 178 mm |
| Product Depth (unpacked) | 314 mm |
| Product Weight (unpacked) | 17000 g |
