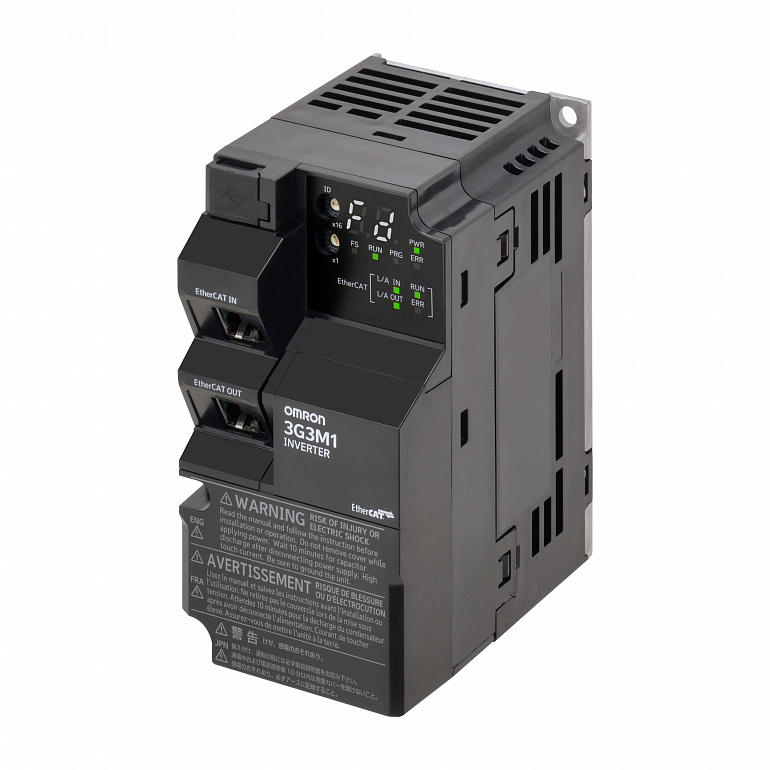

M1 AC Drive, 0.7/1.1 kW (HD/ND), 5.0/6.0 A (HD/ND), 200 VAC, 1~ input, OLV/CLV control, EtherCAT, STO (FSoE + wired), max. output freq. 590 Hz.
Характеристики
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control |
| Drive supply voltage | 230 V single phase |
| Max. motor output at constant torque | 0.7 kW |
| Max. motor output at variable torque | 1.1 kW |
| Built in EMC filter | No |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Communication port(s) | EtherCAT Slave, USB |
| Communication option(s) | None |
| Finless type | No |
Все характеристики
| Specifications | |
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control |
| Drive supply voltage | 230 V single phase |
| Max. motor output at constant torque | 0.7 kW |
| Max. motor output at variable torque | 1.1 kW |
| Built in EMC filter | No |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Communication port(s) | EtherCAT Slave, USB |
| Communication option(s) | None |
| Product Height (unpacked) | 127 mm |
| Product Width (unpacked) | 68 mm |
| Product Depth (unpacked) | 165 mm |
| Product Weight (unpacked) | 900 g |
| Finless type | No |
