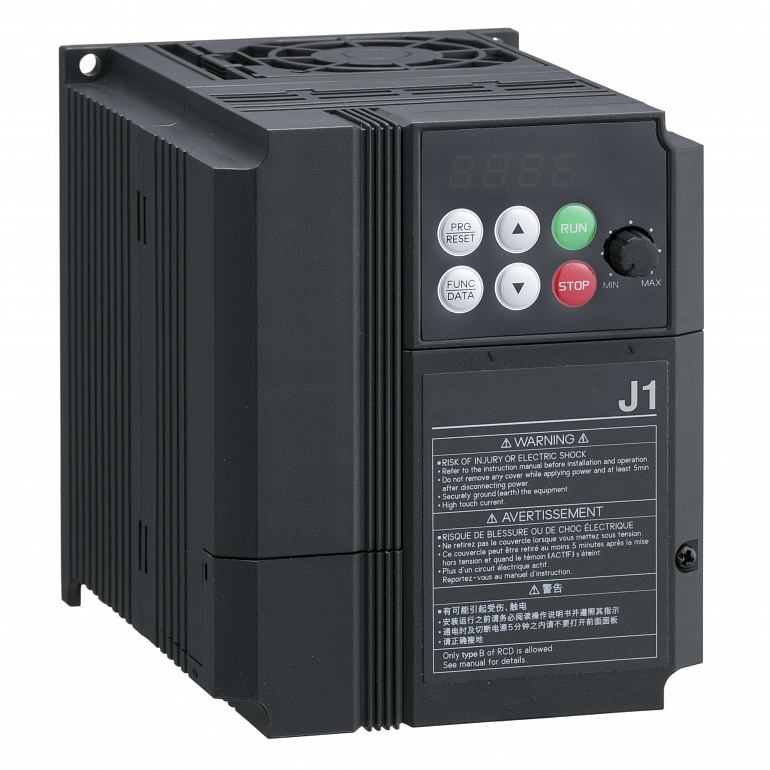

J1 AC Drive, 0.75 kW, 2.5 A, 400 VAC, 3~ input, max. output freq. 400 Hz
Характеристики
| Drive control method | V/f control, Vector control |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque | 0.75 kW |
| Max. motor output at variable torque | 0.75 kW |
| Built in EMC filter | No |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor |
| Communication port(s) | MODBUS Slave, Serial RS-485 |
| Communication option(s) | USB |
| Finless type | No |
Все характеристики
| Specifications | |
| Drive control method | V/f control, Vector control |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque | 0.75 kW |
| Max. motor output at variable torque | 0.75 kW |
| Built in EMC filter | No |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor |
| Communication port(s) | MODBUS Slave, Serial RS-485 |
| Communication option(s) | USB |
| Product Height (unpacked) | 128 mm |
| Product Width (unpacked) | 108 mm |
| Product Depth (unpacked) | 139 mm |
| Product Weight (unpacked) | 800 g |
| Finless type | No |
