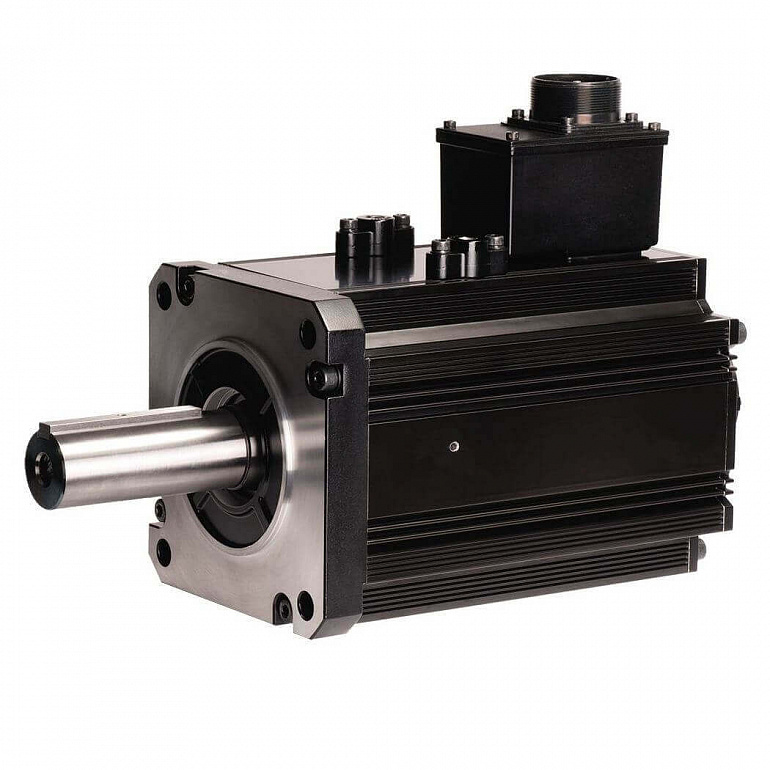

G5 series AC servo motor, 6 kW, 400 VAC, 1000 rpm, 57.3 Nm, Absolute encoder, with brake, with oil seal
Характеристики
| Servo control method | Analog, EtherCAT, MECHATROLINK II, Pulse train |
| Drive supply voltage | 400 V three phase |
| Rated output | 6 kW |
| Rated torque | 57.3 Nm |
| Motor with brake | Yes |
| Encoder type | Absolute with battery |
| Rated speed | 1000 r/min |
Все характеристики
| Specifications | |
| Servo control method | Analog, EtherCAT, MECHATROLINK II, Pulse train |
| Drive supply voltage | 400 V three phase |
| Rated output | 6 kW |
| Rated speed | 1000 r/min |
| Rated torque | 57.3 Nm |
| Peak torque | 143 Nm |
| Encoder type | Absolute with battery |
| Encoder resolution | 17 Bit |
| Motor with brake | Yes |
| Motor with oil seal | Yes |
| Flange size square (LC) | 176 mm |
| Shaft diameter | 42 mm |
| Shaft with key | Yes |
| Shaft with tap | Yes |
| Product Weight (unpacked) | 40400 g |
