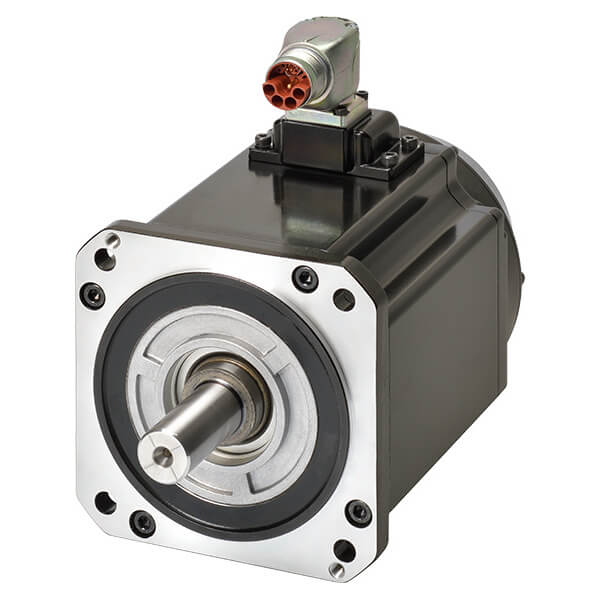

1SA AC servo motor, 3 kW, 400 VAC, 3000 rpm, 9.55 Nm, absolute encoder, with brake
Характеристики
| Servo control method | EtherCAT |
| Drive supply voltage | 400 V three phase |
| Rated torque | 9.55 Nm |
| Rated speed | 3000 r/min |
| Rated output | 3 kW |
| Encoder type | Absolute without battery |
| Motor with brake | Yes |
Все характеристики
| Specifications | |
| Servo control method | EtherCAT |
| Drive supply voltage | 400 V three phase |
| Rated output | 3 kW |
| Rated torque | 9.55 Nm |
| Rated speed | 3000 r/min |
| Encoder resolution | 20 Bit |
| Motor with brake | Yes |
| Peak torque | 28.7 Nm |
| Encoder type | Absolute without battery |
| Flange size square (LC) | 130 mm |
| Motor with oil seal | No |
| Shaft with key | Yes |
| Shaft with tap | Yes |
| Product Weight (unpacked) | 16000 g |
