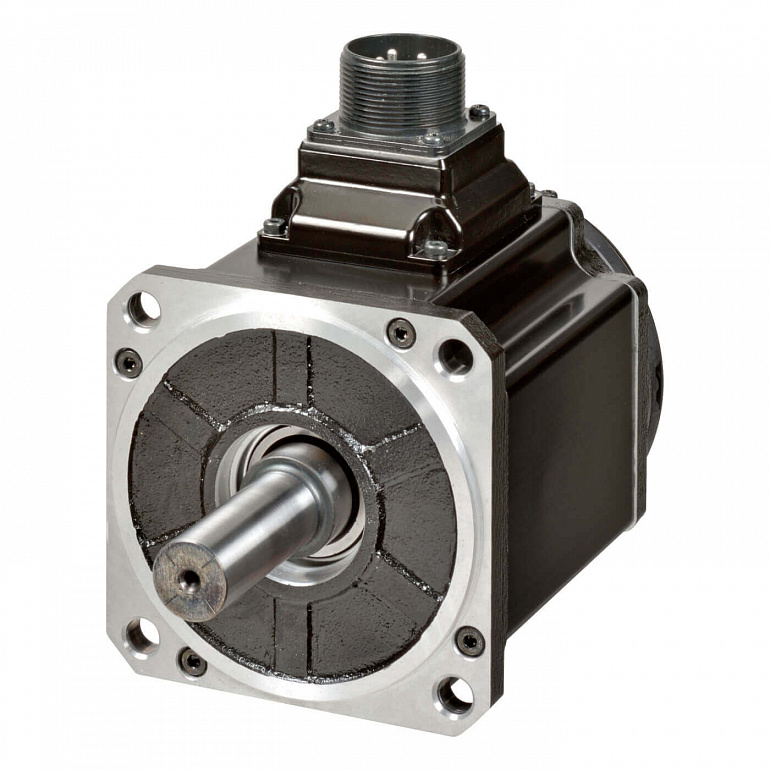

1S AC servo motor, 600 W, 400 VAC, 2000 rpm, 2.86 Nm, absolute encoder
Характеристики
| Servo control method | EtherCAT |
| Drive supply voltage | 400 V three phase |
| Rated torque | 2.86 Nm |
| Rated speed | 2000 r/min |
| Rated output | 0.6 kW |
| Encoder type | Absolute without battery |
| Motor with brake | No |
Все характеристики
| Specifications | |
| Servo control method | EtherCAT |
| Drive supply voltage | 400 V three phase |
| Rated output | 0.6 kW |
| Rated speed | 2000 r/min |
| Rated torque | 2.86 Nm |
| Peak torque | 8.59 Nm |
| Encoder type | Absolute without battery |
| Encoder resolution | 23 Bit |
| Motor with brake | No |
| Motor with oil seal | No |
| Flange size square (LC) | 100 mm |
| Shaft diameter | 19 mm |
| Shaft with key | Yes |
| Shaft with tap | Yes |
| Product Weight (unpacked) | 4700 g |
