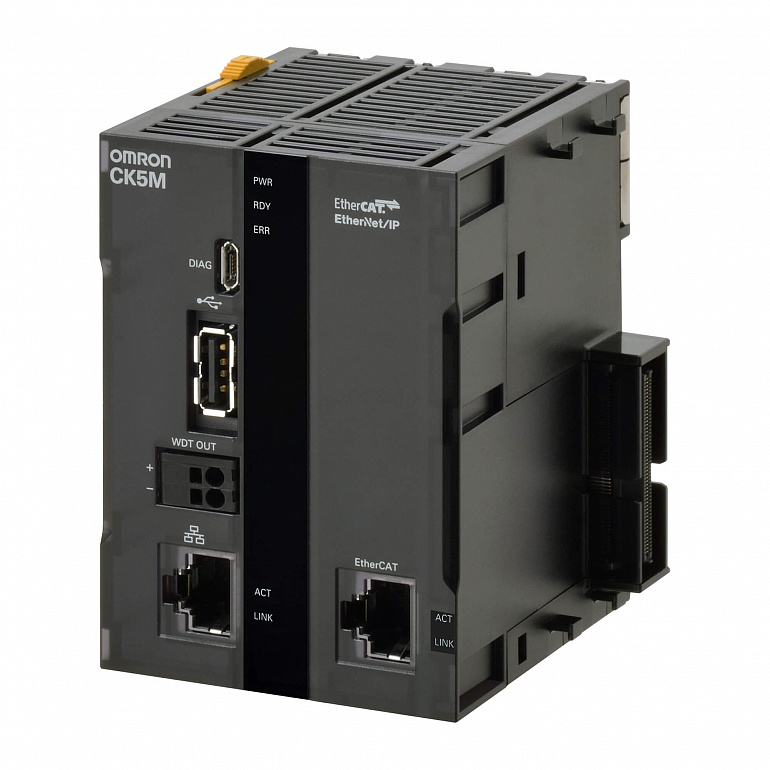

CK5M Quad Core 1040 CPU, 2 GB RAM, 4 GB Flash, 16 EtherCAT axes. Up to 8 axis interface units can be connected via Expansion units, max 32 axis local.
Характеристики
| Type of module | CK5M Motion Control CPU |
| CPU clock frequency | 1.6 GHz |
| Max. number of axes via EtherCAT | 16 |
| Max. number of axis interface units | 8 |
| Amplifier interface | |
| Encoder interface | |
| Digital output type | |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Number of analog inputs | 0 |
Все характеристики
| Specifications | |
| Type of module | CK5M Motion Control CPU |
| CPU clock frequency | 1.6 GHz |
| Max. number of axes via EtherCAT | 16 |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Number of analog inputs | 0 |
| Max. number of axis interface units | 8 |
| Communication port(s) | EtherCAT Master, EtherNet/IP, MODBUS/TCP, USB |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 63.2 mm |
| Product Depth (unpacked) | 80 mm |
| Product Weight (unpacked) | 250 g |
