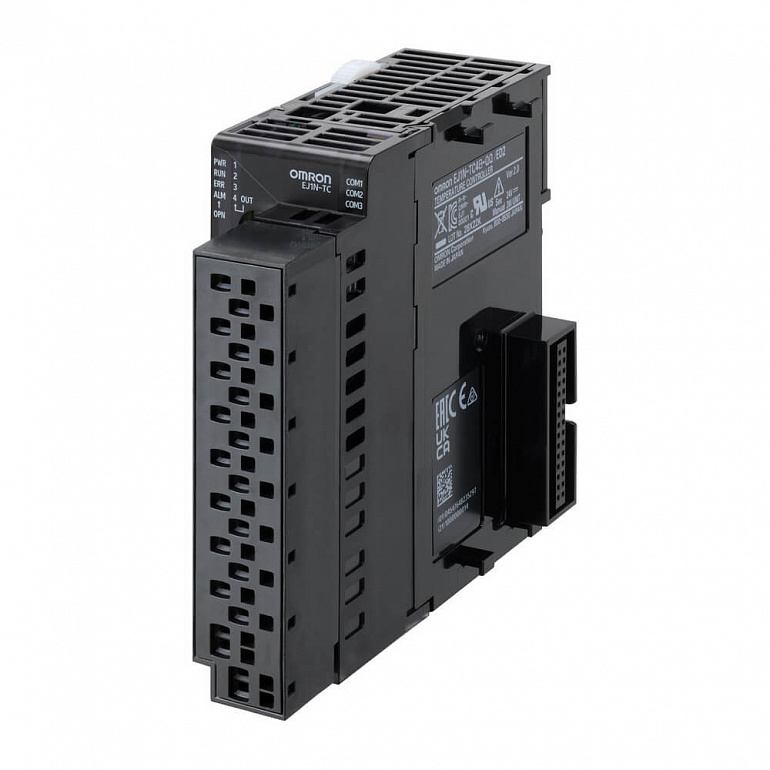

CelciuXº In-panel temperature controller basic unit, DIN rail mounting, 4 loops, thermocouple/Pt100/analog input, 4 x 12 VDC outputs, heat, cool, heat/cool, screwless clamp terminals
Характеристики
| Size | 31 x 90 x 105 mm |
| Functions | PID control |
| Number of control loops | 4 |
| Temperature range | -200-2300 °C |
| Temperature input type | B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U |
| Linear analog input type | 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Features | |
| Number of event inputs | |
| Number of alarm outputs | |
| Supply voltage DC | 20.4-26.4 V |
| Control output | 4 Voltage pulse |
| Communication port(s) | Serial RS-485 |
| Terminal type | Push-in |
Все характеристики
| Specifications | |
| Size | 31 x 90 x 105 mm |
| Functions | PID control |
| Number of control loops | 4 |
| Temperature input type | B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U |
| Linear analog input type | 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Temperature range | -200-2300 °C |
| Supply voltage DC | 20.4-26.4 V |
| Control output | 4 Voltage pulse |
| Communication port(s) | Serial RS-485 |
| Terminal type | Push-in |
