Описание

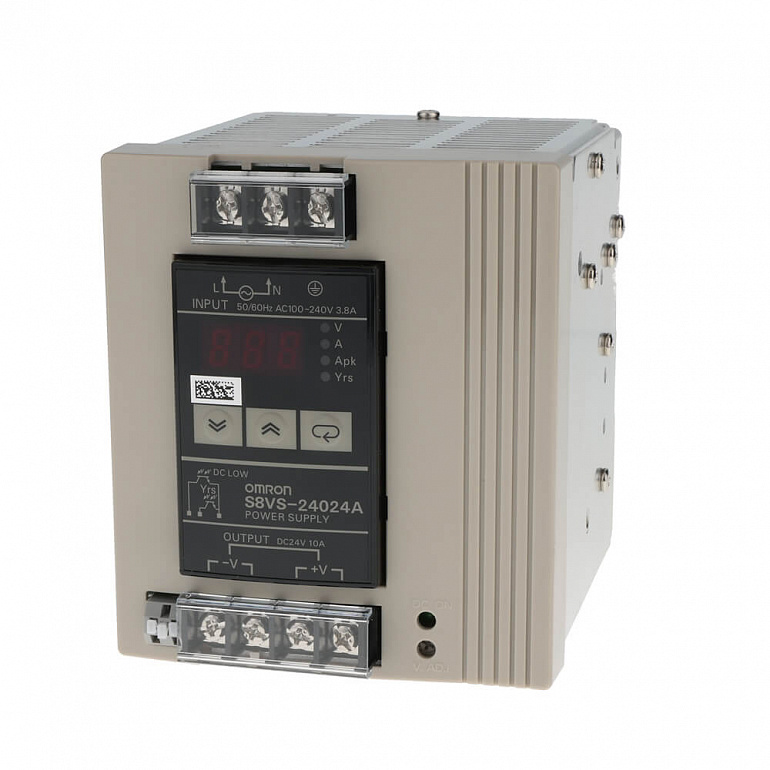

Power supply, 240W, 100/240 VAC input, 24VDC 10A output, DIN rail mounting, digital display with running voltage and current, peak current, and maintenance monitor function with settable alarm point
Характеристики
| Type | DIN-rail |
| Mounting method | DIN rail |
| Phase | Single |
| Power output | 240 W |
| Efficiency | 88 % |
| Output voltage | 24 V |
| Rated output current | 10 A |
| Temperature range | -10-60 °C |
| Features | |
| Terminal type | Screw |
| Communication port(s) | None |
| Alarm function | Transistor - sinking |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 80-370 V |
| Product Width (unpacked) | 100 mm |
| Product Height (unpacked) | 115 mm |
| Product Depth (unpacked) | 125.2 mm |
Все характеристики
| Specifications | |
| Type | DIN-rail |
| Mounting method | DIN rail |
| Phase | Single |
| Power output | 240 W |
| Efficiency | 88 % |
| Output voltage | 24 V |
| Rated output current | 10 A |
| Temperature range | -10-60 °C |
| Terminal type | Screw |
| Communication port(s) | None |
| Alarm function | Transistor - sinking |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 80-370 V |
| Product Width (unpacked) | 100 mm |
| Product Height (unpacked) | 115 mm |
| Product Depth (unpacked) | 125.2 mm |
