Описание

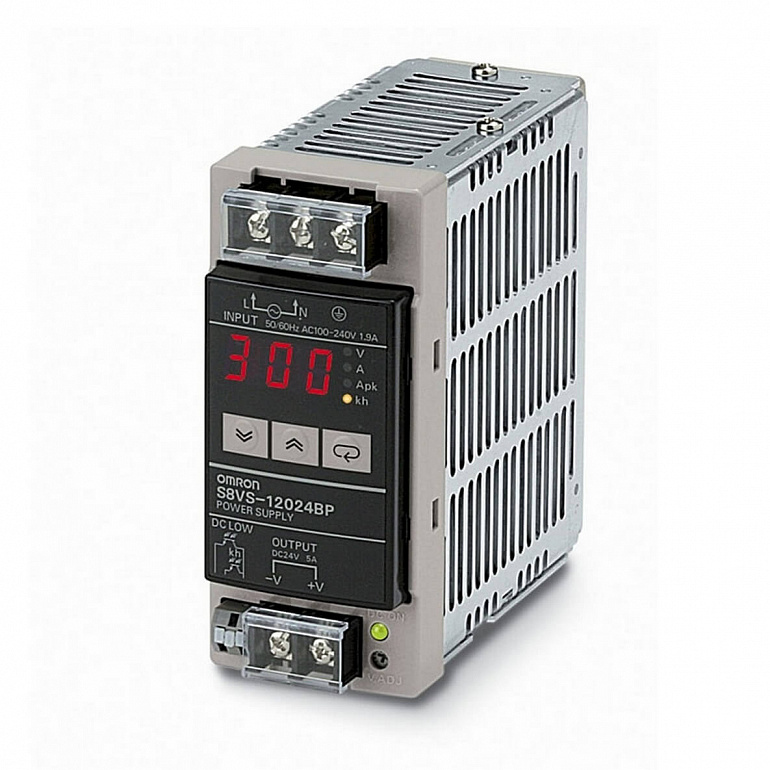

Power supply, 120 W, 100 to 240 VAC input, 24 VDC 5A output, DIN rail mounting, digital display with running voltage and current, peak current, and total run time function with settable alarm point
Характеристики
| Type | DIN-rail |
| Mounting method | DIN rail |
| Phase | Single |
| Power output | 120 W |
| Efficiency | 85 % |
| Output voltage | 24 V |
| Rated output current | 5 A |
| Temperature range | 25-85 °C |
| Features | |
| Terminal type | Screw |
| Communication port(s) | None |
| Alarm function | Transistor - sinking |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 80-370 V |
| Product Width (unpacked) | 50 mm |
| Product Height (unpacked) | 115 mm |
| Product Depth (unpacked) | 121.3 mm |
Все характеристики
| Specifications | |
| Type | DIN-rail |
| Mounting method | DIN rail |
| Phase | Single |
| Power output | 120 W |
| Efficiency | 85 % |
| Output voltage | 24 V |
| Rated output current | 5 A |
| Temperature range | 25-85 °C |
| Terminal type | Screw |
| Communication port(s) | None |
| Alarm function | Transistor - sinking |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 80-370 V |
| Product Width (unpacked) | 50 mm |
| Product Height (unpacked) | 115 mm |
| Product Depth (unpacked) | 121.3 mm |
