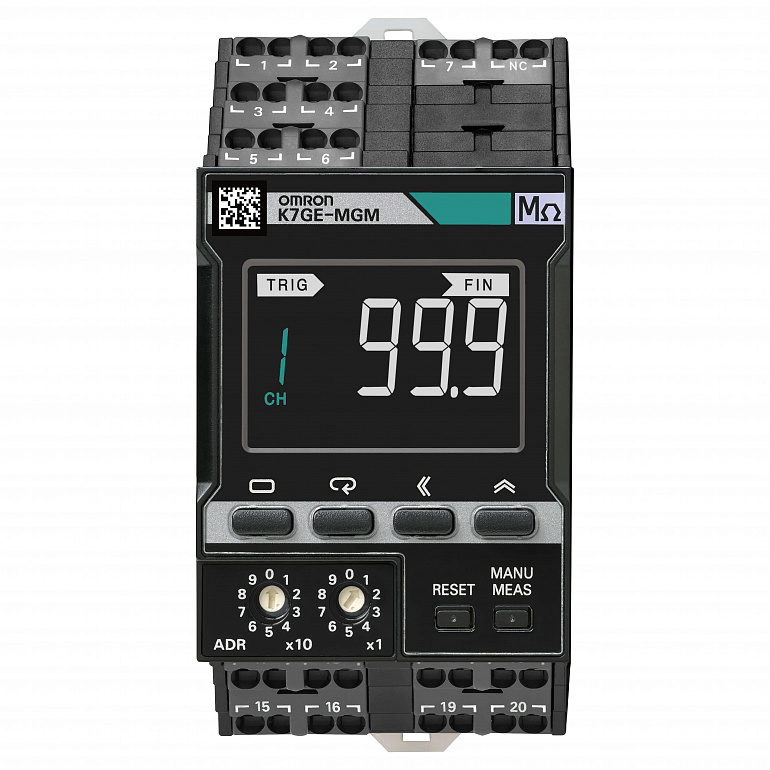

Insulation Resistance Monitoring Device for 3-phase & servo motors, pumps and heaters, 24 VAC/VDC, transistor control output, Push-in Plus, LCD display, RS-485/Modbus/RTU
Характеристики
| Supply voltage AC | 20.4-26.4 V |
| Supply voltage DC | 20.4-26.4 V |
Все характеристики
| Specifications | |
| Supply voltage AC | 20.4-26.4 V |
| Supply voltage DC | 20.4-26.4 V |
| Applicable motor type | AC motor, DC motor, Servo motor |
| Application | Detection of poor insulation of electric heater, Detection of poor insulation when motor stops |
| Megger voltage | 50 V |
| Resistance range | 0-99.9 Mohm |
| Number of digital outputs | 4 |
| Output type | NPN, Transistor |
| Product Width (unpacked) | 45 mm |
| Product Height (unpacked) | 90 mm |
| Product Depth (unpacked) | 91.9 mm |
| Communication port(s) | CompoWay/F, MODBUS RTU, Serial RS-485 |
| Mounting method | DIN rail |
| Mounting position | Controller: panel, Probe unit: panel (up to 8 per each controller) |
| Setup method | Free software |
| User interface | Condition monitoring software tool, Front LED, LCD screen |
