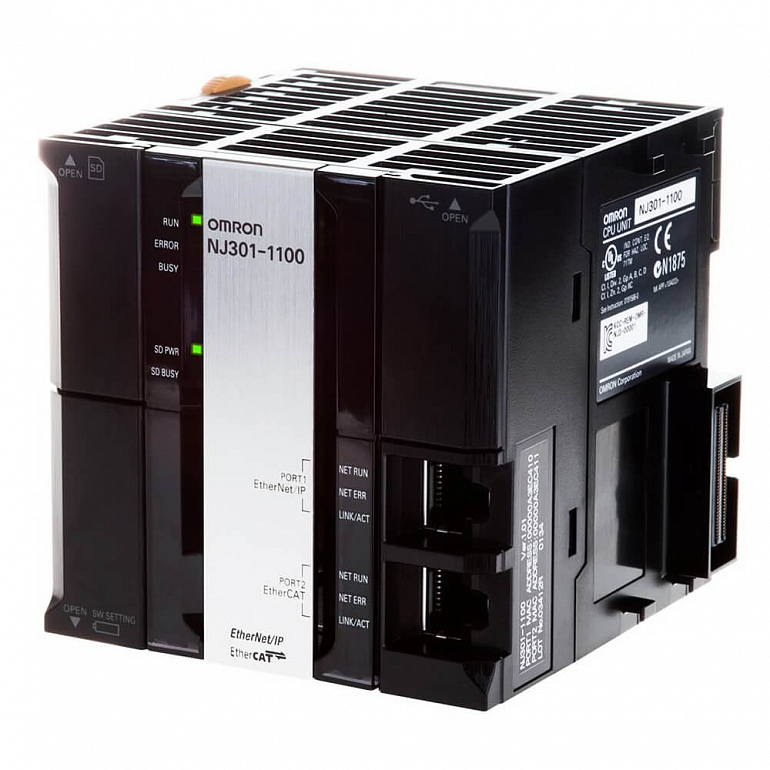

Sysmac NJ3 CPU, 5 MB memory, built-in EtherCAT (4 servo axes, in total 192 EtherCAT nodes) and EtherNet/IP
Характеристики
| Max. number of synchronous axes | 4 |
| Primary task cycle time | 0.5 ms |
| Program memory | 5 MB |
| Variables memory | 2.5 MB |
| Communication port(s) | EtherCAT Master, EtherNet/IP, USB |
| Max. number of remote I/O nodes | 192 |
| Supports sequence control | Yes |
| Supports motion control | Yes |
Все характеристики
| Specifications | |
| Controller functionality | Motion control, Sequence control |
| Max. number of synchronous axes | 4 |
| Max. number of axes (incl. virtual) | 15 |
| Primary task cycle time | 0.5 ms |
| Program memory | 5 MB |
| Variables memory | 2.5 MB |
| Communication port(s) | EtherCAT Master, EtherNet/IP, USB |
| Communication option(s) | CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes | 192 |
| I/O system | CJ I/O Bus |
| Max. number of expansion units | 40 |
| Product Height (unpacked) | 96 mm |
| Product Width (unpacked) | 90 mm |
| Product Depth (unpacked) | 150 mm |
| Product Weight (unpacked) | 530 g |
