Описание

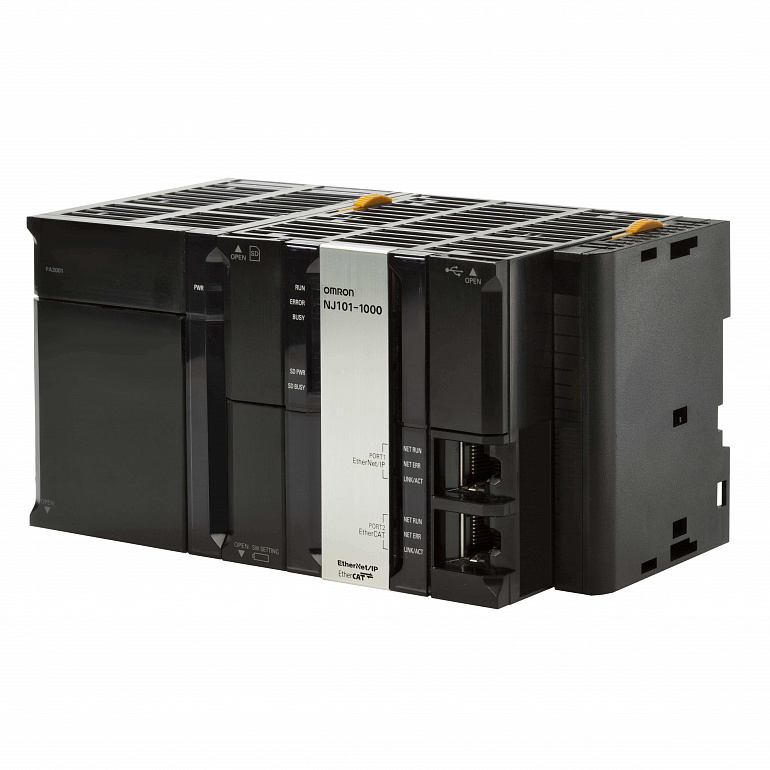

Sysmac NJ1 CPU, 3MB memory, built-in EtherCAT (0 servo axes, in total 64 EtherCAT nodes) and EtherNet/IP
Характеристики
| Supports DB connection | No |
| Supports motion control | No |
| Max. number of synchronous axes | 0 |
| Primary task cycle time | 1 ms |
| Program memory | 3 MB |
| Variables memory | 0.5 MB |
| Communication port(s) | EtherCAT Master, EtherNet/IP, USB |
| Max. number of remote I/O nodes | 64 |
| Supports sequence control | Yes |
Все характеристики
| Specifications | |
| Controller functionality | Sequence control |
| Max. number of synchronous axes | 0 |
| Max. number of axes (incl. virtual) | 0 |
| Primary task cycle time | 1 ms |
| Program memory | 3 MB |
| Variables memory | 0.5 MB |
| Communication port(s) | EtherCAT Master, EtherNet/IP, USB |
| Communication option(s) | CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes | 64 |
| I/O system | CJ I/O Bus |
| Max. number of expansion units | 40 |
| Product Weight (unpacked) | 627 g |
