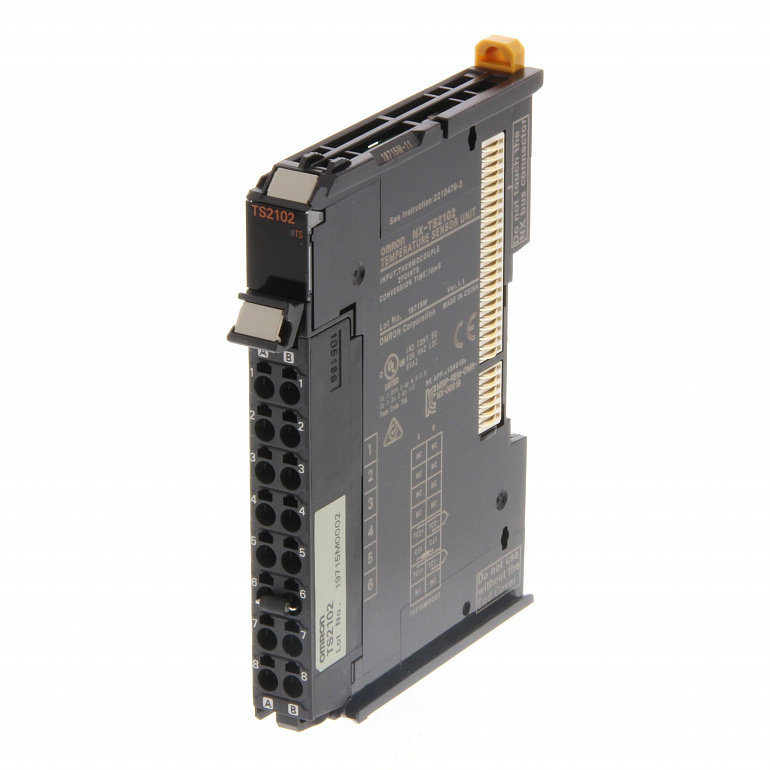

2 Thermocouple Inputs, type K, J, T, E, L, U, N, R, S, B, C(W/Re5-26), P(PLII), resolution 0.01°C, 10 ms/Unit, screwless push-in connector, 12 mm wide
Характеристики
| Type of module | Analog I/O |
| Linear analog input type | None |
| Temperature input type | B, C (WRe5-26), E, J, K, L, N, P (PLII), R, S, T, U |
| Linear analog output type | None |
| Digital input type | |
| Digital output type | |
| Connection method | |
| Number of analog inputs | 2 |
| Number of analog outputs | 0 |
| Number of digital inputs | |
| Number of digital outputs | |
| Number of encoder input channels | |
| Number of pulse output channels | |
| Resolution of the analog inputs | 17 Bit |
| Resolution of the analog outputs | 0 Bit |
| Input circuit type | Differential |
| Conversion time | 10 ms/unit |
| Control function | |
| Heater burnout detection | |
| Permitted voltage at input | |
| Output current | |
| Short-circuit protected outputs | |
| Max. encoder input frequency | |
| Max. pulse output frequency | |
| Signal processing | Free running |
| Suitable for safety functions | No |
| Memory size | |
| With certification | |
| Communication port(s) | |
| Number of communication ports | |
| I/O connection type | Push-in |
| Number of IOV (V+) terminals | |
| Number of IOG (V-) terminals | |
| Number of FG terminals |
Все характеристики
| Specifications | |
| I/O system | NX I/O Bus |
| Type of module | Analog I/O |
| Number of analog inputs | 2 |
| Temperature input type | B, C (WRe5-26), E, J, K, L, N, P (PLII), R, S, T, U |
| Linear analog input type | None |
| Resolution of the analog inputs | 17 Bit |
| Input circuit type | Differential |
| Number of analog outputs | 0 |
| Linear analog output type | None |
| Resolution of the analog outputs | 0 Bit |
| Conversion time | 10 ms/unit |
| Signal processing | Free running |
| IO-Link master | No |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | Yes |
| Suitable for safety functions | No |
| SIL according to IEC 61508 | None |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 12 mm |
| Product Depth (unpacked) | 80 mm |
| Product Weight (unpacked) | 70 g |
