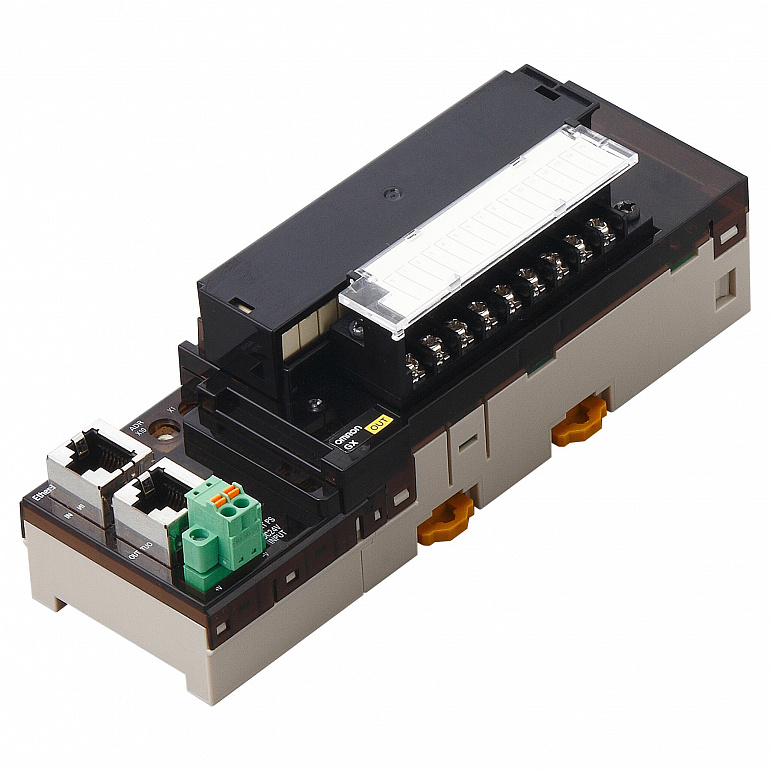

EtherCAT digital I/O unit, 16 relay x outputs, 1-wire, expandable
Характеристики
| Type of module | Digital I/O |
| Digital input type | None |
| Permitted voltage at input | |
| Digital output type | Relay NO |
| Short-circuit protected outputs | No |
| Connection method | 1-wire |
| I/O connection type | Screw |
| Linear analog input type | |
| Temperature input type | |
| Linear analog output type | |
| Number of digital inputs | 0 |
| Number of digital outputs | 16 |
| Number of analog inputs | |
| Number of analog outputs | |
| Number of encoder input channels | |
| Max. encoder input frequency | |
| I/O system | I/O Expansion Link |
Все характеристики
| Specifications | |
| Communication port(s) | EtherCAT Slave |
| Type of module | Digital I/O |
| I/O connection type | Screw |
| Connection method | 1-wire |
| Number of digital inputs | 0 |
| Digital input type | None |
| Number of digital outputs | 16 |
| Digital output type | Relay NO |
| Short-circuit protected outputs | No |
| Number of IOV (V+) terminals | 0 |
| Number of IOG (V-) terminals | 0 |
| Number of COM terminals | 2 |
| I/O system | I/O Expansion Link |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 54 mm |
| Product Width (unpacked) | 160 mm |
| Product Depth (unpacked) | 57.6 mm |
| Product Weight (unpacked) | 290 g |
