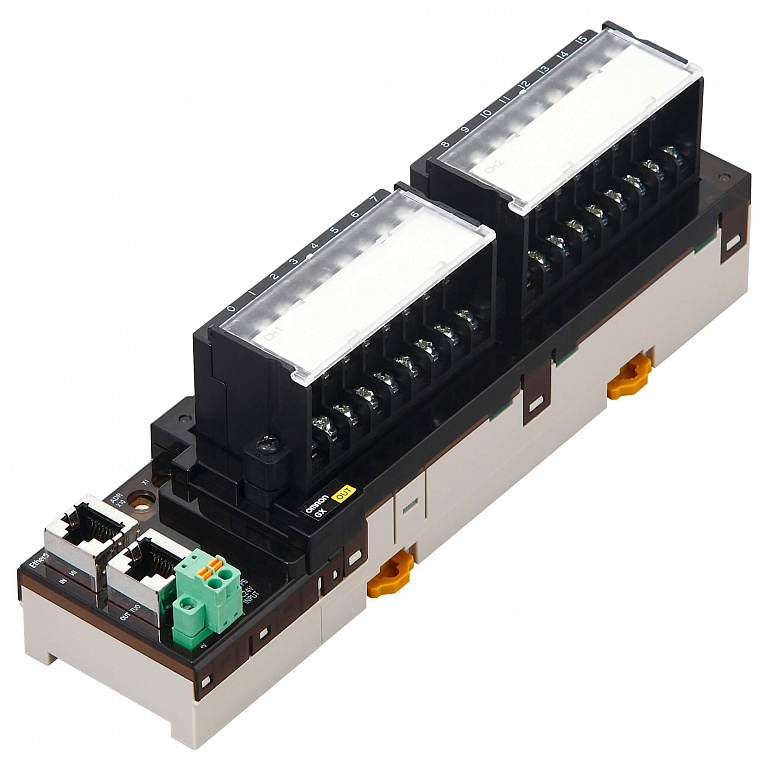

EtherCAT digital I/O unit, 8 x inputs + 8 x outputs, NPN, 3-wire
Характеристики
| Type of module | Digital I/O |
| Digital input type | NPN |
| Permitted voltage at input | 0-26.4 V |
| Digital output type | NPN |
| Short-circuit protected outputs | No |
| Connection method | 3-wire |
| I/O connection type | Screw |
| Linear analog input type | |
| Temperature input type | |
| Linear analog output type | |
| Number of digital inputs | 8 |
| Number of digital outputs | 8 |
| Number of analog inputs | |
| Number of analog outputs | |
| Number of encoder input channels | |
| Max. encoder input frequency | |
| I/O system | None |
Все характеристики
| Specifications | |
| Communication port(s) | EtherCAT Slave |
| Type of module | Digital I/O |
| I/O connection type | Screw |
| Connection method | 3-wire |
| Number of digital inputs | 8 |
| Digital input type | NPN |
| Permitted voltage at input | 0-26.4 V |
| Number of digital outputs | 8 |
| Digital output type | NPN |
| Permitted voltage at output | 0-26.4 V |
| Output current | 0.5 A |
| Short-circuit protected outputs | No |
| Number of IOV (V+) terminals | 18 |
| Number of IOG (V-) terminals | 18 |
| Number of COM terminals | 0 |
| I/O system | None |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 52 mm |
| Product Width (unpacked) | 200 mm |
| Product Depth (unpacked) | 68.9 mm |
| Product Weight (unpacked) | 370 g |
