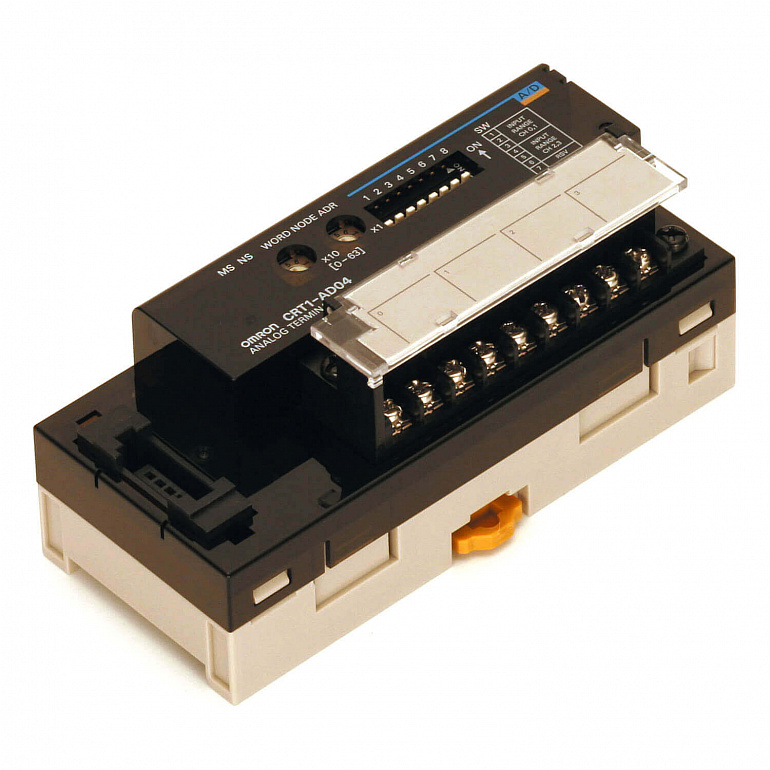

CompoNet analog input unit, 4 x inputs, 1-5 V, 0-5 V, 0-10 V, -10-10 V, 0-20 mA, 4-20 mA, resolution 1:6000, screw terminals
Характеристики
| Type of module | Analog I/O |
| Linear analog input type | -10 to 10 V, 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Temperature input type | None |
| Linear analog output type | None |
| Digital input type | |
| Digital output type | |
| Number of analog inputs | 4 |
| Number of analog outputs | 0 |
| Number of digital inputs | |
| Number of digital outputs | |
| Permitted voltage at input | |
| Output current | |
| Short-circuit protected outputs | |
| I/O connection type | Screw |
| Connection method | |
| Number of IOV (V+) terminals | |
| Number of IOG (V-) terminals | |
| I/O system |
Все характеристики
| Specifications | |
| Communication port(s) | CompoNet Slave |
| Type of module | Analog I/O |
| I/O connection type | Screw |
| Number of analog inputs | 4 |
| Temperature input type | None |
| Linear analog input type | -10 to 10 V, 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Resolution of the analog inputs | 13 Bit |
| Number of analog outputs | 0 |
| Linear analog output type | None |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 50 mm |
| Product Width (unpacked) | 115 mm |
| Product Depth (unpacked) | 50 mm |
| Product Weight (unpacked) | 200 g |
