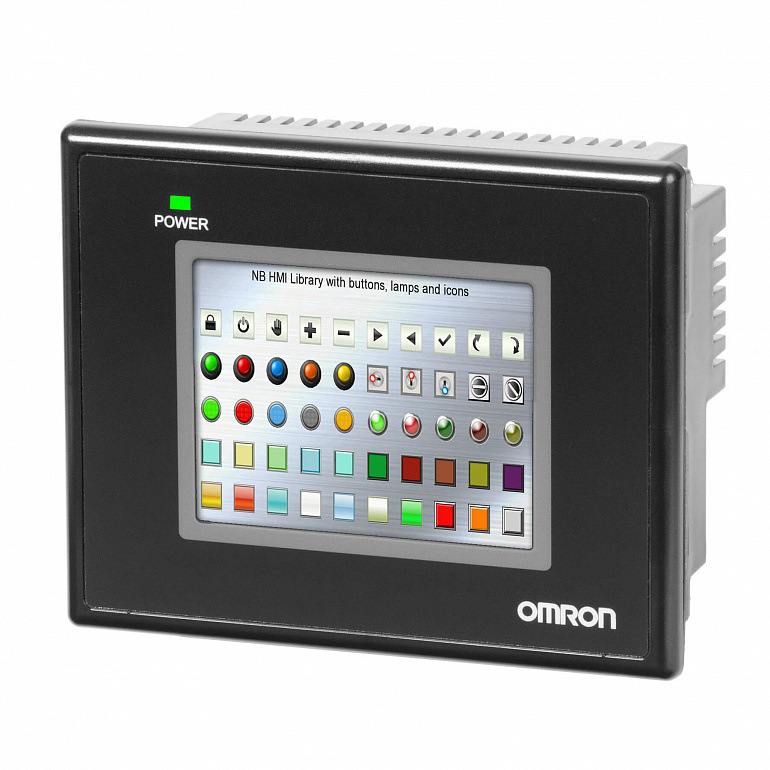

Touch screen HMI, 3.5 inch QVGA (320 x 240 pixel), TFT color
Характеристики
| Screen diagonal | 3.5 in |
| Frame color | Black |
| Number of Ethernet ports | 0 |
| Number of USB ports | 2 |
| Number of RS-232 ports | 1 |
| Number of RS-422 ports | 1 |
| Number of RS-485 ports | 1 |
| Type of display | TFT |
| Number of colors of the display | 65536 |
| Number of grey-scales/blue-scales of display | 64 |
| Number of pixels, horizontal | 320 |
| Number of pixels, vertical | 240 |
| Degree of protection (IP), front side | IP65 |
Все характеристики
| Specifications | |
| Screen diagonal | 3.5 in |
| Number of pixels, horizontal | 320 |
| Number of pixels, vertical | 240 |
| Type of display | TFT |
| Frame color | Black |
| Number of Ethernet ports | 0 |
| Number of USB ports | 2 |
| Number of RS-232 ports | 1 |
| Number of RS-422 ports | 1 |
| Number of RS-485 ports | 1 |
| Number of colors of the display | 65536 |
| Number of grey-scales/blue-scales of display | 64 |
| Degree of protection (IP), front side | IP65 |
| Width of the front | 129.8 mm |
| Height of the front | 103.8 mm |
| Width of panel cutout | 119 mm |
| Height of panel cutout | 93 mm |
| Built-in depth | 52.8 mm |
| Product Weight (unpacked) | 320 g |
