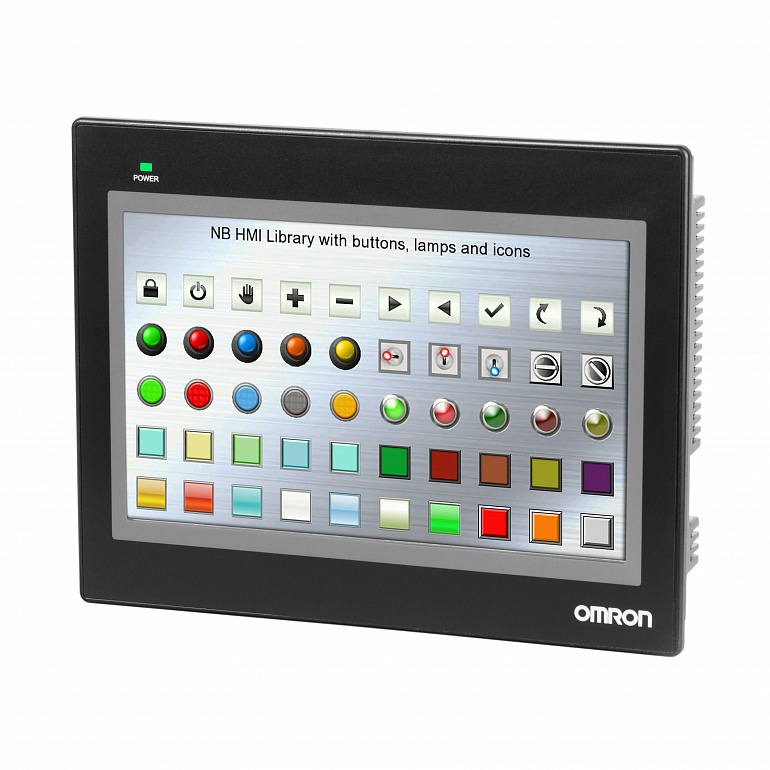

Touch screen HMI, 10.1 inch WSVGA (1024 x 600 pixel), TFT color, Ethernet + USB Host
Характеристики
| Screen diagonal | 10.1 in |
| Frame color | Black |
| Number of Ethernet ports | 1 |
| Number of USB ports | 2 |
| Number of RS-232 ports | 2 |
| Number of RS-422 ports | 1 |
| Number of RS-485 ports | 1 |
| Type of display | TFT |
| Number of colors of the display | 65536 |
| Number of grey-scales/blue-scales of display | 64 |
| Number of pixels, horizontal | 1024 |
| Number of pixels, vertical | 600 |
| Degree of protection (IP), front side | IP65 |
Все характеристики
| Specifications | |
| Screen diagonal | 10.1 in |
| Number of pixels, horizontal | 1024 |
| Number of pixels, vertical | 600 |
| Type of display | TFT |
| Frame color | Black |
| Number of Ethernet ports | 1 |
| Number of USB ports | 2 |
| Number of RS-232 ports | 2 |
| Number of RS-422 ports | 1 |
| Number of RS-485 ports | 1 |
| Number of colors of the display | 65536 |
| Number of grey-scales/blue-scales of display | 64 |
| Degree of protection (IP), front side | IP65 |
| Width of the front | 268.8 mm |
| Height of the front | 210.8 mm |
| Width of panel cutout | 258 mm |
| Height of panel cutout | 200 mm |
| Built-in depth | 54 mm |
| Product Weight (unpacked) | 1465 g |
