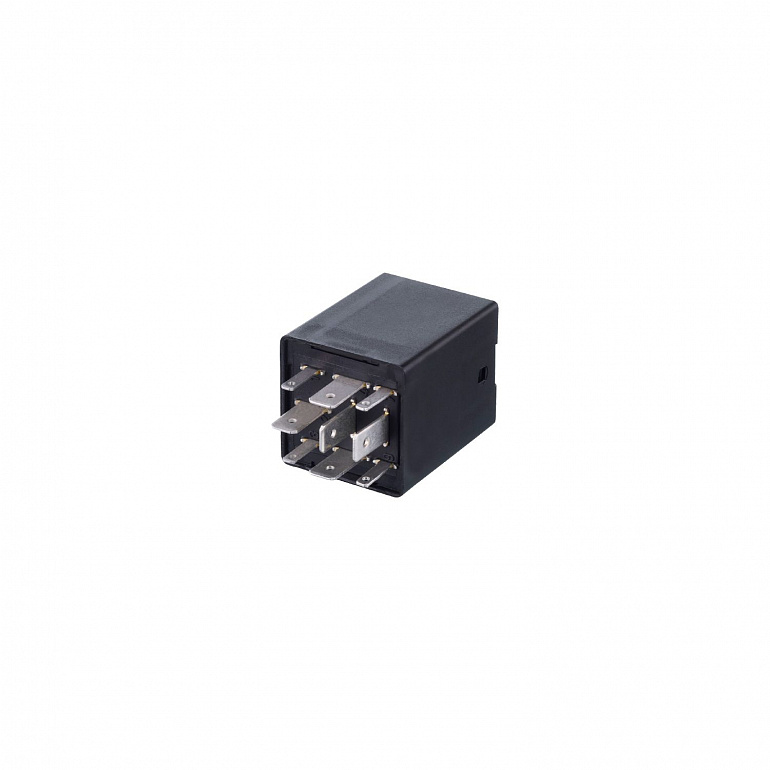

| UV resistant |
yes |
| Operating voltage |
8...32 DC |
| Nominal voltage DC |
12 / 24 |
| Current consumption |
< 25; (without motor control) |
| Power consumption |
0.6; (24 V; without motor control) |

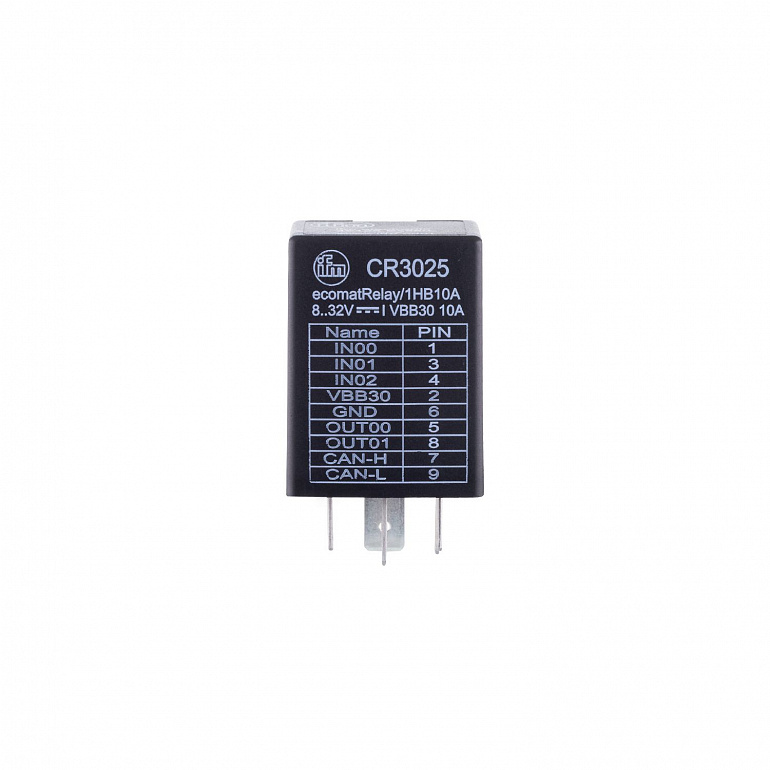

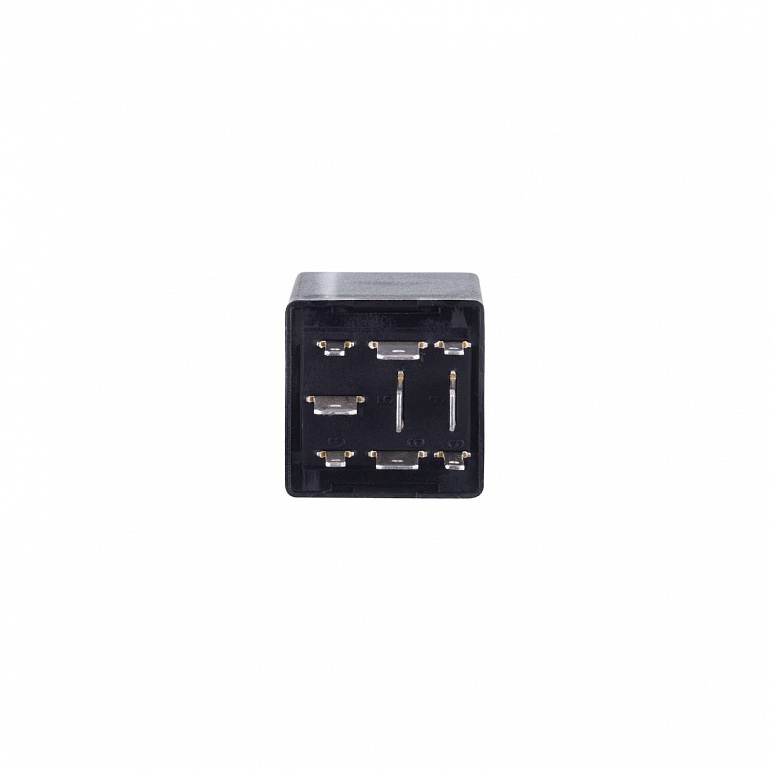

| Total number of inputs and outputs |
4 |
| Number of inputs and outputs |
Number of digital inputs: 3; Number of analog inputs: 3; Number of outputs with H-bridge: 1 |
| Total number of inputs |
3 |
| Number of digital inputs |
3 |
| Number of analog inputs |
3 |
| Analog input |
| input range [V] | 0...32 | | input resistance [Ω] | 66600 | | Resolution | 12 Bit | | Accuracy | ± 29 mV | | input frequency [Hz] | < 44 |
|
| Digital input |
| input range [V] | 0...32 | | Switching level high [V] | > 70 % VBB30 | | Switching level low [V] | < 30 % VBB30 | | Resolution | 12 Bit | | Accuracy | ± 29 mV | | input frequency [Hz] | < 44 | | input resistance [Ω] | 66600 |
|
| Total number of outputs |
1 |
| Permanent current rating of switching output DC |
10000 |
| Short-time current rating of switching output |
12000; (t ≤ 5 min.) |
| Number of outputs with H-bridge |
1 |
| Output |
| Voltage range [V] | 8...32 | | switching current [A] | 0...10 | | output frequency [Hz] | 0...25500 | | pulse/pause ratio | 0...1000 ‰ | | protective circuitry | inductive load; thermal protection | | current measurement [A] | 0...12 | | accuracy of the current measurement [A] | ± 3 | | Diagnostic functions | $Lasterkennung |
|
| Parameter setting options |
Baud rate; CAN parameter; Direction of rotation; Frequency output; node ID; pulse/pause ratio |
| Communication interface |
CAN |
| Number of CAN interfaces |
1 |
| Transmission rate |
20 kBit/s... 1 MBit/s |
| Protocol |
CANopen |
| Interface |
CAN Interface 2.0 A/B ISO 11898-5 |
| Factory settings |
| Transmission rate: 250 kBit/s | | node ID: 123 |
|
| Housing temperature |
-40...85 |
| Storage temperature |
-40...85 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
3500 |
| Protection |
IP 67; (when mounted) |
| Degree of soiling |
2 |
| UV radiation |
DIN EN ISO 4892-2 (procedure A, cycle B1, 1000 h) |
| Chemical media |
| ISO 16750-5 | AA, BA, BD, CC, DB, DC, DD |
|
| EMC |
| DIN EN 61000-6-2 noise immunity | | | DIN EN 61000-6-4 noise emission | | | CISPR25 automotive radiated emission | | | ISO 11452 automotive immunity to disturbances | | | FCC Part 15B Class A | | | ISO 7637-2 pulse 1 | severity level 4 / function state C (24 V) | | ISO 7637-2 pulse 2a | severity level 4 / function state A (24 V) | | ISO 7637-2 pulse 2b | severity level 4 / function state C (24 V) | | ISO 7637-2 pulse 3a | severity level 4 / function state A (24 V) | | ISO 7637-2 pulse 3b | severity level 4 / function state A (24 V) | | ISO 7637-2 pulse 4 | severity level 4 / function state A (24 V) | | ISO 7637-2 pulse 5 | severity level 3 / function state A (24 V) | | ISO 7637-2 pulse 4 | severity level 4 / function state A (12 V) |
|
| Continuous shock resistance |
| ISO 16750-3 | 30 g 6 ms / 24000 shocks |
|
| Vibration resistance |
| ISO 16750-3 Test VII | random, mounting place car body |
|
| MTTF |
308 |
| Weight |
77.8 |
| Housing |
rectangular |
| Type of mounting |
vertical |
| Dimensions |
30 x 30 x 40 |
| Material |
Housing: PA 6.6-GF30 |
| Information on service life |
| max. mating cycles of the crimp contacts: | 10 |
|
| Processor |
8-Bit; 40 MHz |
| Working memory |
4 KByte RAM |
| Mass storage |
60 KByte Flash |
| Non-volatile memory |
2 kByte |
| Pack quantity |
1 pcs. |
