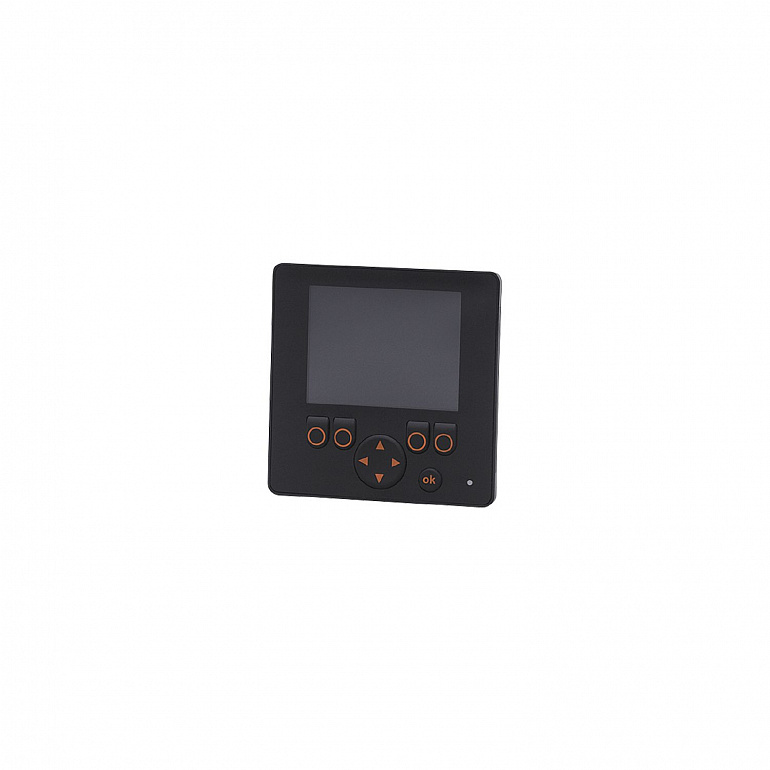

| Communication interface |
CAN |
| Operating elements |
| 5 | freely programmable backlit function keys | | 1 | Navigation key with pushbutton |
|
| Display type |
Color display |
| Operating voltage |
8...32 DC; (to SELV/PELV ; Informationen zu den Unterspannungsgrenzen entnehmen Sie bitte der Betriebsanleitung.) |
| Nominal voltage DC |
12 / 24 |
| Current consumption |
70; (24 V DC; background illumination: 100 %) |
| Power consumption |
1.68 |
| Overvoltage protection |
yes; (36 V: t ≤ 10 s) |
| Parameter setting options |
CODESYS 2.3 |
| PLC function to IEC 61131-3 |
yes |
| Communication interface |
CAN |
| Number of CAN interfaces |
1 |
| Transmission rate |
20 kBit/s... 1 MBit/s |
| Protocol |
CANopen; SAE J1939; free protocol |
| Profile |
CiA DS 301 Version 4; CiA DS 401 Version 1.4 |
| Interface |
CAN Interface 2.0 A/B ISO 11898 |
| Factory settings |
| Transmission rate: 250 kBits/s |
|
| Ambient temperature |
-20...70 |
| Storage temperature |
-30...80 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 65; (on the front; when mounted: IP 67) |
| Degree of soiling |
2; (before installation and when the device is replaced) |
| EMC |
| UN/ECE-R10 Noise emission and noise interference: | 100 V/m | | DIN EN 61000-6-2 ESD | | | DIN EN 61000-6-4 Burst | | | EN 61010-1 | | | ISO 7637-2 pulse 1 | severity level 4 / function state C (24 V) | | ISO 7637-2 pulse 2a | severity level 4 / function state A (24 V) | | ISO 7637-2 pulse 2b | severity level 4 / function state C (24 V) | | ISO 7637-2 pulse 3a | severity level 4 / function state A (24 V) | | ISO 7637-2 pulse 3b | severity level 4 / function state A (24 V) | | ISO 7637-2 pulse 4 | severity level 4 / function state A (24 V) | | ISO 7637-2 pulse 5 | severity level 3 / function state C (24 V) | | ISO 7637-2 pulse 4 | severity level 4 / function state A (12 V) |
|
| Continuous shock resistance |
| ISO 16750-3 | 30 g 6 ms / 24000 shocks |
|
| Vibration resistance |
| ISO 16750-3 Test VII | random, mounting place car body | | EN 60068-2-6 sine | 10...500 Hz / 10 cycles/axis, sine |
|
| Climatic tests |
| EN 60068-2-30 damp heat: cyclical | 55 °C upper temperature limit / 6 cycles | | EN 60068-2-78 damp heat: constant | 40 °C 93 % rH / test period 21 days |
|
| Salt spray test |
| EN 60068-2-52 Salt spray | test method 3 / motor vehicle |
|
| MTTF |
232 |
| Railway applications |
| DIN EN 50155 Pkt 13.3 | | | EN 50121-3-2 | | | EN 55016 | |
|
| Weight |
165 |
| Housing |
rectangular |
| Type of mounting |
panel/surf.; (Schalttafelausschnitt (Einbau): 81,5 x 81,5 mm; Schalttafelausschnitt (Aufbau): 53 x 53 mm) |
| Dimensions |
87.5 x 87.5 x 37.8 |
| Material |
housing: plastics black; Display: PET; Pushbuttons: silicone |
| Information on service life |
| Pushbuttons: | ≥ 750.000 Betätigungen | | Navigation key with pushbutton: | ≥ 750.000 Betätigungen | | Display LED lifetime: | ≥ 50.000 h (bei 25°C) |
|
| Display |
| Status LED | 1 LED, red/green |
|
| Operating elements |
| 5 | freely programmable backlit function keys | | 1 | Navigation key with pushbutton |
|
| Display resolution |
320 x 240 |
| Display type |
Color display |
| Display size |
2.8" |
| Aspect ratio |
4:3 |
| Display background illumination |
LED |
| Color depth |
8 Bit |
| Brightness |
< 300; (Display; adjustable: 0...100 %; In steps of: 1 %; Operating elements; $global) |
| Contrast ratio |
500:1 |
| Processor |
Freescale PowerPC 5517E; 50 MHz |
| Working memory |
592 kByte RAM |
| Mass storage |
1536 kByte Flash |
| Non-volatile memory |
1 kByte |
| Remarks |
| for further information please see the operating instructions |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12; coding: A |
