| Communication interface |
CAN |

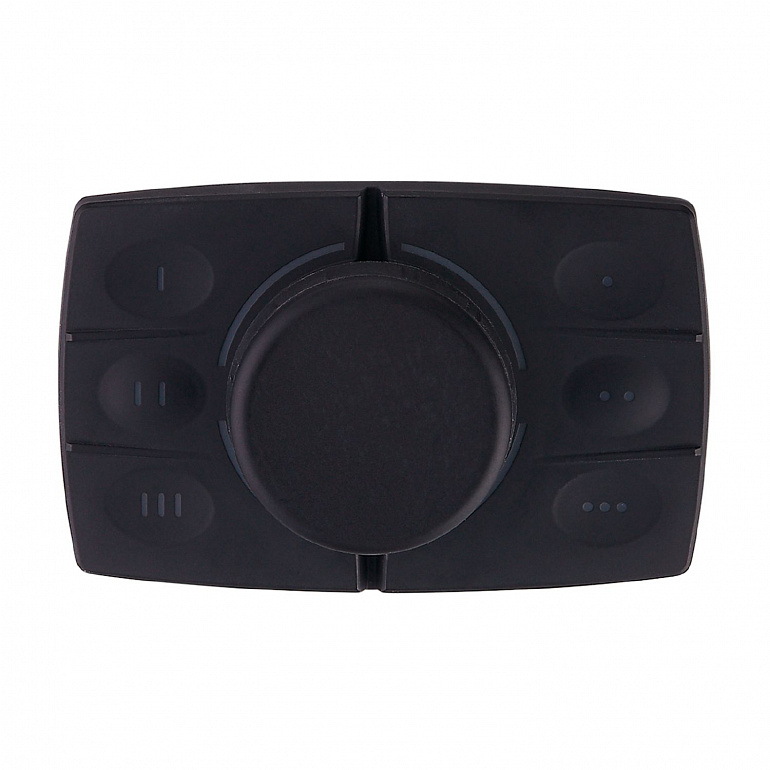

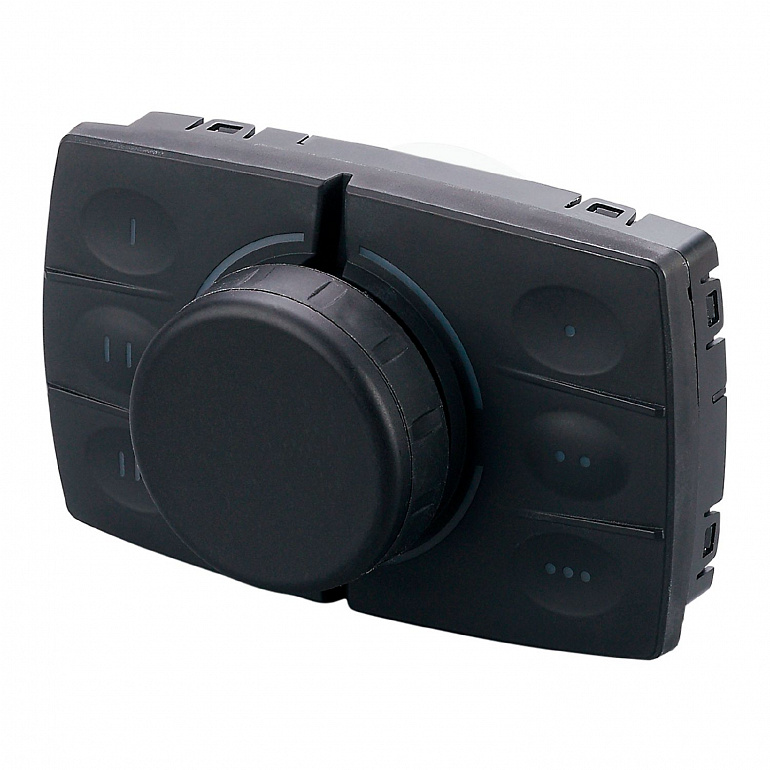

| Operating elements |
| 6 | freely programmable backlit function keys | | 1 | Drehknopf mit Tast- und Joystick-Funktion in zwei Achsen | | 24 stops per revolution |
|

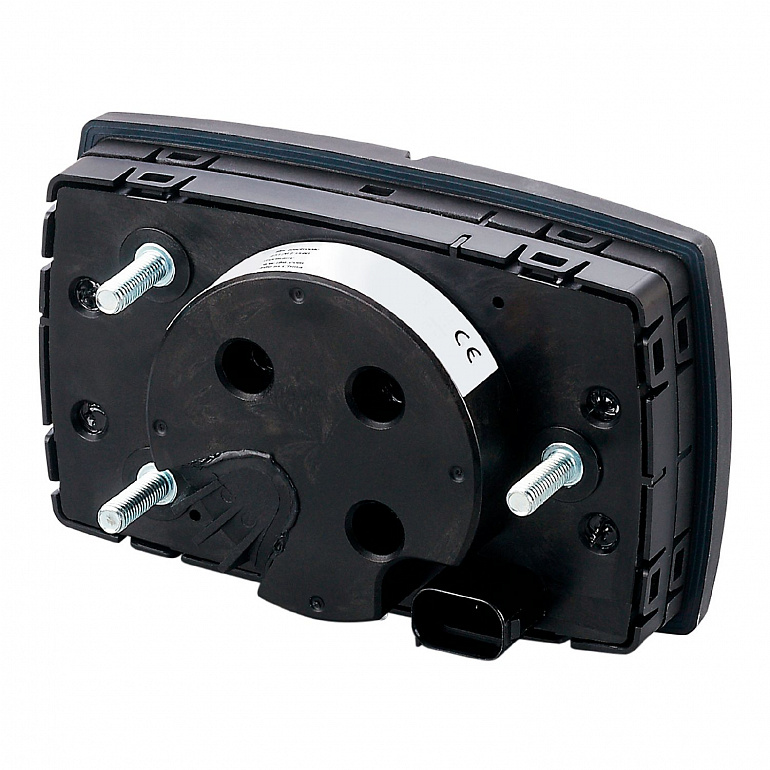

| Design |
installation in panels or panel cutouts |
| Operating voltage |
9...32 DC |
| Nominal voltage DC |
12 / 24 |
| Current consumption |
< 400; (13,5 V DC) |
| Reverse polarity protection |
yes |
| Communication interface |
CAN |
| Number of CAN interfaces |
1 |
| Protocol |
J1939 |
| Factory settings |
| Baud rate: 250 | | node ID: 135 |
|
| Ambient temperature |
-40...85 |
| Storage temperature |
-40...85 |
| Max. relative air humidity |
90 |
| Max. height above sea level |
4000 |
| Protection |
IP 65 |
| EMC |
| UN/ECE-R10 Noise emission and noise interference: | 100 V/m | | DIN EN 61000-6-2 ESD | | | DIN EN 61000-6-4 Burst | | | ISO 7637-2 pulse 1 | severity level 4 / function state C (24 V) | | ISO 7637-2 pulse 2a | severity level 4 / function state A (24 V) | | ISO 7637-2 pulse 2b | severity level 4 / function state C (24 V) | | ISO 7637-2 pulse 3a | severity level 4 / function state A (24 V) | | ISO 7637-2 pulse 3b | severity level 4 / function state A (24 V) | | ISO 7637-2 pulse 4 | severity level 4 / function state B (24 V) | | ISO 7637-2 pulse 5b | severity level 4 / function state A (24 V) | | ISO 7637-2 pulse 4 | severity level 4 / function state B (12 V) |
|
| Continuous shock resistance |
| ISO 16750-3 | 30 g 6 ms / 24000 shocks |
|
| Fast temperature changes |
| EN 60068-2-30 damp heat: cyclical | 55 °C upper temperature limit / 6 cycles | | EN 60068-2-78 damp heat: constant | 40 °C 93 % rH / test period 21 days |
|
| Vibration resistance |
| ISO 16750-3 Test VII | random, mounting place car body | | EN 60068-2-6 sine | 10...500 Hz / 10 cycles/axis, sine |
|
| Salt spray test |
| EN 60068-2-52 Salt spray | severity level 3 / motor vehicle |
|
| MTTF |
119 |
| Weight |
459.6 |
| Weight (without accessories and packaging) |
400 |
| Housing |
rectangular |
| Dimensions |
86 x 136 x 74.5 |
| Material |
housing: PC/ABS; silicone coating: PA66 transparent |
| Information on service life |
| Pushbuttons: | > 100000 activations | | knob (rotation by 360°): | > 100000 cycles | | knob (push function): | > 100000 activations | | knob (tilting per axis): | > 100000 activations |
|
| Display |
|
| Operating elements |
| 6 | freely programmable backlit function keys | | 1 | Drehknopf mit Tast- und Joystick-Funktion in zwei Achsen | | 24 stops per revolution |
|
| Pack quantity |
1 pcs. |
