| Note on radio approval |
| The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
|
| Operating voltage |
6...36 DC |
| Nominal voltage DC |
12 / 24 |
| Nominal voltage tolerance |
50 |
| Current consumption |
< 290; (24 V; sleep mode: <= 1 mA) |
| Number of inputs and outputs |
Number of analog inputs: 4; Number of digital outputs: 1 |
| Number of analog inputs |
4 |
| Analog input (voltage) |
0...15 |
| Resolution of analog input |
12 Bit |
| Number of digital outputs |
1 |
| Voltage range DC |
6...36 |
| Permanent current rating of switching output DC |
500 |
| Resolution |
16 bit |
| Resolution |
16 bit |
| Number of measurement axes |
3 |
| Measuring range acceleration |
± 16 |
| Resolution |
16 bit |
| Number of measurement axes |
3 |
| Measuring range vehicle yaw rate |
± 250 |
| Communication interface |
Bluetooth; GNSS; Mobile networks; WLAN |
| Transmission standard |
EDR 2.1; EDR 5.0 |
| Frequency band |
2,402 ... 2,48 GHz |
| Transmission power |
9.46; (Bluetooth 2.1 + EDR; 9,95 mW: Bluetooth 5.0; Antenna integrated) |
| Frequency band |
GPS; GLONASS; Beidou; Galileo; QZSS |
| Transmission standard |
GSM; GPRS; EDGE; UMTS; HSPA; 3G; 4G; LTE Cat-4 |
| Frequency band |
2G / GSM / GPRS / EDGE: 850 / 900 / 1800 / 1900; 3G / UMTS / HSPA: 850 (B5) / 900 (B8) / 1700 (B4) / 1900 (B2) / 2100 (B1); 4G / LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B12, B13, B19, B20, B25, B26, B28, B38, B39, B40, B41 |
| Note on interfaces |
|
| Transmission standard |
IEEE 802.11 a/b/g/n |
| Frequency band |
2,412 ... 2,472 GHz; 5,150 ... 5,350 GHz; 5,470 ... 5,725 GHz; 5,725 ... 5,785 GHz |
| Transmission power |
72.11; (2,412 ... 2,472 GHz; 91,62 mW: 5,150 ... 5,350 GHz; 58,08 mW: 5,470 ... 5,725 GHz; 24,43 mW: 5,725 ... 5,785 GHz; Antenna integrated) |
| Ambient temperature |
-40...75 |
| Protection |
IP 6K7; (with mounted connectors or protective caps) |
| EMC |
| EN 301489-1 | | | EN 301489-17 | | | EN 301489-19 | | | EN 301489-52 | | | EN IEC 61000-6-2 | | | EN ISO 13766-1 | | | EN 62311 | |
|
| Radio approval |
EN 301511, EN 300440, EN 301908-1, EN 301908-2, EN 301908-13, EN 300328, EN 303413 |
| Standard |
EN 62368-1; EN 301893; EN IEC 63000 |
| Weight |
254 |
| Material |
housing: PA black |
| Display |
| status | 2 x LED, multi-color |
|
| Processor |
Dual Core ARM Cortex A7 (650 MHz) |
| Working memory |
DDR3 RAM: 512 MB
FRAM: 32 KB |
| Mass storage |
2,5 GByte Flash |
| Real-time clock |
yes; UTC, battery buffered |
| Pack quantity |
1 pcs. |

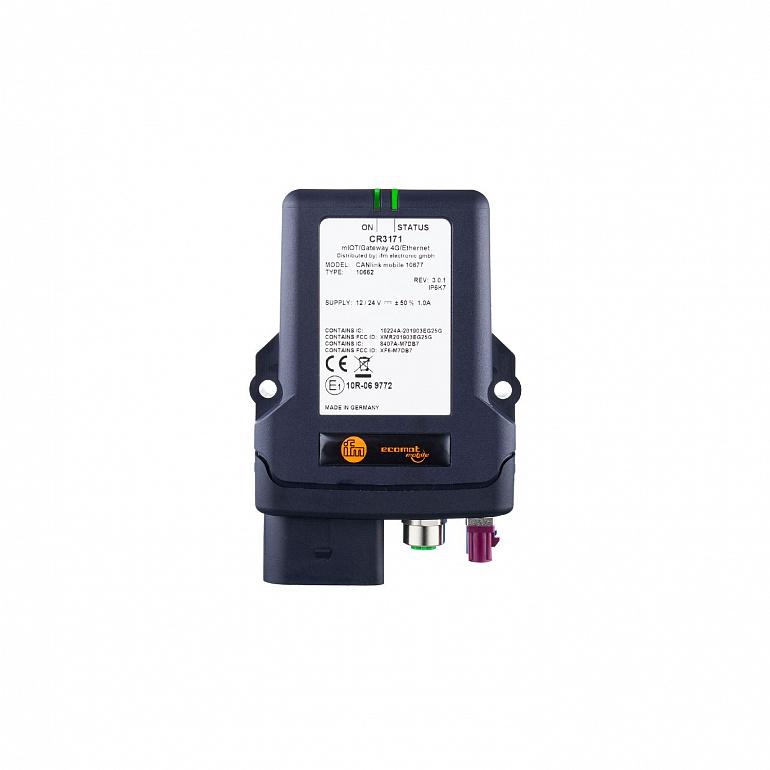

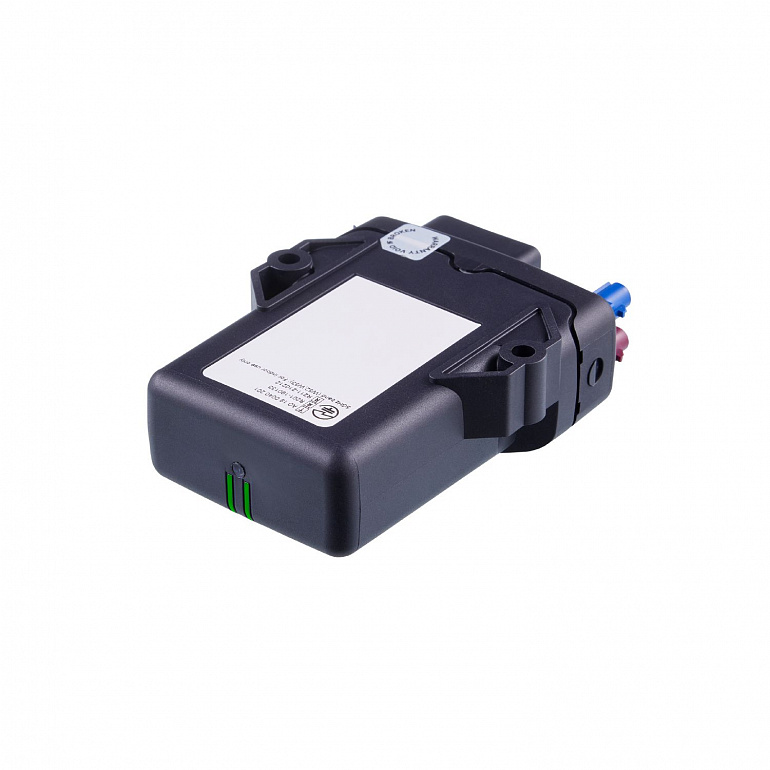

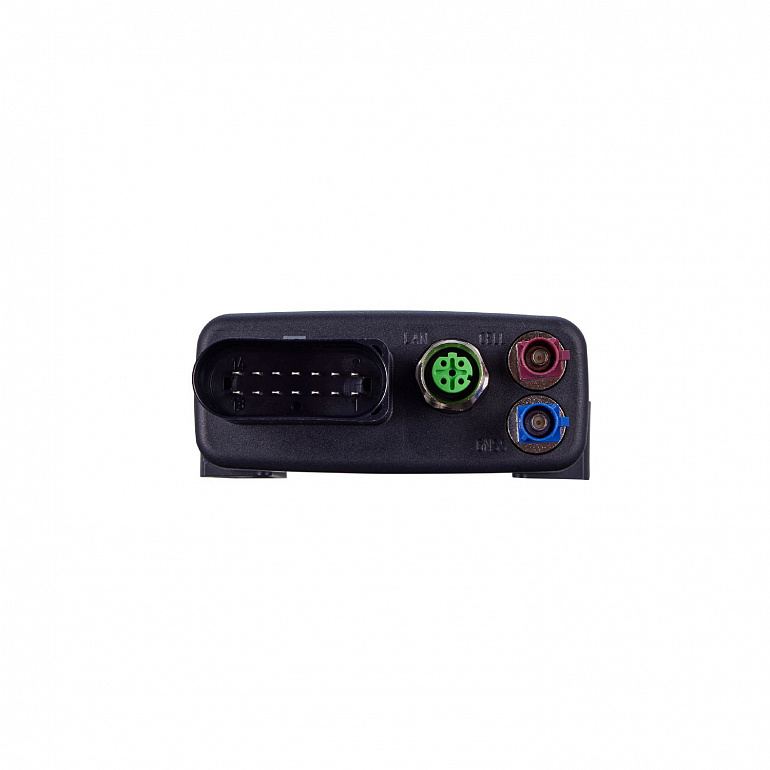

| voltage supply, CAN |
Connector: Micro Timer II |
| Ethernet |
Connector: M12; coding: D |
|
Connector: FAKRA C; Moulded body: claret violet |
|
Connector: FAKRA D; Moulded body: blue |
