| Radio approval for |
EU/RED; USA; Canada |
| Note on radio approval |
| The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
|
| Operating voltage |
8...32 DC |
| Nominal voltage DC |
12 / 24 |
| Nominal voltage tolerance |
50 |
| Nominal voltage tolerance 2 |
50 |
| Current consumption |
< 250; (Normal operation; sleep mode: < 500 µA) |
| Number of inputs and outputs |
Number of analog inputs: 3; Number of digital outputs: 1 |
| Number of analog inputs |
3 |
| Analog input (voltage) |
0...15 |
| Resolution of analog input |
12 Bit |
| Number of digital outputs |
1 |
| Voltage range DC |
6...36 |
| Permanent current rating of switching output DC |
500 |
| Resolution |
16 bit |
| Resolution |
16 bit |
| Sampling rate |
10 |
| Number of measurement axes |
3 |
| Measuring range acceleration |
± 16 |
| Resolution |
16 bit |
| Sampling rate |
10 |
| Number of measurement axes |
3 |
| Measuring range vehicle yaw rate |
± 250 |
| Communication interface |
CAN; Mobile networks |
| Number of CAN interfaces |
1 |
| Number of USB interfaces |
1 |
| Interface |
CAN Interface 2.0 A/B ISO 11898 |
| Note on interfaces |
|
| Transmission standard |
GSM; GPRS; EDGE; UMTS; HSPA; 3G; 4G; LTE Cat-4 |
| Frequency band |
GSM / GPRS / EDGE / 2G: 850 / 900 / 1800 / 1900; UMTS / HSPA / 3G: 850 (B5) / 900 (B8) / 1700 (B4) / 1900 (B2) / 2100 (B1); 4G / LTE Cat 4: 700 (B12, B17) / 750 (B13, B28) / 800 (B20) / 850 (B5) / 900 (B8) / 1700 (B4) 1800 (B3) / 1900 (B2) / 2100 (B1) / 2600 (B7) |
| Note on interfaces |
| SIM card onboard | | Antenna integrated |
|

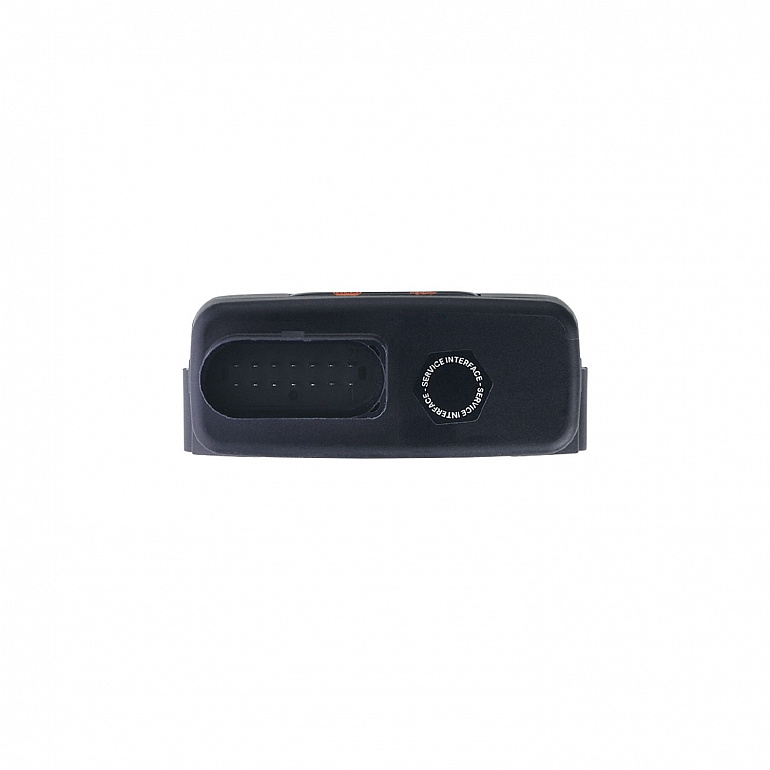

| Type of connector |
Mirco-AB |
| Usage type |
firmware update |
| Ambient temperature |
-40...85 |
| Protection |
IP 67 |
| Standard |
EN 61000-6-2; EN 61000-6-3; IEC 62368-1; UN/ECE-R10; EN ISO 13766-1; ISO 7637-2; IEC 60068-2-30; IEC 60068-2-6; IEC 60068-2-27; IEC 60068-2-31 |
| Weight |
233.7 |
| Housing |
rectangular |
| Type of mounting |
Backplane mounting |
| Dimensions |
123 x 86 x 35 |
| Material |
housing: PA black |
| Display |
| status | 2 x LED, multi-color |
|
| Processor |
ARM Cortex M4 based STM32 (168 MHz) |
| Working memory |
Program Flash: 1 MB
FRAM: 32 KB
SRAM: 1280 KB |
| Mass storage |
128 MB |
| Real-time clock |
yes; UTC, battery buffered |
| Pack quantity |
1 pcs. |
