| Operating voltage |
6...36 DC |
| Nominal voltage DC |
12 / 24 |
| Nominal voltage tolerance |
50 |
| Current consumption |
< 100; (Normal operation; sleep mode: < 1 mA) |
| Reverse polarity protection |
yes; (< 36 V DC) |
| Overvoltage protection |
yes; (< 36 V DC) |
| Internal resistance (Ri) |
20000 |
| Number of inputs and outputs |
Number of analog inputs: 2; Number of digital outputs: 1 |
| Number of analog inputs |
2 |
| Analog input (voltage) |
0...15 |
| Resolution of analog input |
12 Bit |
| Precision analog input |
± 1,0 |
| Number of digital outputs |
1 |
| Voltage range DC |
6...36 |
| Permanent current rating of switching output DC |
500 |
| Switching frequency DC |
< 10 |
| Sampling rate |
20 |
| Communication interface |
CAN; WLAN; Bluetooth |
| Number of CAN interfaces |
2 |
| Transmission standard |
EDR 2.1; EDR 5.0 |
| Transmission power |
22.39 |
| Interface |
CAN Interface 2.0 A/B ISO 11898 |
| Transmission standard |
IEEE 802.11 a/b/g/n |
| Frequency band |
2,4 GHz; 5 GHz |
| Transmission power |
53.23; (2,4 GHz; 22,39 mW: 5 GHz; Antenna integrated) |
| Ambient temperature |
-40...85 |
| Protection |
IP 6K7 |
| EMC |
| EN 301489-1 | | | EN 301489-17 | | | EN IEC 61000-6-2 | | | EN ISO 13766-1 | |
|
| Standard |
EN 62368-1; EN 62311; EN 300328; EN 300440; EN 301893; EN IEC 63000 |
| Weight |
142.6 |
| Material |
housing: PA6/6.6 black |
| Display |
| status | 2 x LED, multi-color |
|
| Processor |
ARM Cortex M7 based STM32 (400 MHz) |
| Working memory |
Program Flash: 1 MB
FRAM: 8 KB
SRAM: 564 KB |
| Mass storage |
16 MB |
| Pack quantity |
1 pcs. |
|

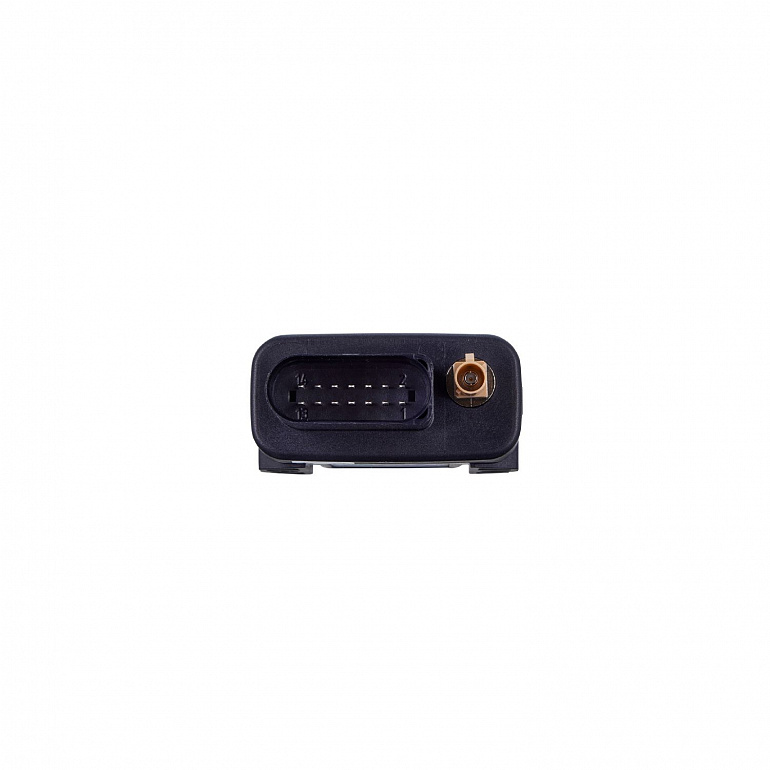

Connector: FAKRA I |
