| Application |

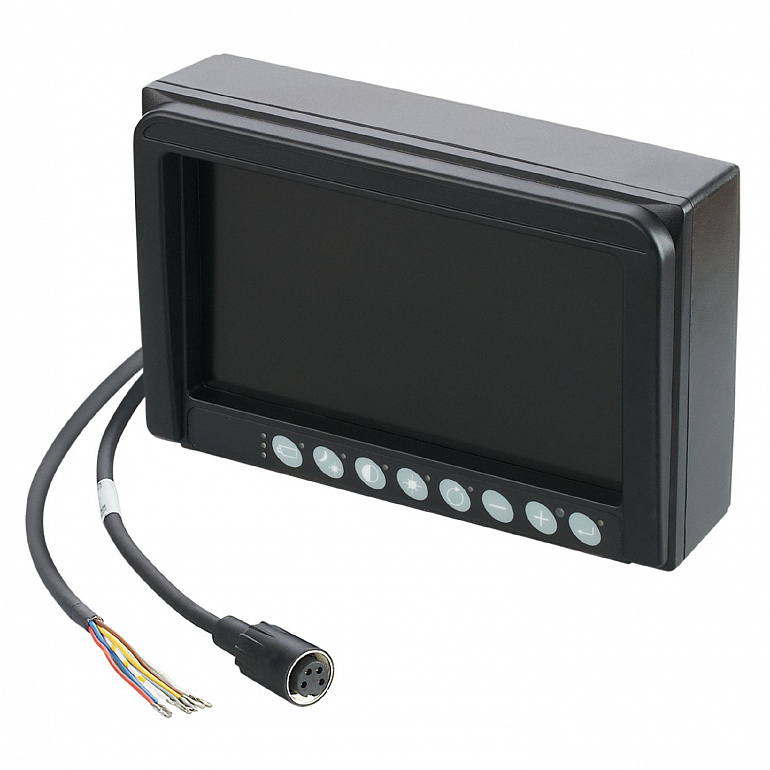

Monitor for up to 1 O2M2xx / O3M2xx camera |
| Operating voltage |
12...32 DC; (± 10%) |
| Overvoltage protection |
yes |
| Power supply for camera |
2000; (± 10%) |
| Video input |
1 Vtt, 75 Ω, PAL 50 Hz, 4,43 MHz color sub carr |
| Ambient temperature |
-40...85 |
| Storage temperature |
-40...125 |
| Storage humidity |
< 75; (relative humidity) |
| Shelf life |
24 |
| Protection |
IP 67 |
| Shock resistance |
| 15,3 G(rms) Frequency range 24...2000 Hz | | PSD 0,04...0,10 g²/Hz |
|
| Weight |
1022.5 |
| Material |
housing: ABS black; fixture: aluminum black |
| Display type |
Color display |
| Display size |
7" |
| Remarks |
| Spannungsbereich auf dem Typenschild beachten | | Ältere Versionen des Gerätes verwenden einen | | Spannungsbereich von 18...30 VDC (Revisionsnr. AA) |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M16; coding: A |
