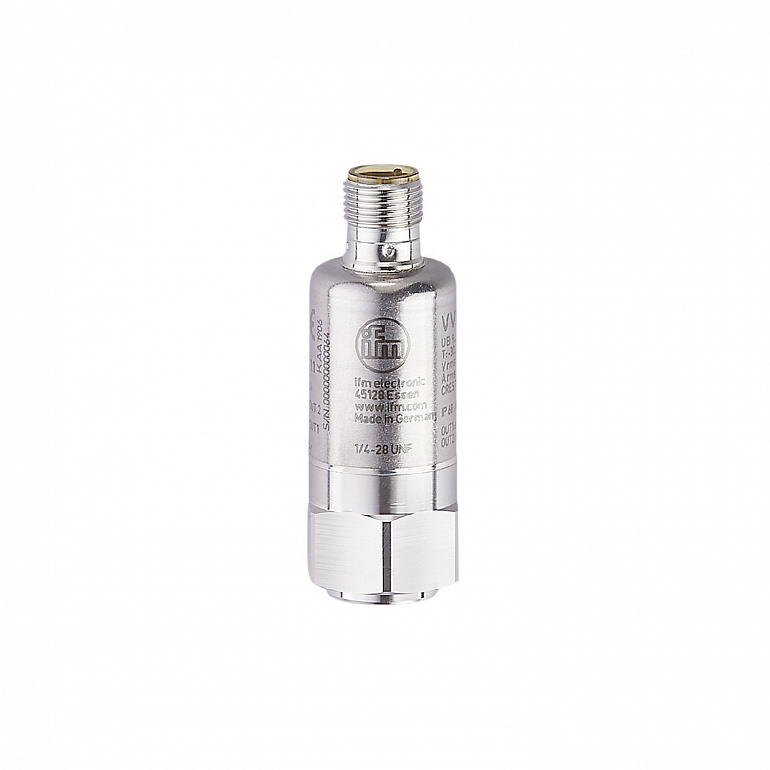

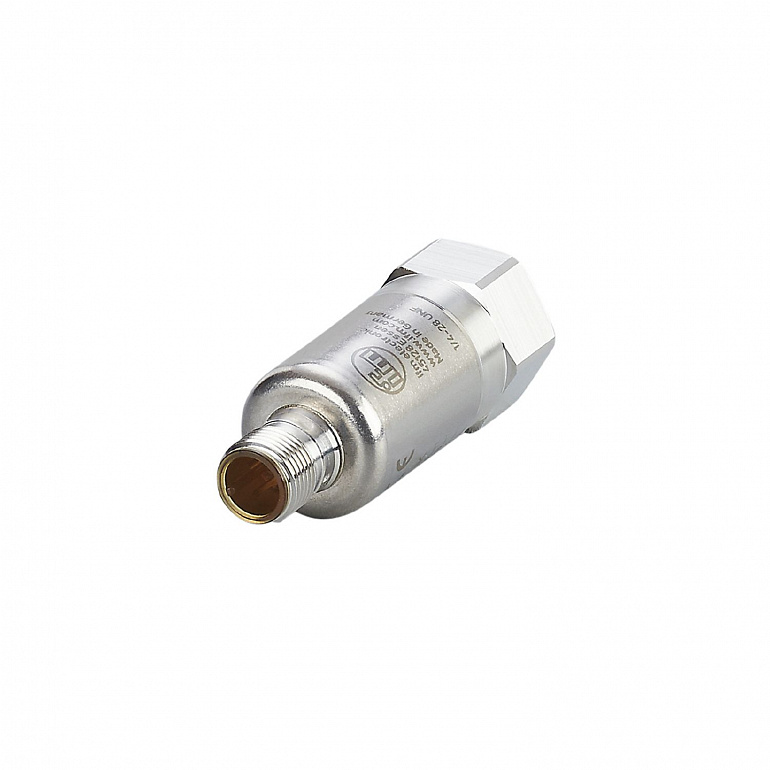

| Product characteristics |
|
| Frequency range |
2...10000 |
| Measuring principle |
capacitive |
| v-RMS |
|
| Measuring range of vibration |
0...45 |
| Set point SP |
0.2...45 |
| Reset point rP |
0...44.8 |
| In steps of |
0.2 |
| a-Peak / a-RMS |
|
| Measuring range of vibration |
<table><tr><td>0...50 g</td><td>0...490.3 m/s²</td></tr></table> |
| Set point SP |
<table><tr><td>0.2...50 g</td><td>2...490.3 m/s²</td></tr></table> |
| Reset point rP |
<table><tr><td>0...49.8 g</td><td>0...488.3 m/s²</td></tr></table> |
| In steps of |
<table><tr><td>0.2 g</td><td>2 m/s²</td></tr></table> |
| Application |
|
| Application |
Big machines, performance > 300 kW, speed > 600 rpm |
| Electrical data |
|
| Operating voltage |
18...30 DC |
| Current consumption |
< 50 |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of sensor |
Microelectromechanical system (MEMS) |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Outputs |
|
| Output signal |
switching signal; IO-Link |
| Electrical design |
PNP/NPN; (configurable) |
| Number of digital outputs |
2 |
| Output function |
normally open / closed |
| Max. voltage drop switching output DC |
2 |
| Max. current load per output |
100 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring/setting range |
|
| Note on setpoint SP |
<table><tr><td>configurable </td></tr></table> |
| Frequency range |
2...10000 |
| Measuring principle |
capacitive |
| Number of measurement axes |
1 |
| Crest |
|
| Measuring range of vibration |
1...50 |
| Set point SP |
2...50 |
| Reset point rP |
1...49 |
| In steps of |
1 |
| Temperature measurement |
|
| Measuring range |
-30...80 |
| Resolution |
0.1 |
| Set point SP |
-28...80 |
| Reset point rP |
-30...78 |
| In steps of |
2 |
| Accuracy / deviations |
|
| Accuracy |
± 2,5 K + (0,2 x (Umgebungstemperatur - Oberflächentemperatur)) |
| Linearity deviation |
2 % |
| Software / programming |
|
| Parameter setting options |
Software |
| Diagnostic functions |
self-test |
| Interfaces |
|
| Communication interface |
IO-Link |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9: 2013-07 |
| Profiles |
<table><tr><td>BLOB</td><td>Binary Large Object transfer</td></tr><tr><td>Common - I&D</td><td>Identification and Diagnosis</td></tr><tr><td>Function</td><td>Measurement data, standard resolution</td></tr></table> |
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
10 |
| Process data binary |
2 |
| IO-Link functions (acyclical) |
filter for v-RMS, a-RMS, a-Peak; Hysteresis; window; Switch points; switching logic |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>Status A (COM2)</td><td>1255</td></tr><tr><td>Status B (COM2 / COM3)</td><td>1368</td></tr></table> |
| Note |
<table><tr><td> For further information please see the IODD PDF file at "Downloads"</td></tr></table> |
| Status A (COM2) |
|
| Transmission type |
COM2 (38,4 kBaud) |
| Min. process cycle time |
11.6 |
| Status B (COM2 / COM3) |
|
| Transmission type |
COM3 (230,4 kBaud) |
| Min. process cycle time |
3.6 |
| Operating conditions |
|
| Ambient temperature |
-30...80 |
| Storage temperature |
-30...80 |
| Protection |
IP 67; IP 68; IP 69K |
| Tests / approvals |
|
| EMC |
<table><tr><td>2014/30/EU</td><td></td></tr><tr><td>DIN EN 61000-6-2</td><td></td></tr><tr><td>DIN EN 61000-6-3</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>50 g 11 ms</td></tr><tr><td></td><td>500 g 1 ms</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-6</td><td>20 g / 10...3000 Hz</td></tr></table> |
| MTTF |
299 |
| UL approval |
<table><tr><td>Ta</td><td>-30...70 °C</td></tr><tr><td>UL approval number</td><td>L002 </td></tr></table> |
| Mechanical data |
|
| Weight |
116 |

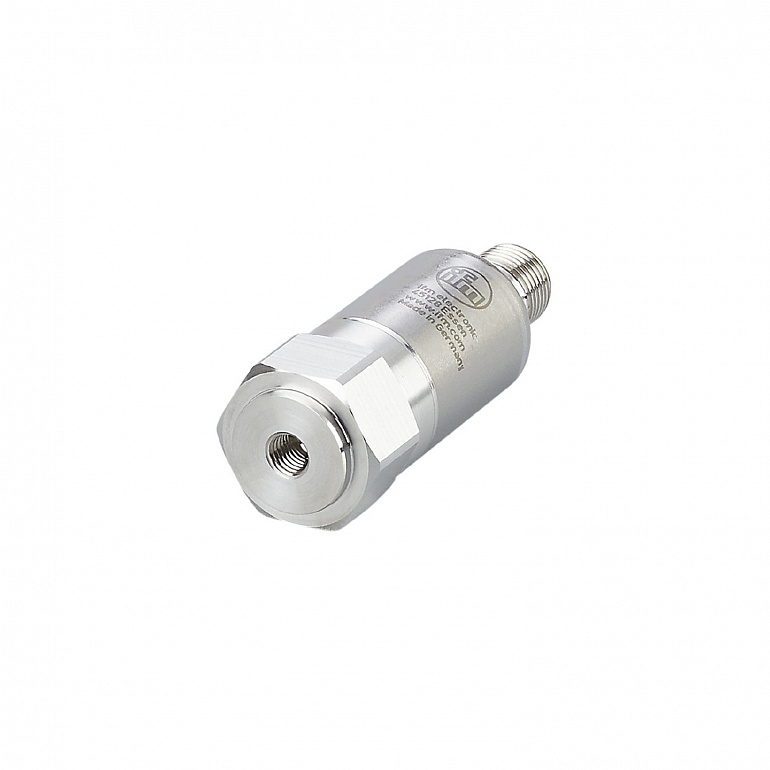

| Housing |
tubular |
| Type of mounting |
set screw |
| Dimensions |
Ø 22 / L = 63.55 |
| Material |
housing: stainless steel (1.4404 / 316L) |
| Tightening torque |
8 |
| Accessories |
|
| Items supplied |
<table><tr><td>set screw: 1 x (1/4" 28 UNF / M8)</td></tr><tr><td>set screw: 1 x (1/4"28 UNF x 5/8" DIN916)</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
