| Product characteristics |
|
| Measuring range of vibration |
0...25; (RMS) |
| Frequency range |
10...1000 |
| Application |
|
| Application |

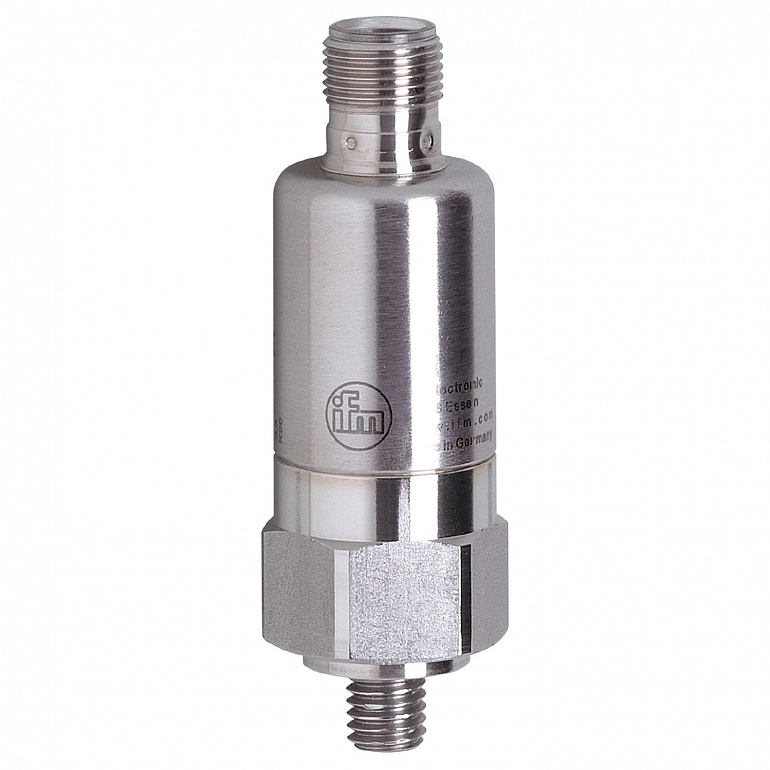

Vibration transmitter to ISO 10816 |
| Electrical data |
|
| Operating voltage |
9.6...32 DC |
| Protection class |
III |
| Type of sensor |
Microelectromechanical system (MEMS) |
| Inputs / outputs |
|
| Total number of inputs and outputs |
1 |
| Outputs |
|
| Analog current output |
4...20 |
| Max. load |
< (Ub - 9,6 V) x 50; Ub = 24 V: 720 |
| Measuring/setting range |
|
| Measuring range of vibration |
0...25; (RMS) |
| Frequency range |
10...1000 |
| Number of measurement axes |
1 |
| Accuracy / deviations |
|
| Measuring error |
< ± 3 |
| Repeatability |
< 0,5; (% of the final value) |
| Linearity deviation |
0,25 % |
| Operating conditions |
|
| Ambient temperature |
-20...60 |
| Protection |
IP 67; (when used outside the hazardous area: IP 69K) |
| Tests / approvals |
|
| ATEX marking |
II 3D Ex tc IIIC T110°C Dc X |
| EMC |
<table><tr><td>EN 61000-6-2</td><td></td></tr><tr><td>EN 61000-6-3</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>50 g 11 ms</td></tr><tr><td></td><td>500 g 1 ms</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-6</td><td>20 g / 10...3000 Hz</td></tr></table> |
| MTTF |
868 |
| Mechanical data |
|
| Weight |
139 |
| Type of mounting |
set screw |
| Material |
stainless steel (1.4404 / 316L) |
| Tightening torque |
8 |
| Accessories |
|
| Items supplied |
<table><tr><td>set screw: 1 x (1/4"-28 UNF / M8 x 1,25 mm)</td></tr><tr><td>set screw: 1 x (1/4"-28 UNF)</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
