| Product characteristics |
|
| Measuring range of vibration |
0...50; (RMS) |
| Frequency range |
10...1000 |
| Application |
|
| Application |

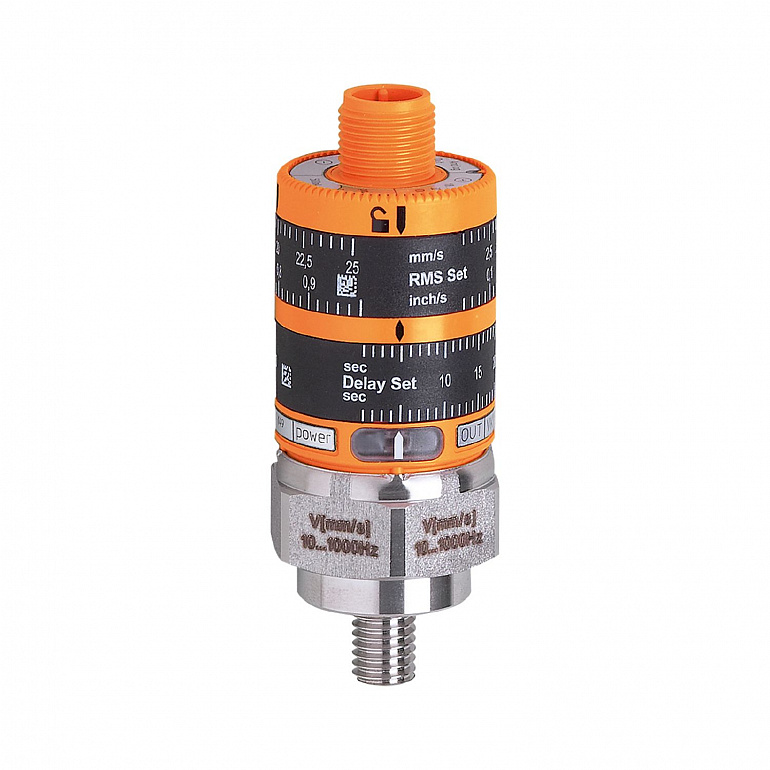

Vibration monitor to DIN ISO 10816 |
| Electrical data |
|
| Operating voltage |
18...32 DC |
| Current consumption |
< 50 |
| Protection class |
III |
| Type of sensor |
Microelectromechanical system (MEMS) |
| Inputs / outputs |
|
| Total number of inputs and outputs |
2 |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analog outputs: 1 |
| Outputs |
|
| Output signal |
switching signal; analog signal |
| Electrical design |
PNP |
| Number of digital outputs |
1 |
| Output function |
normally closed |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
500 |
| Number of analog outputs |
1 |
| Analog current output |
4...20 |
| Max. load |
500 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring/setting range |
|
| Measuring range of vibration |
0...50; (RMS) |
| Frequency range |
10...1000 |
| Number of measurement axes |
1 |
| Accuracy / deviations |
|
| Measuring error |
< ± 3 |
| Linearity deviation |
0,25 % |
| Reaction times |
|
| Response time |
1...60 |
| Software / programming |
|
| Adjustment of the switch point |
setting ring |
| Operating conditions |
|
| Ambient temperature |
-25...80 |
| Note on ambient temperature |
<table><tr><td>UL application: < 80 °C</td></tr></table> |
| Storage temperature |
-25...80 |
| Protection |
IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 61000-4-2 ESD</td><td>4 kV CD / 8 kV AD</td></tr><tr><td>EN 61000-4-3 HF radiated</td><td>10 V/m</td></tr><tr><td>EN 61000-4-4 Burst</td><td>2 kV</td></tr><tr><td>EN 61000-4-6 HF conducted</td><td>10 V</td></tr></table> |
| Shock resistance |
<table><tr><td></td><td>400 g</td></tr></table> |
| MTTF |
510 |
| Mechanical data |
|
| Weight |
115 |
| Type of mounting |
M8 x 1,25 |
| Material |
PBT; PC; FKM; stainless steel (1.4404 / 316L) |
| Tightening torque |
15 |
| Displays / operating elements |
|
| Display |
<table><tr><td>Power</td><td>LED, green</td></tr><tr><td>Switching status</td><td>LED, yellow</td></tr></table> |
| With scale |
yes |
| Operating elements |
<table><tr><td>setting ring</td><td>setting ring</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M12; coding: A |
