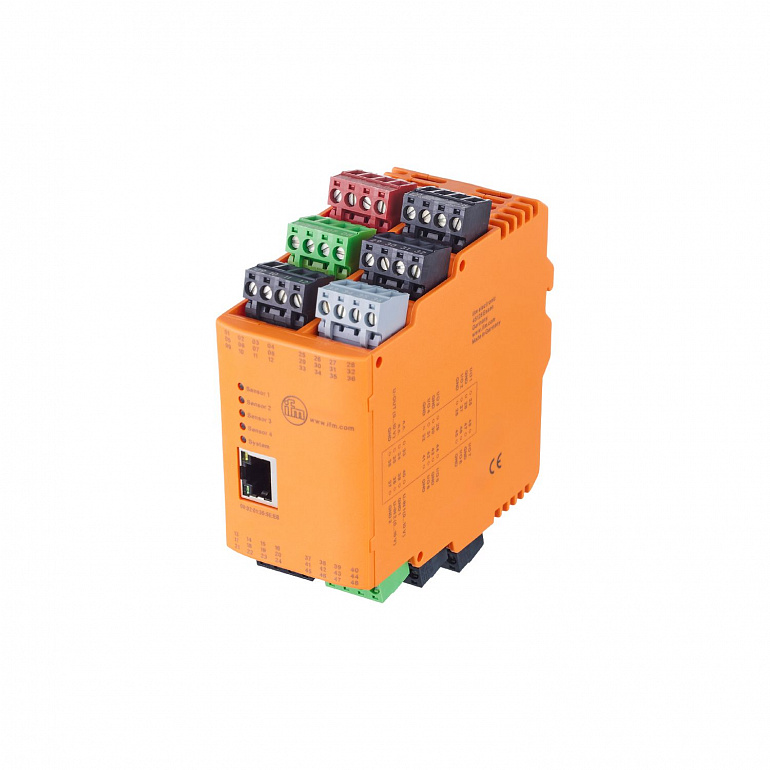

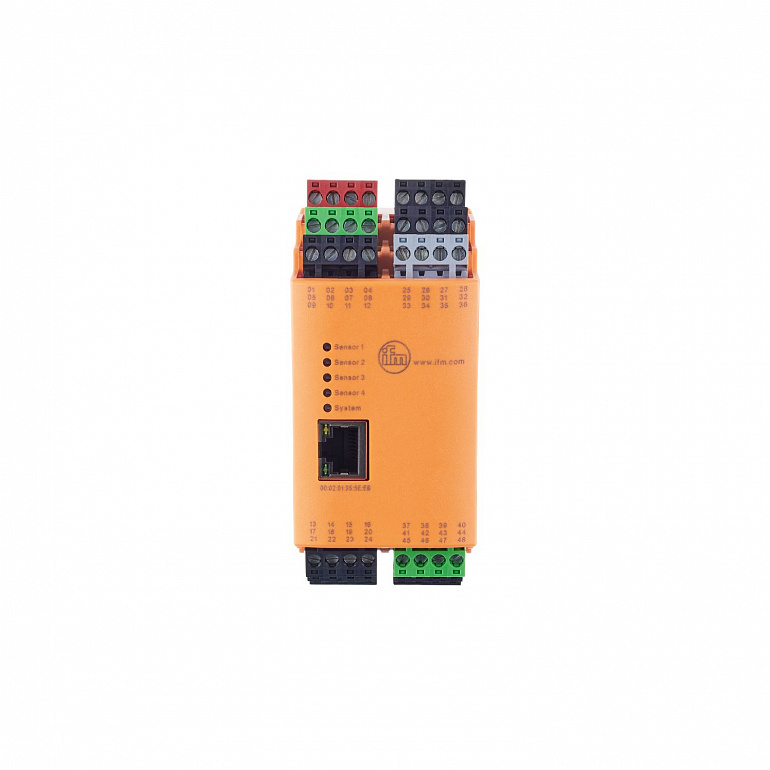

| Product characteristics |
|
| Frequency range |
0.1...12000 |
| Communication interface |
Ethernet |
| Application |
|
| Design |
housing for DIN rail mounting, parameter setting via PC software, VES004 |
| Application |
continuous vibration monitoring |
| Electrical data |
|
| Operating voltage tolerance |
20 |
| Operating voltage |
24 DC; (when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric) |
| Current consumption |
200; (24 V) |
| Protection class |
III |
| Inputs / outputs |
|
| Total number of inputs and outputs |
16; (configurable) |
| Number of inputs and outputs |
Number of digital inputs: 8; Number of analog inputs: 2; Number of dynamic inputs: 4; Number of digital outputs: 10; Number of analog outputs: 1 |
| Inputs |
|
| Total number of inputs |
10 |
| Number of digital inputs |
8; (configurable) |
| Input circuit of digital inputs |
HTL |
| Number of analog inputs |
2 |
| Analog input (current) |
4...20 |
| Resolution of analog input |
12 |
| Number of dynamic inputs |
4 |
| Dynamic input - signal |
0...10 mA / IEPE / 4...20 mA |
| Dynamic input - resolution |
16 |
| Dynamic input - frequency range |
0,1...10000 |
| Dynamic input - sampling rate |
100 |
| Outputs |
|
| Total number of outputs |
10 |
| Output signal |
switching signal; analog signal |
| Electrical design |
PNP |
| Number of digital outputs |
10; (configurable) |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
100 |
| Number of analog outputs |
1; (configurable) |
| Analog current output |
0...22; (0...10 V) |
| Max. load |
500 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring/setting range |
|
| Frequency range |
0.1...12000 |
| Interfaces |
|
| Communication interface |
Ethernet |
| Protocol |
TCP/IP |
| Operating conditions |
|
| Ambient temperature |
0...70 |
| Storage temperature |
0...70 |
| Protection |
IP 20 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN IEC 61000-6-2</td><td></td></tr><tr><td>EN IEC 61000-6-4</td><td></td></tr></table> |
| MTTF |
89 |
| UL approval |
<table><tr><td>Ta</td><td>70 °C</td></tr><tr><td>Enclosure type</td><td>Type 1 </td></tr><tr><td>voltage supply</td><td>Limited Voltage/Current </td></tr></table> |
| Mechanical data |
|
| Weight |
460.6 |

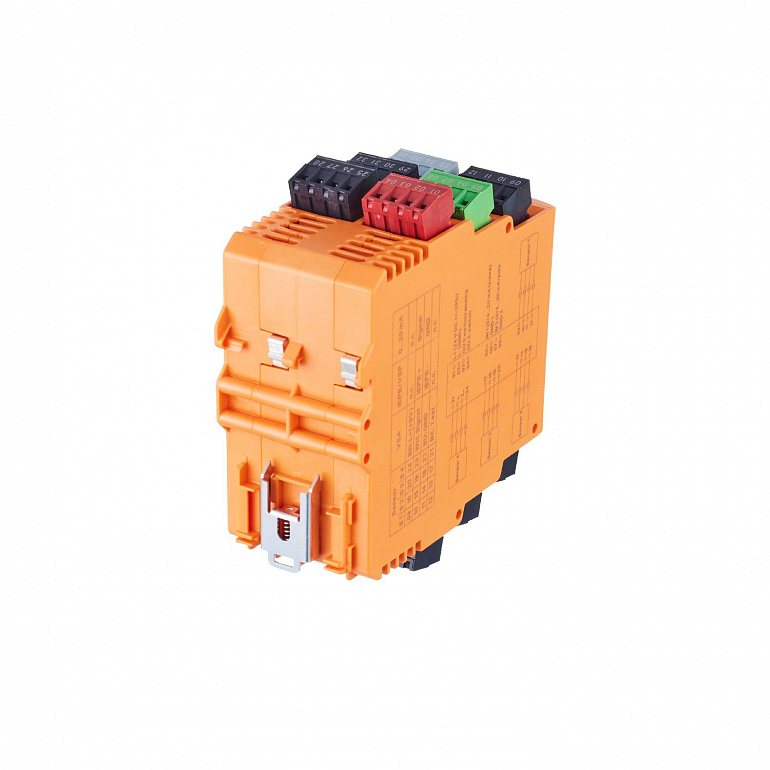

| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
114.2 x 50 x 105.3 |
| Material |
PA |
| Data memory |
|
| History memory |
yes |
| Data memory buffered |
yes |
| Data memory type |
ring memory; FIFO |
| Real-time clock |
yes |
| Memory location |
internal |
| Memory interval |
min. 1 min |
| Memory size |
881664 data records |
| Accessories |
|
| Accessories (optional) |
<table><tr><td>cross-over Ethernet patch cable for the direct connection to the PC</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Combicon: ; Maximum cable length: 250 m |
