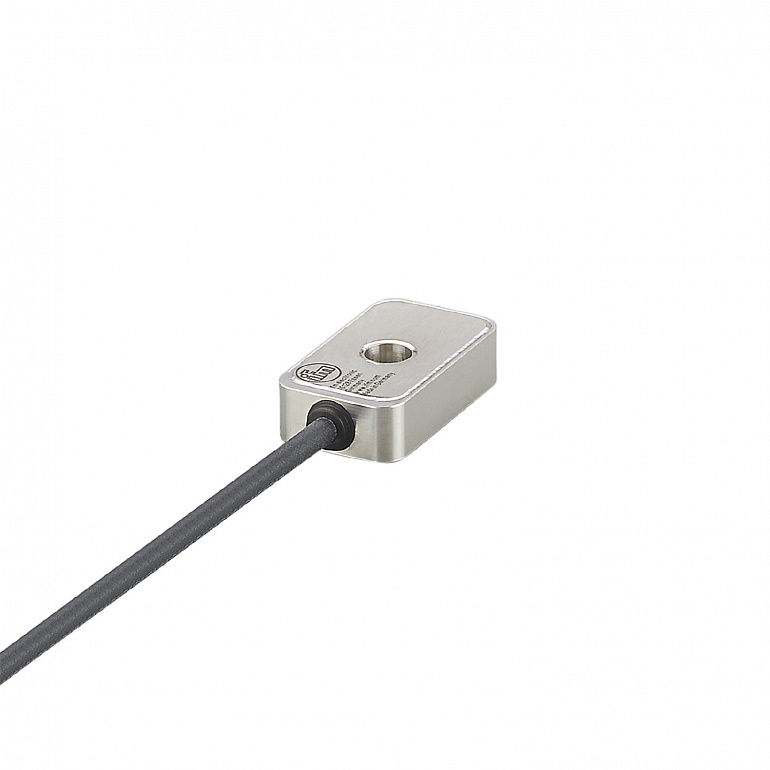

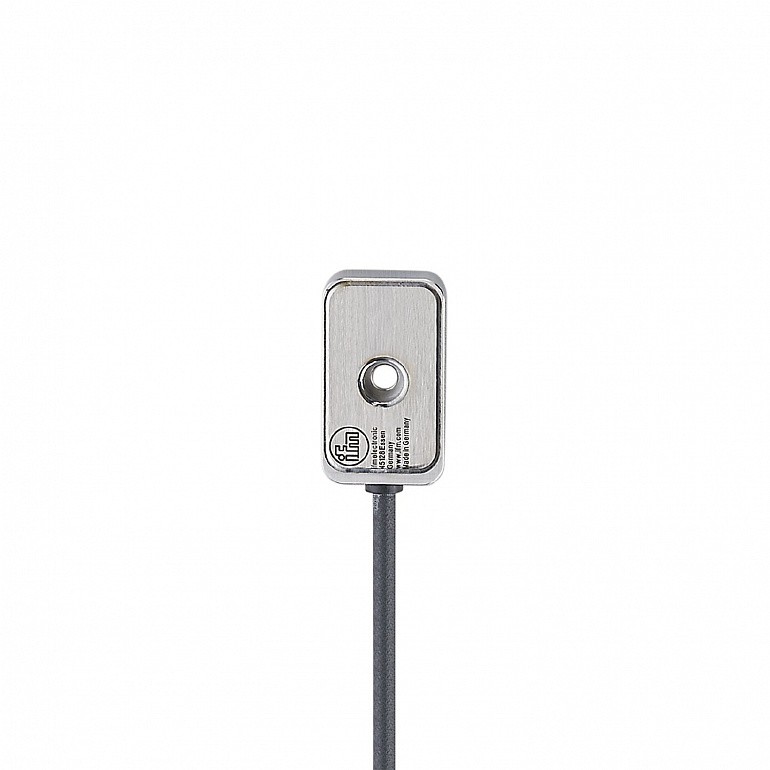

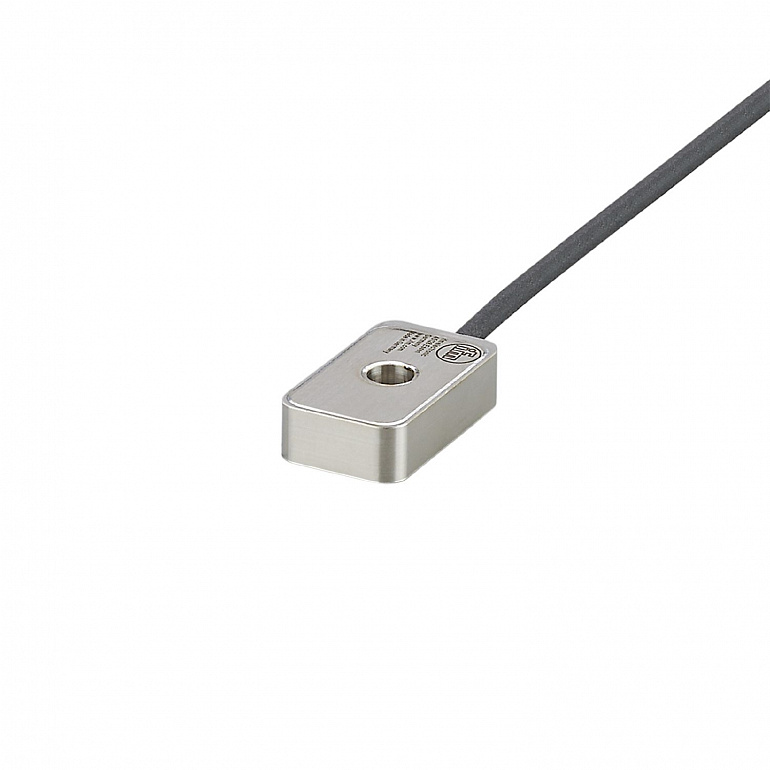

| Product characteristics |
|
| Measuring range of vibration |
-40...40 |
| Frequency range |
0...4500 |
| Measuring principle |
capacitive |
| Application |
|
| System |
screened cable; Drag chain suitability |
| Electrical data |
|
| Bias voltage DC |
11...16 |
| Operating current |
4...6 |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of sensor |
Microelectromechanical system (MEMS) |
| Measuring/setting range |
|
| Measuring range of vibration |
-40...40 |
| Frequency range |
0...4500 |
| Measuring principle |
capacitive |
| Max. transverse sensitivity |
5 |
| Number of measurement axes |
3 |
| Accuracy / deviations |
|
| Accuracy |
0...3 kHz: +/- 10 %
3...4.5 kHz: 3 dB |
| Measuring sensitivity |
100 mV/g |
| Linearity deviation |
2 |
| Operating conditions |
|
| Ambient temperature |
-30...85 |
| Storage temperature |
-30...100 |
| Protection |
IP 67; IP 68; IP 69K |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 61000-6-2</td><td></td></tr><tr><td>DIN EN 61000-6-3</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>50 g 11 ms</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-6</td><td>20 g / 10...3000 Hz</td></tr></table> |
| MTTF |
529 |
| UL approval |
<table><tr><td>Ta</td><td>≤ 70 °C</td></tr><tr><td>Enclosure type</td><td>1 </td></tr><tr><td>voltage supply</td><td>Limited Voltage/Current </td></tr><tr><td>UL approval number</td><td>L003 </td></tr><tr><td>File number UL</td><td>E251902 </td></tr></tab |
| Mechanical data |
|
| Weight |
427.6 |
| Type of mounting |
mounting screw |
| Dimensions |
26.2 x 47.3 x 11.6 |
| Material |
housing: stainless steel (1.4404 / 444) |
| Tightening torque |
3.5 |
| Drag chain suitability |
<table><tr><td>Bending radius for flexible applications</td><td>min. 10 x cable diameter</td></tr><tr><td>Bending radius for fixed installation</td><td>min. 4 x cable diameter</td></tr></table> |
| Accessories |
|
| Items supplied |
<table><tr><td>socket head screw: 1 x (M5 x 12 mm)</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
