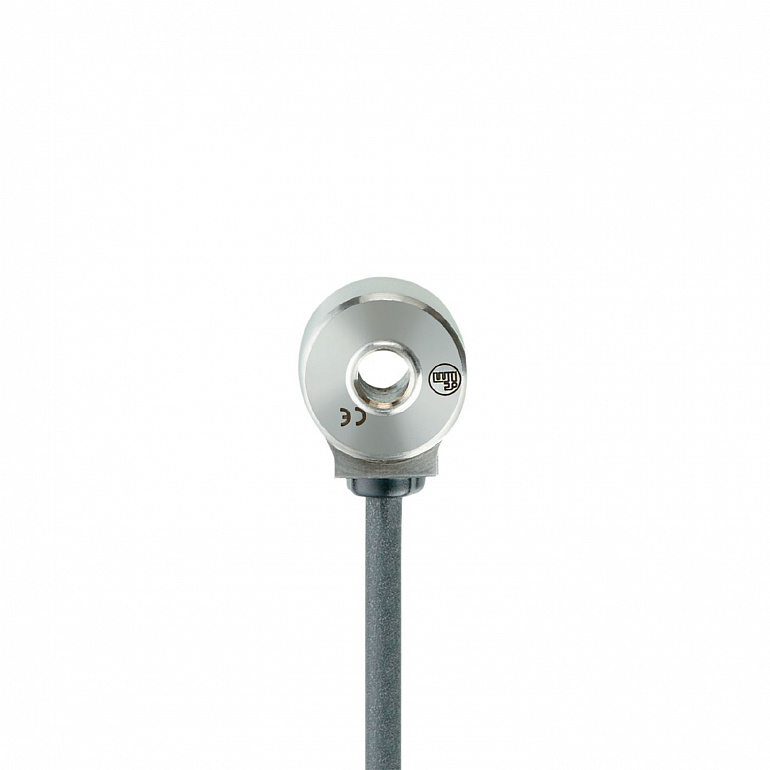

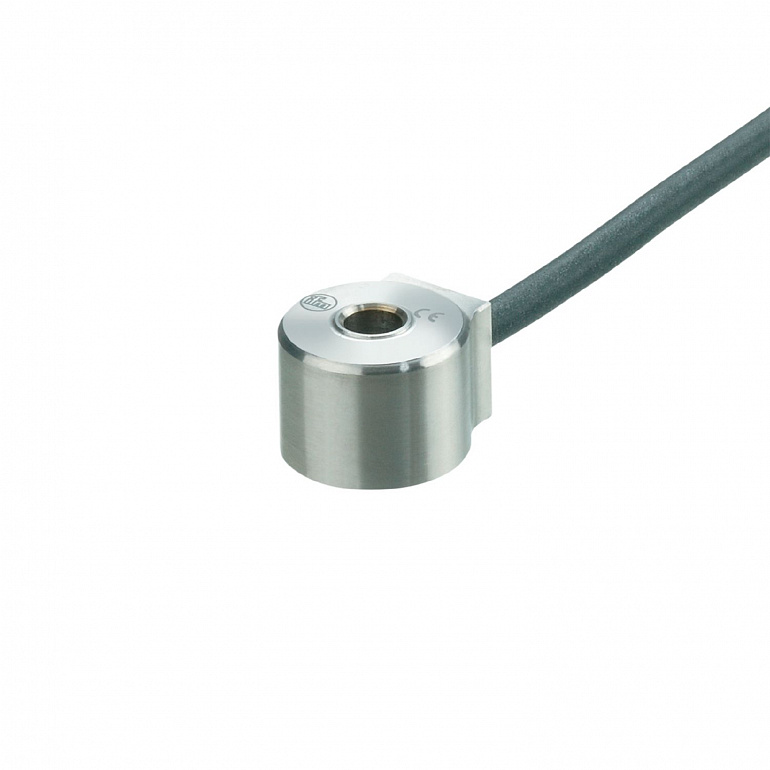

| Product characteristics |
|
| Measuring range of vibration |
-150...150 |
| Frequency range |
1...10000 |
| Measuring principle |
capacitive |
| Application |
|
| System |
screened cable; Drag chain suitability |
| Design |
for connection to external diagnostic electronics VSE |
| Application |
vibration detection |
| Electrical data |
|
| Operating voltage |
7.2...10.8 DC |
| Current consumption |
< 15 |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of sensor |
Microelectromechanical system (MEMS) |
| Outputs |
|
| Analog current output |
0...10 |
| Max. load |
300 |
| Measuring/setting range |
|
| Measuring range of vibration |
-150...150 |
| Frequency range |
1...10000 |
| Measuring principle |
capacitive |
| Sensitivity |
35.5 |
| Number of measurement axes |
1 |
| Accuracy / deviations |
|
| Linearity deviation |
0,2 % |
| Operating conditions |
|
| Ambient temperature |
-20...80 |
| Storage temperature |
-20...80 |
| Max. relative air humidity |
80; (40 °C: 50 % non condensing) |
| Protection |
IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 61000-6-2</td><td></td></tr><tr><td>EN 61000-6-3</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>50 g 11 ms</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-6</td><td>20 g / 10 ... 2000 Hz</td></tr></table> |
| MTTF |
2104 |
| UL approval |
<table><tr><td>Ta</td><td>80 °C</td></tr><tr><td>Enclosure type</td><td>Type 1 </td></tr><tr><td>voltage supply</td><td>Limited Voltage/Current </td></tr><tr><td>File number UL</td><td>E251902 </td></tr></table> |
| Mechanical data |
|
| Weight |
309.7 |
| Type of mounting |
mounting screw |
| Material |
housing: stainless steel (1.4404 / 316L) |
| Tightening torque |
5 |
| Mechanische Überlastfestigkeit |
500 |
| Drag chain suitability |
<table><tr><td>Bending radius for fixed installation</td><td>: min. 4 x cable diameter</td></tr><tr><td>Bending radius for flexible applications</td><td>: min. 15 x cable diameter</td></tr></table> |
| Accessories |
|
| Items supplied |
<table><tr><td>head cap screw: 1 x (M5 x 20 mm), Torx 15</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
