Характеристики
| Material | Target puck: PA 6 black; metal parts: stainless steel |

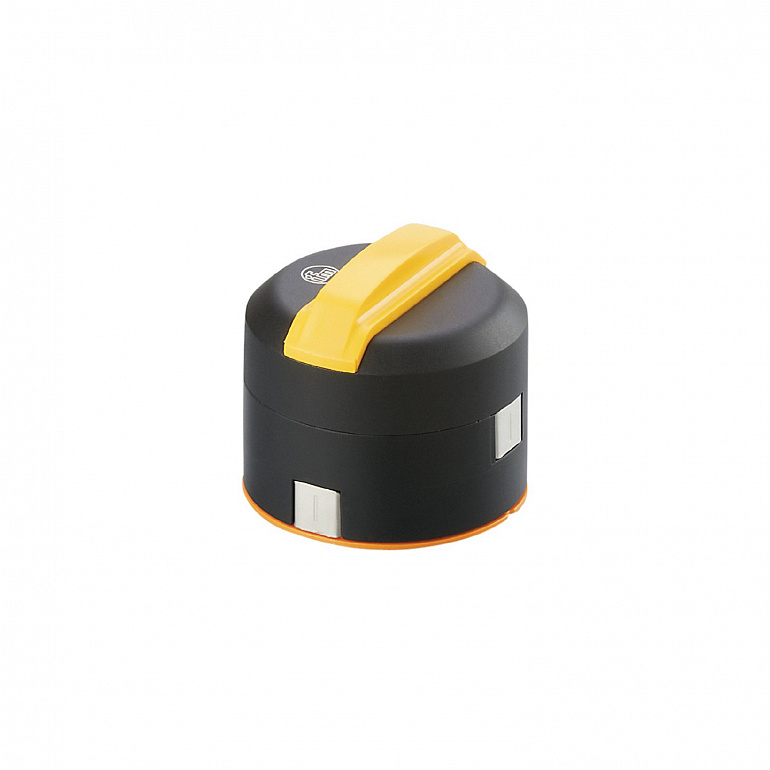

| Product designation | Target puck |
Все характеристики
| Design | for mechanical interfaces to pneumatic actuators or manually-operated valves VDI / VDE 3845, ISO 5211 / DIN 3337 | |
| Weight | 60.5 | |
| Target puck diameter | 53 | |
| Hole spacing | 80 | |
| Shaft height of actuator stem | 30 | |
| Material | Target puck: PA 6 black; metal parts: stainless steel | |
| Tightening torque | 2.5...3 | |
| Items supplied |
|
|
| Pack quantity | 1 pcs. |
Приемущества
| For monitoring valve positions |
| For reliable position feedback on valve actuators |
| Easy mounting directly on the shaft of the actuator |
| Non-contact and self-cleaning system |
| Ring with damping elements can be rotated by 90° |
