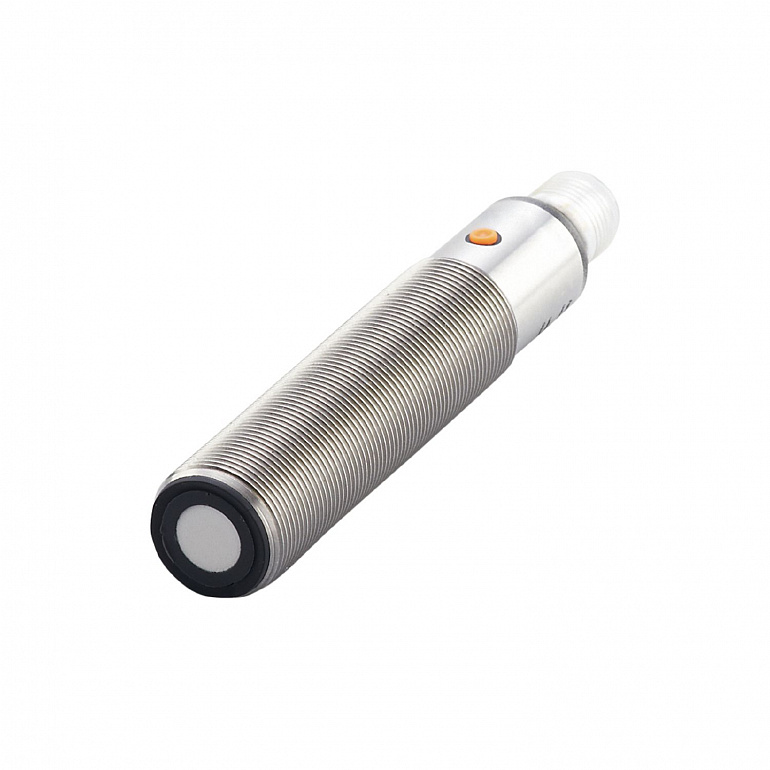

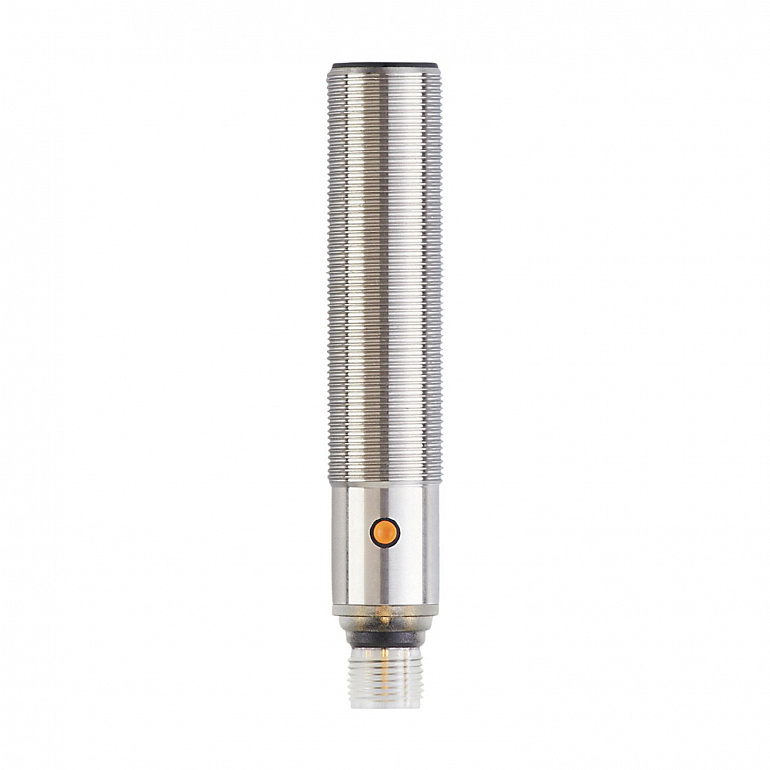

| Electrical design |
NPN |
| Output function |
normally open / closed; (configurable) |
| Sensing range |
150...1600; (Target: 200 x 200 mm) |
| Housing |
Threaded type |
| Dimensions |
M18 x 1 / L = 97.5 |
| Operating voltage |
10...30 DC; (cULus - Class 2 source required) |
| Current consumption |
55 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 0.3 |
| Converter frequency |
230 |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analog outputs: 1 |
| Total number of outputs |
2 |
| Output signal |
switching signal; analog signal |
| Electrical design |
NPN |
| Number of digital outputs |
1 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.2 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
3 |
| Number of analog outputs |
1 |
| Analog current output |
4...20 |
| Max. load |
500 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Resolution of analog output |
< 3 mm |
| Sensing range |
150...1600; (Target: 200 x 200 mm) |
| Blind zone |
150 |
| Angle of aperture cylindrical |
15; (±2) |
| Max. deviation from the 90° angle sensor/object |
± 4 |
| Temperature compensation |
yes |
| Hysteresis |
< 2 |
| Switch-point drift |
-2...2 |
| Linearity error of analog output |
<2 |
| Repeatability |
1 % |
| Notes on the accuracy / deviation |
The indicated values are reached after a warm-up time of min. 20 minutes |
| Response time |
< 300; (analog output) |
| Ambient temperature |
-20...70 |
| Storage temperature |
-30...80 |
| Protection |
IP 67 |
| EMC |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 3 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 3 V | | EN 55011 | class A |
|
| Vibration resistance |
| EN 60068-2-6 Fc | (10-55) Hz 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz |
|
| Shock resistance |
| EN 60068-2-27 Ea | 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|
| MTTF |
125 |
| UL approval |
| Ta | -20...70 °C | | voltage supply | Class 2 | | File number UL | E174191 |
|
| Weight |
100.5 |
| Housing |
Threaded type |
| Dimensions |
M18 x 1 / L = 97.5 |
| Thread designation |
M18 x 1 |
| Material |
stainless steel (1.4404 / 316L); PA; epoxy glass ceramics |
| Tightening torque |
50 |
| Display |
| Switching status | 2 x LED, yellow | | echo | 1 x LED, green |
|
| Teach function |
yes |
| Items supplied |
| lock nuts: 2 x M18, stainless steel |
|
| Remarks |
| cULus - Class 2 source required |
|
| Pack quantity |
1 pcs. |

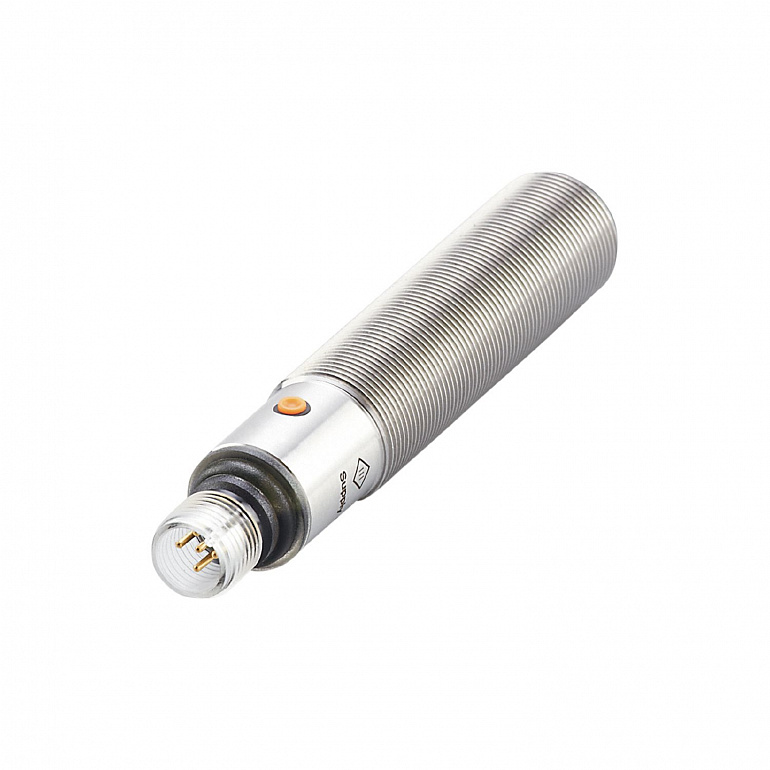

| Connection |
Connector: 1 x M12; coding: A |
