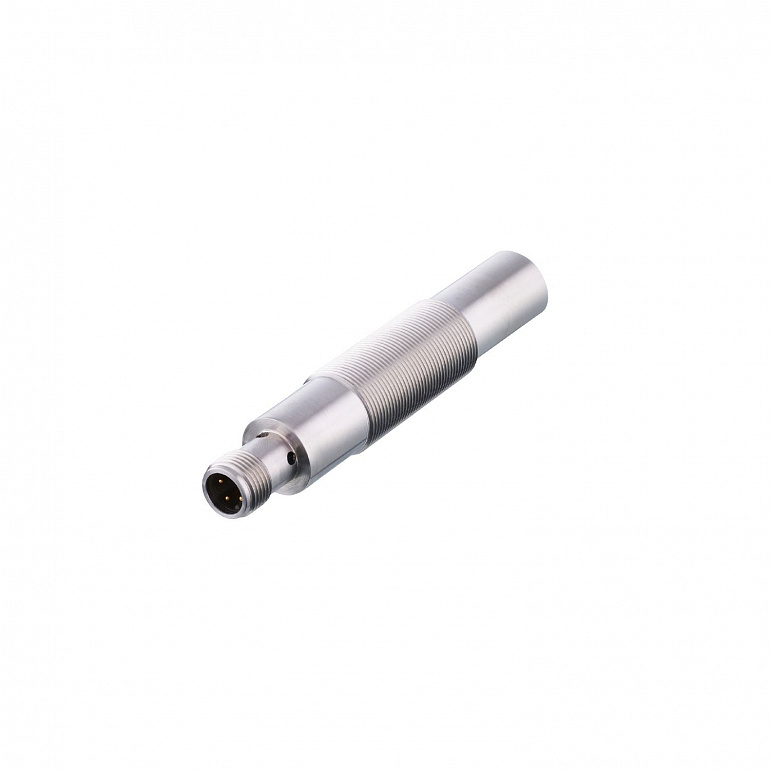

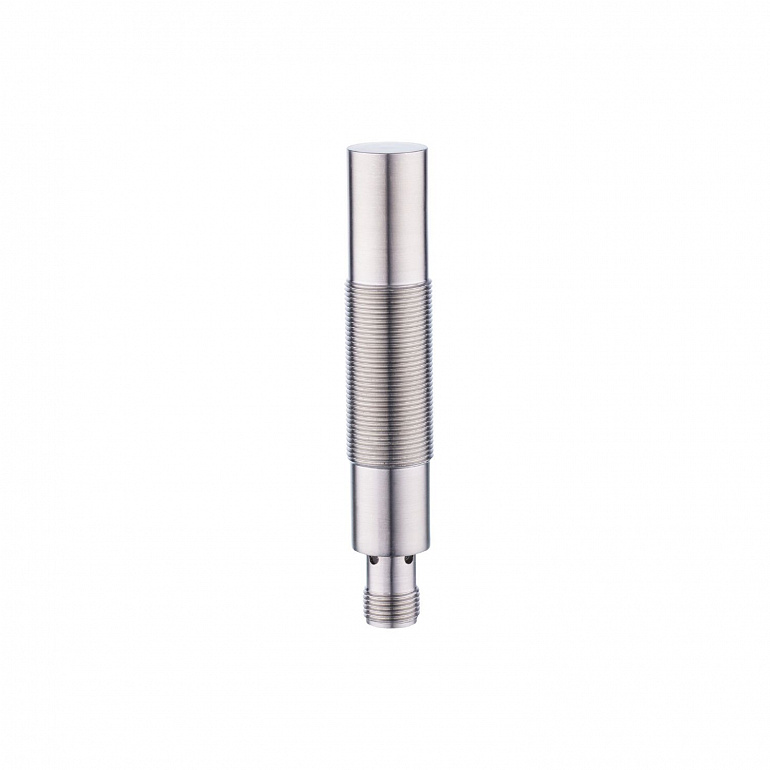

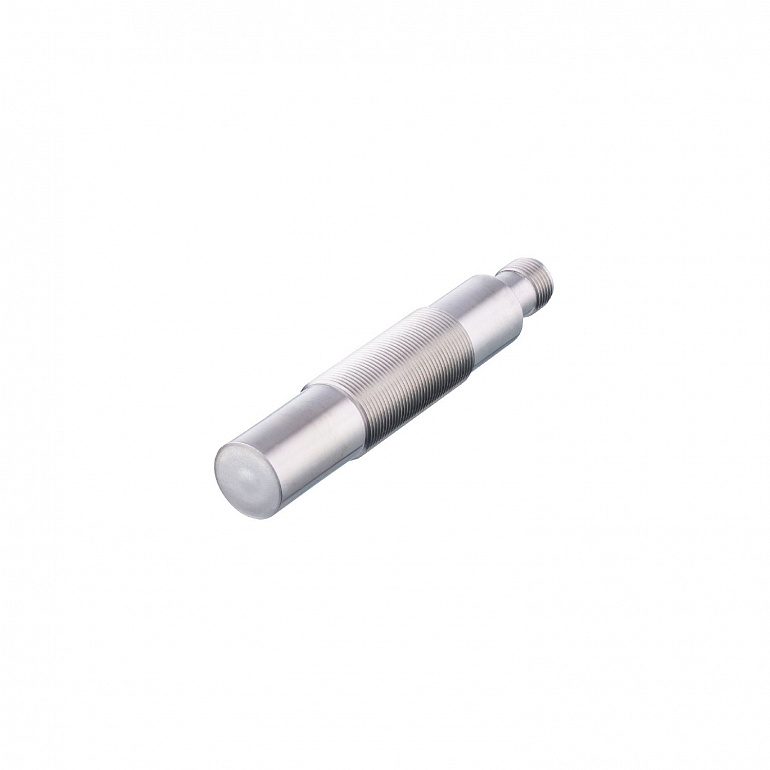

| Electrical design |
PNP/NPN; (configurable) |
| Output function |
normally open / closed; (configurable) |
| Sensing range |
50...400; (Target: 100 x 100 mm) |
| Communication interface |
IO-Link |
| Housing |
Threaded type |
| Dimensions |
M18 x 1 / L = 98.5 |
| Operating voltage |
10...30 DC; (cULus - Class 2 source required) |
| Current consumption |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 0.5 |
| Converter frequency |
300 |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analog outputs: 1 |
| Total number of outputs |
2 |
| Electrical design |
PNP/NPN; (configurable) |
| Number of digital outputs |
1 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.2 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
10 |
| Number of analog outputs |
1 |
| Analog voltage output |
0...10 |
| Min. load resistance |
3000 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Sensing range |
50...400; (Target: 100 x 100 mm) |
| Blind zone |
50 |
| Angle of aperture cylindrical |
16; (±1) |
| Max. deviation from the 90° angle sensor/object |
± 4 |
| Temperature compensation |
yes |
| Hysteresis |
< 1 |
| Linearity error of analog output |
1; (of the final value of the measuring range) |
| Temperature drift |
± 2 %; (of the final value of the measuring range) |
| Repeatability |
0,5 % |
| Resolution |
1 |
| Notes on the accuracy / deviation |
The indicated values are reached after a warm-up time of min. 20 minutes |
| Response time |
< 600; (analog output) |
| Parameter setting options |
hysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on mode |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 4.1.1 | Measuring and Switching Sensor, 1 channel | | Common - I&D | Identification and Diagnosis | | Extension | Sensor control | | Extension | Object detection, switches when value falls below the setpoint | | Function | Locator | | Function | ProductURI |
|
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
3.2 |
| IO-Link process data (cyclical) |
| Function | bit length |
|---|
| process value | 16 | | device status | 4 | | binary switching information | 2 |
|
| IO-Link functions (acyclical) |
application specific tag; operating hours counter |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1811 |
|
| Note |
| For further information please see the IODD PDF file at "Downloads" |
|
| Ambient temperature |
-10...70 |
| Storage temperature |
-25...75 |
| Protection |
IP 65; IP 67; IP 68; IP 69K |
| EMC |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 3 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 3 V | | EN 55011 | class A |
|
| Vibration resistance |
| EN 60068-2-6 Fc | (10-55) Hz 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz |
|
| Shock resistance |
| EN 60068-2-27 Ea | 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|
| MTTF |
838 |
| UL approval |
| Ta | -10...70 °C | | Enclosure type | Type 1 | | voltage supply | Class 2 | | File number UL | E174191 |
|
| Weight |
96.1 |
| Housing |
Threaded type |
| Dimensions |
M18 x 1 / L = 98.5 |
| Thread designation |
M18 x 1 |
| Material |
housing: stainless steel (1.4404 / 316L); LED window: PA |
| Tightening torque |
50 |
| Display |
| Switching status | 1 LED, yellow |
|
| Items supplied |
| lock nuts: 2 x M18, stainless steel | | damping plates: 2, EPDM |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
