Характеристики
| Pressure rating | 300 |
| Sensor connection | G 1/2; sealing cone; Ø 8,2 mm |
| Process connection | G 1/2 external thread sealing cone |
Все характеристики

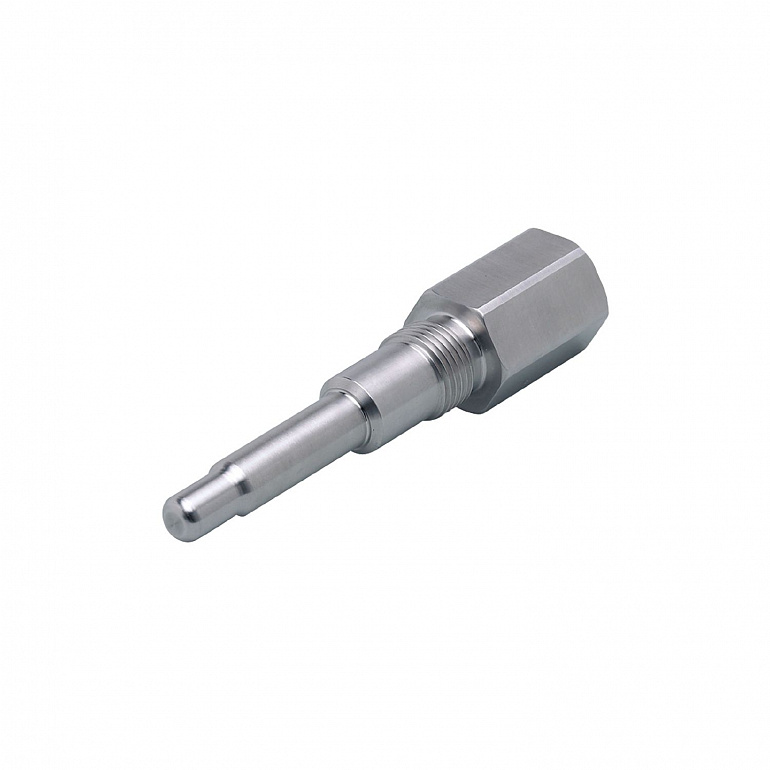

| Design | for temperature sensors TA34xx, TAA431, TAD191 | ||
| Pressure rating |
|
||
| Probe length L | 53 | ||
| Weight | 172.9 | ||
| Material | stainless steel (1.4404 / 316L) | ||
| Tightening torque | 30...50 | ||
| Sensor connection | G 1/2 sealing cone Ø 8,2 mm | ||
| Process connection | G 1/2 external thread sealing cone | ||
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.6 µm | ||
| Pack quantity | 1 pcs. |
Приемущества
| Efficient long-time protection of the temperature sensor |
| Protection against aggressive media and high process pressures |
| Easy replacement of the temperature sensor during operation |
| For use in sanitary applications |
| Approved for the requirements of the food and beverage industry |
