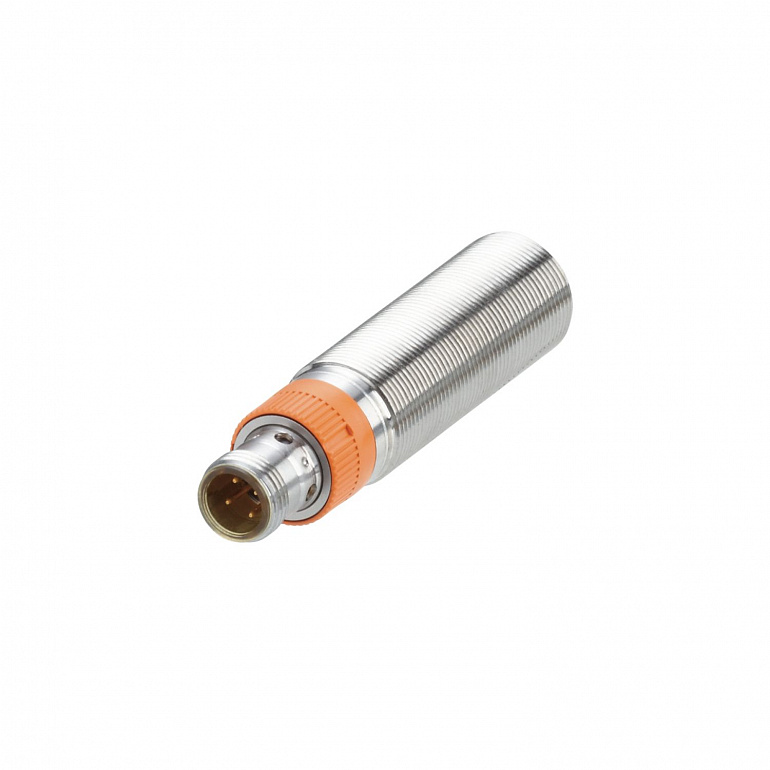

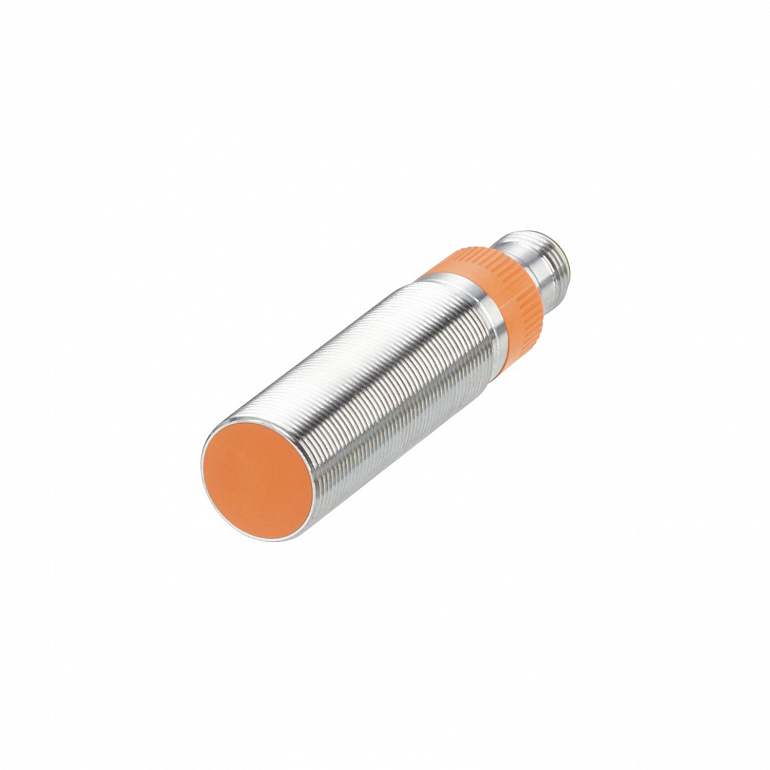

| Electrical design |
PNP/NPN; (configurable) |
| Output function |
normally open / closed; (configurable) |
| Sensing range |
7 |
| Communication interface |
IO-Link |

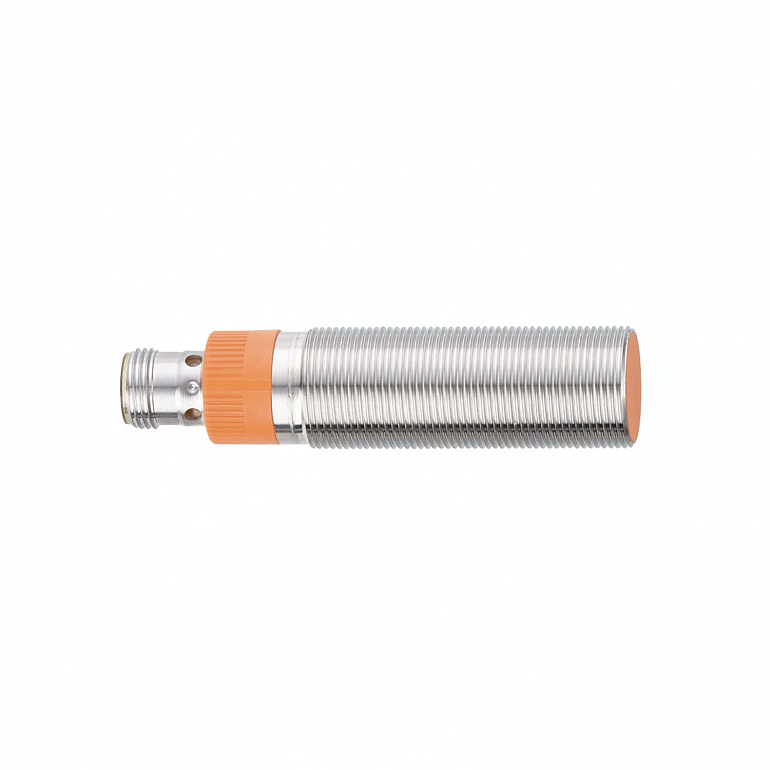

| Housing |
Threaded type |
| Dimensions |
M18 x 1 / L = 75 |
| System |
gold-plated contacts |
| Application |
evaluation of rotating and linear movements with regard to underspeed; blocking |
| Operating voltage |
10...30 DC |
| Current consumption |
< 15 |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Electrical design |
PNP/NPN; (configurable) |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Factory setting |
| Electrical design: PNP | | Output function: normally open | | Set point: 100 Imp/min | | Output OUT2: Pulse output |
|
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Output signal |
switching signal |
| Permanent current rating of switching output DC |
250 |
| Output signal |
pulse signal; switching signal; (configurable) |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
< 500 |
| Pulse output |
external evaluation of the damping pulses |
| Sensing range |
7 |
| Measuring range |
1...32000 |
| Setting range |
3...24000 |
| Measuring principle |
inductive |
| Correction factor |
stainless steel: 0.7 / brass: 0.5 / aluminum: 0.5 / copper: 0.4 |
| Hysteresis |
10...30 |
| Repeatability IO-Link |
1; (of the final value of the measuring range) |
| Temperature drift |
± 10 %; (of the final value of the measuring range) |
| Start-up delay |
0...15; (In steps of: 1 s; default: 10 s) |
| Max. damping frequency |
60000 |
| Start-up delay |
0...30; (In steps of: 100 ms; default: 10 s) |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 4.2.1 | Measuring and Switching Sensor, high resolution, 1 channel | | Common - I&D | Identification and Diagnosis | | Function | Locator | | Function | ProductURI |
|
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
3.7 |
| IO-Link process data (cyclical) |
| Function | bit length |
|---|
| process value | 32 | | device status | 4 | | binary switching information | 2 | | |
|
| IO-Link functions (acyclical) |
switch-on cycle counter; operating hours counter; internal temperature; application specific tag |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1444 |
|
| Note |
| For further information please see the IODD PDF file at "Downloads" |
|
| Ambient temperature |
-25...85 |
| Protection |
IP 65; IP 66; IP 67; IP 68; IP 69K |
| EMC |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 10 V | | EN55011 | class B |
|
| Vibration resistance |
| EN 60068-2-6 Fc | 20 g (10...3000 Hz) | | 50 sweep cycles per frequency; 1 octave per minute in 3 axes |
|
| Shock resistance |
| EN 60068-2-27 Ea | 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|
| Continuous shock resistance |
| EN 60068-2-27 | 42 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
|
| Fast temperature changes |
| EN 60068-2-14 Na | TA = -25°C; TB = 80°C; t1 = 30 min; t2 = <10 s 50 cycles |
|
| Salt spray test |
| EN 60068-2-52 Kb | severity level 5 (4 test cycles) |
|
| MTTF |
471 |
| UL approval |
| Ta | -25...70 °C | | Enclosure type | Type 1 | | voltage supply | Limited Voltage/Current | | UL approval number | A041 | | File number UL | E174191 |
|
| Weight |
52.78 |
| Housing |
Threaded type |
| Mounting |
flush mountable |
| Dimensions |
M18 x 1 / L = 75 |
| Thread designation |
M18 x 1 |
| Material |
housing: stainless steel (1.4404 / 316L); sensing face: PBT; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L) |
| Tightening torque |
35 |
| Display |
| Power | 4 x LED, green | | Switching output | 4x LED, yellow | | Error message | 4x LED, red |
|
| Items supplied |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
