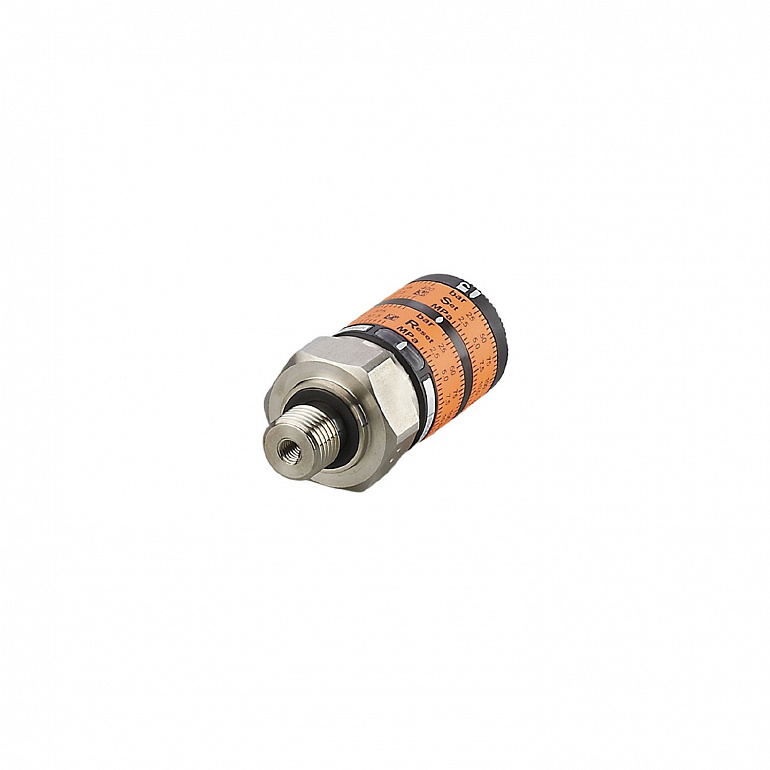

| Number of inputs and outputs |
Number of digital outputs: 2 |
| Measuring range |
| 0...10 bar | 0...1000 kPa | 0...1 MPa |
|
| Process connection |
threaded connection R 1/4 external thread Internal thread:M5 |
| Application |
for industrial applications |
| Media |
liquids and gases |
| Medium temperature |
-25...80 |
| Min. bursting pressure |
|
| Pressure rating |
|
| Type of pressure |
relative pressure |
| Operating voltage |
9.6...32 DC |
| Current consumption |
< 25 |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Total number of outputs |
2 |
| Output signal |
switching signal |
| Electrical design |
PNP |
| Number of digital outputs |
2 |
| Output function |
complementary |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
500 |
| Switching frequency DC |
100 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring range |
| 0...10 bar | 0...1000 kPa | 0...1 MPa |
|
| Set point SP |
|
| Reset point rP |
| 0.3...9.8 bar | 0.03...0.98 MPa |
|
| Switch point accuracy |
< ± 2,5; (Setting accuracy) |
| Repeatability |
< ± 0,5; (with temperature fluctuations < 10 K) |
| Characteristics deviation |
< ± 1,5 (BFSL) / < ± 2,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Temperature drift per 10 K |
< ± 0.5 |

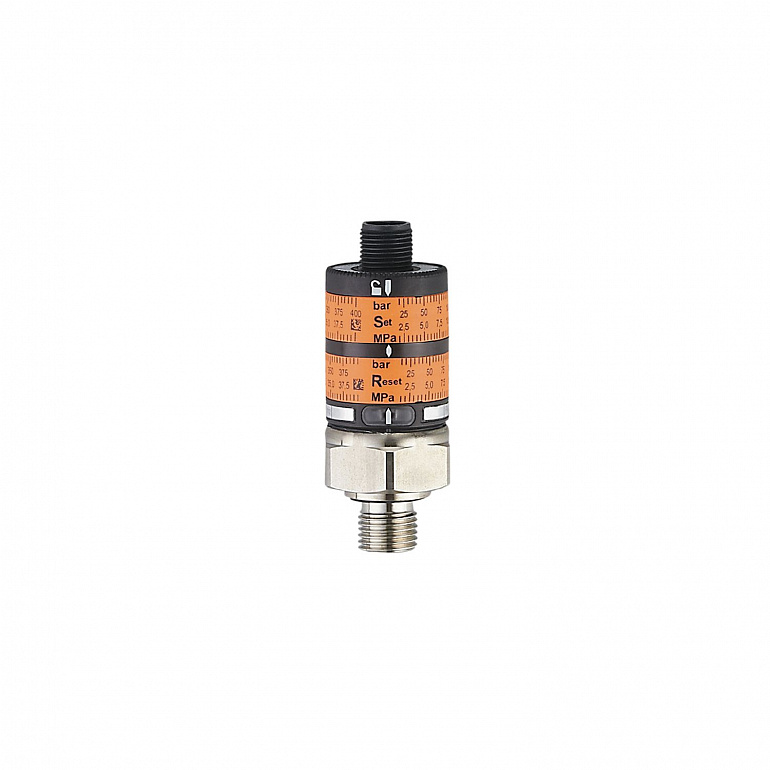

| Adjustment of the switch point |
setting rings |
| Ambient temperature |
-25...80 |
| Storage temperature |
-40...100 |
| Protection |
IP 67 |
| EMC |
| DIN EN 61000-6-2 | | | DIN EN 61000-6-3 | |
|
| Shock resistance |
| DIN IEC 68-2-27 | 50 g (11 ms) |
|
| Vibration resistance |
| DIN IEC 68-2-6 | 20 g (10...2000 Hz) |
|
| MTTF |
500 |
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight |
93 |
| Housing |
tubular |
| Dimensions |
Ø 27 / L = 70.6 |
| Material |
PBT; PC; FKM; stainless steel (1.4404 / 316L) |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L) |
| Min. pressure cycles |
50 million |
| Process connection |
threaded connection R 1/4 external thread Internal thread:M5 |
| Restrictor element integrated |
no (can be retrofitted) |
| Display |
| Power | LED, green | | Switching status | LED, yellow |
|
| With scale |
yes |
| Pack quantity |
1 pcs. |

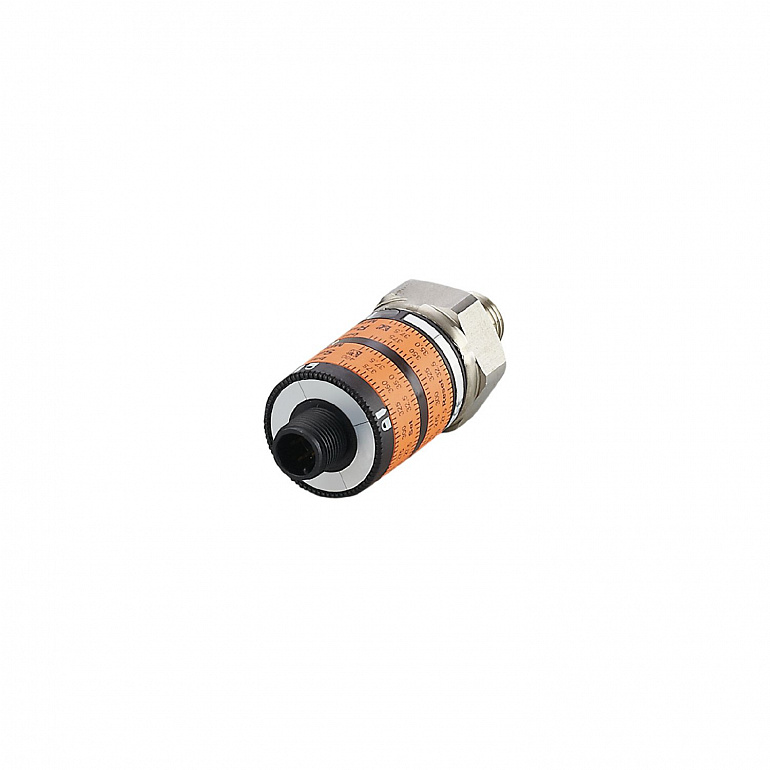

| Connection |
Connector: 1 x M12; coding: A |
