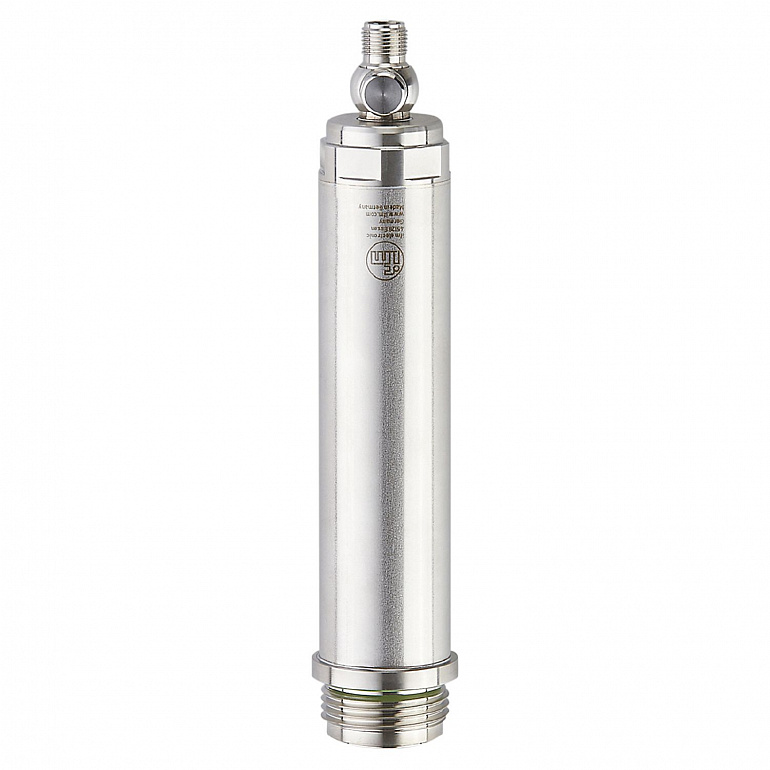

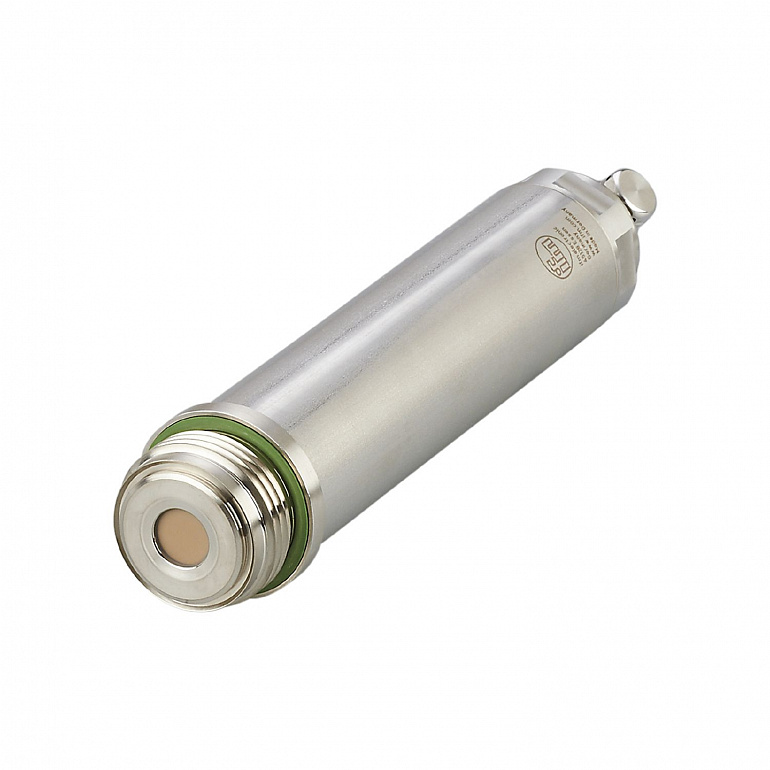

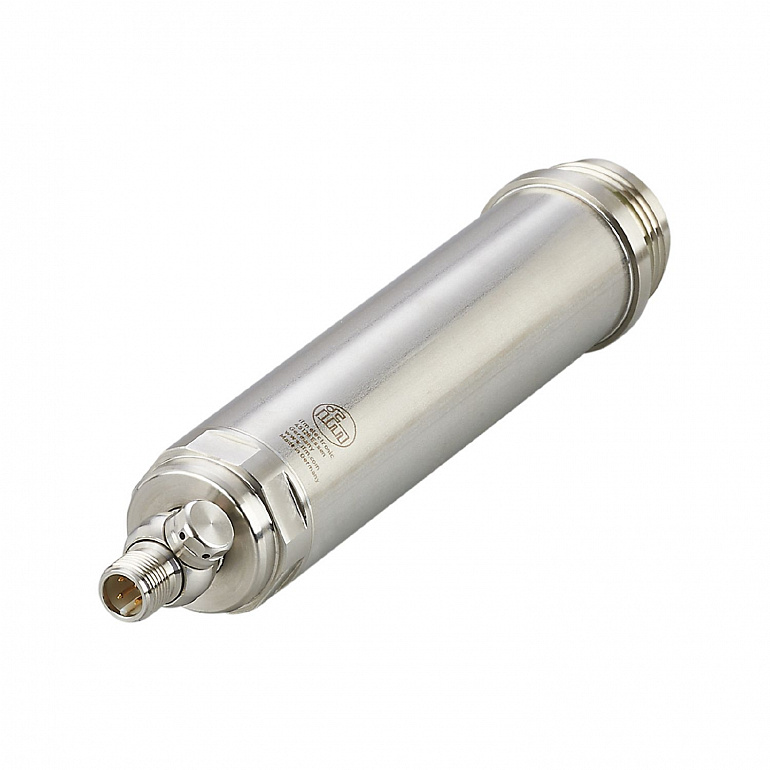

| Product characteristics |
|
| Number of inputs and outputs |
Number of analog outputs: 1 |
| Measuring range |
<table><tr><td>-125...2500 mbar</td><td>-1.82...36.26 psi</td><td>-12.5...250 kPa</td></tr></table> |
| Process connection |
threaded connection G 1 external thread Aseptoflex Vario |
| Application |
|
| System |
gold-plated contacts |
| Measuring element |
ceramic-capacitive pressure measuring cell |
| Application |
flush mountable for the food and beverage industry |
| Media |
viscous media and liquids with suspended particles; liquids and gases |
| Medium temperature |
-25...85; (125: < 1 h) |
| Min. bursting pressure |
<table><tr><td>50000 mbar</td><td>725 psi</td><td>5000 kPa</td></tr></table> |
| Pressure rating |
<table><tr><td>20000 mbar</td><td>290 psi</td><td>2000 kPa</td></tr></table> |
| Vacuum resistance |
-1000 |
| Type of pressure |
relative pressure |
| No dead space |
yes |
| MAWP (for applications according to CRN) |
20 |
| Electrical data |
|
| Operating voltage |
18...30 DC |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Integrated watchdog |
yes |
| 2-wire |
|
| Step response time analog output |
30 |
| 3-wire |
|
| Step response time analog output |
7 |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of analog outputs: 1 |
| Outputs |
|
| Total number of outputs |
1 |
| Output signal |
analog signal; (configurable) |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (scalable) |
| Max. load |
700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA) |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Measuring/setting range |
|
| Measuring range |
<table><tr><td>-125...2500 mbar</td><td>-1.82...36.26 psi</td><td>-12.5...250 kPa</td></tr></table> |
| Analog start point |
<table><tr><td>-125...2000 mbar</td><td>-1.82...29 psi</td><td>-12.5...200 kPa</td></tr></table> |
| Analog end point |
<table><tr><td>375...2500 mbar</td><td>5.44...36.26 psi</td><td>-37.5...250 kPa</td></tr></table> |
| In steps of |
<table><tr><td>1 mbar</td><td>0.02 psi</td><td>0.1 kPa</td></tr></table> |
| Factory setting |
<table><tr><td>ASP = 0.0 mbar</td><td>AEP = 2500 mbar</td><td></td></tr></table> |
| Accuracy / deviations |
|
| Repeatability |
< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation |
< ± 0,2; (linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1) |
| Linearity deviation |
< ± 0,15; (Turn down 1:1) |
| Hysteresis deviation |
< ± 0,15; (Turn down 1:1) |
| Long-term stability |
< ± 0,1; (Turn down 1:1; per year) |
| Total deviation over temperature range |
<table><tr><th>Temperature range</th><th>total deviation</th></tr><tr><td>-25...15 °C</td><td>Characteristics deviation ± 0,05 % of the span / 10 K</td></tr><tr><td>15...80 °C</td><td>Characteristics deviation</td></tr><tr><td>80...125 °C</td><td>Characte |
| Notes on the accuracy / deviation |
for further details see section Diagrams and graphs |
| Reaction times |
|
| Damping for the analog output dAA |
0...4 |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| Profiles |
<table><tr><td>Smart Sensor - SSP 3.1</td><td>Measuring Sensor</td></tr><tr><td>Common - I&D</td><td>Identification and Diagnosis</td></tr></table> |
| SIO mode |
no |
| Required master port class |
A |
| Process data analog |
3 |
| Min. process cycle time |
3.2 |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>1111</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-25...80 |
| Storage temperature |
-40...100 |
| Protection |
IP 67; IP 68; IP 69K |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 61000-6-2</td><td></td></tr><tr><td>DIN EN 61000-6-3</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>50 g (11 ms)</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-6</td><td>20 g (10...2000 Hz)</td></tr></table> |
| MTTF |
323 |
| UL approval |
<table><tr><td>UL approval number</td><td>J025 </td></tr></table> |
| Mechanical data |
|
| Weight |
554.7 |
| Housing |
tubular |
| Dimensions |
Ø 34 / L = 186.4 |
| Material |
stainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PBT |
| Materials (wetted parts) |
ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L) surface characteristics: Ra 0,4 µm / Rz = 4 µm; PTFE |
| Min. pressure cycles |
100 million |
| Tightening torque |
35 |
| Process connection |
threaded connection G 1 external thread Aseptoflex Vario |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
