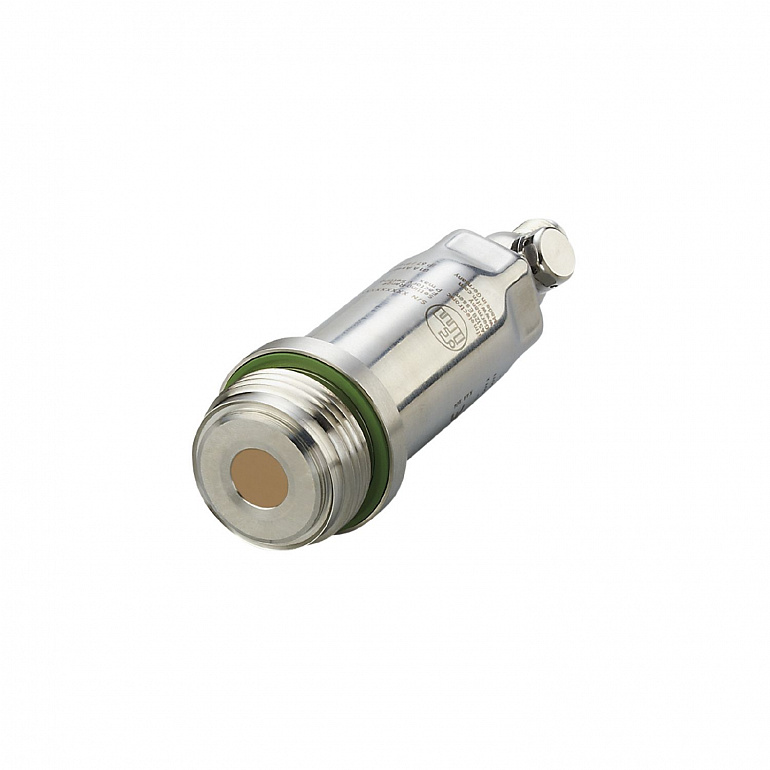

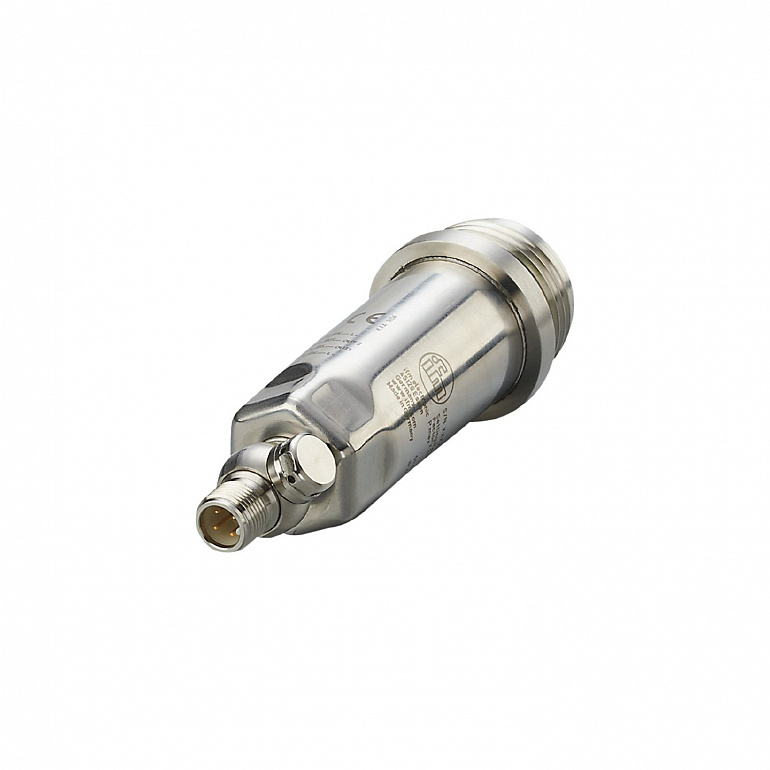

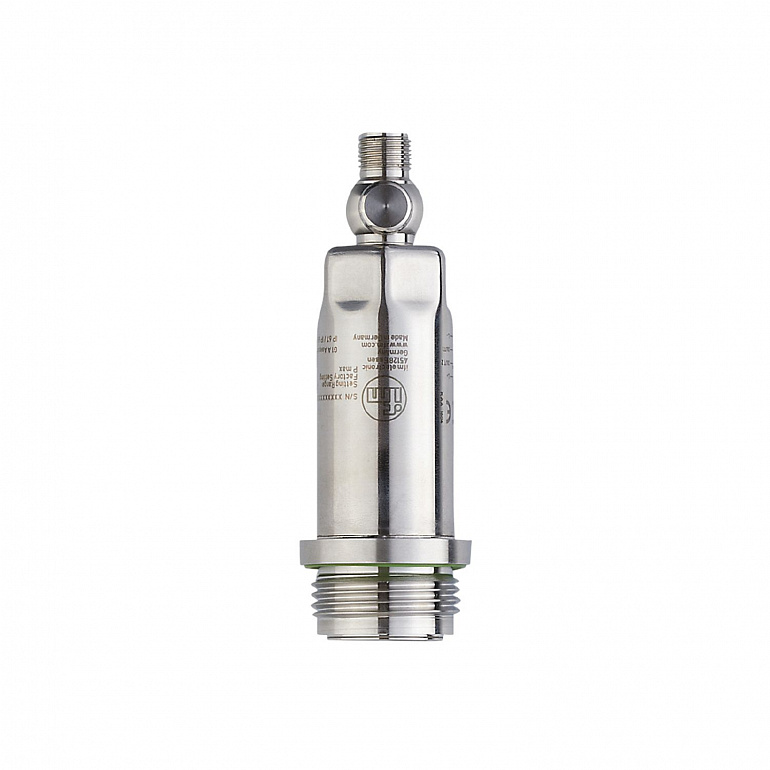

| Number of inputs and outputs |
Number of digital outputs: 1; Number of analog outputs: 1 |
| Measuring range |
| -1...40 bar | -14.6...580.2 psi | -0.1...4 MPa |
|
| Process connection |
threaded connection G 1 external thread Aseptoflex Vario |
| System |
gold-plated contacts |
| Measuring element |
ceramic-capacitive pressure measuring cell |
| Temperature monitoring |
no |
| Application |
flush mountable for the food and beverage industry |
| Media |
viscous media and liquids with suspended particles; liquids and gases |
| Conditionally suitable for |
use in gases at pressures > 25 bar only on request |
| Medium temperature |
-25...150 |
| Min. bursting pressure |
|
| Pressure rating |
|
| Vacuum resistance |
-1000 |
| Type of pressure |
relative pressure; vacuum |
| No dead space |
yes |
| MAWP (for applications according to CRN) |
|
| Operating voltage |
18...30 DC |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Integrated watchdog |
yes |
| Step response time analog output |
30 |
| Step response time analog output |
7 |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analog outputs: 1 |
| Total number of outputs |
2 |
| Output signal |
analog signal; IO-Link; (configurable) |
| Number of digital outputs |
1; (IO-Link) |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (scalable) |
| Max. load |
700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA) |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Measuring range |
| -1...40 bar | -14.6...580.2 psi | -0.1...4 MPa |
|
| Analog start point |
| -1...32 bar | -14.6...464.2 psi | -0.1...3.2 MPa |
|
| Analog end point |
| 7...40 bar | 101.4...580.2 psi | 0.7...4 MPa |
|
| In steps of |
|
| Factory setting |
| ASP = 0.0 bar | AEP = 40.0 bar | |
|
| Repeatability |
< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation |
< ± 0,2; (linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1) |
| Linearity deviation |
< ± 0,15; (Turn down 1:1) |
| Hysteresis deviation |
< ± 0,15; (Turn down 1:1) |
| Long-term stability |
< ± 0,1; (Turn down 1:1; per year) |
| Total deviation over temperature range |
| Temperature range | total deviation |
|---|
| -25...15 °C | Characteristics deviation ± 0,05 % of the span / 10 K | | 15...80 °C | Characteristics deviation | | 80...150 °C | Characteristics deviation ± 0,1 % of the span / 10 K |
|
| Notes on the accuracy / deviation |
for further details see section Diagrams and graphs |
| Damping for the analog output dAA |
0...4 |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 3.1 | Measuring Sensor | | Common - I&D | Identification and Diagnosis |
|
| SIO mode |
no |
| Required master port class |
A |
| Process data analog |
3 |
| Min. process cycle time |
3.2 |
| IO-Link resolution pressure |
0.01 |
| IO-Link functions (acyclical) |
application specific tag; internal temperature |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1641 |
|
| Ambient temperature |
-25...80 |
| Storage temperature |
-40...100 |
| Protection |
IP 67; IP 68; IP 69K |
| EMC |
| DIN EN 61000-6-2 | | | DIN EN 61000-6-3 | |
|
| Shock resistance |
| DIN EN 60068-2-27 | 50 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) |
|
| MTTF |
320 |
| UL approval |
| UL approval number | J077 | | File number UL | E174189 |
|
| Weight |
272.6 |
| Housing |
tubular |
| Dimensions |
Ø 30.2 / L = 111 |
| Material |
stainless steel (1.4404 / 316L); PBT |
| Materials (wetted parts) |
ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L) surface characteristics: Ra < 0,4 µm / Rz = 4 µm; PTFE |
| Min. pressure cycles |
100 million |
| Tightening torque |
35 |
| Process connection |
threaded connection G 1 external thread Aseptoflex Vario |
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
