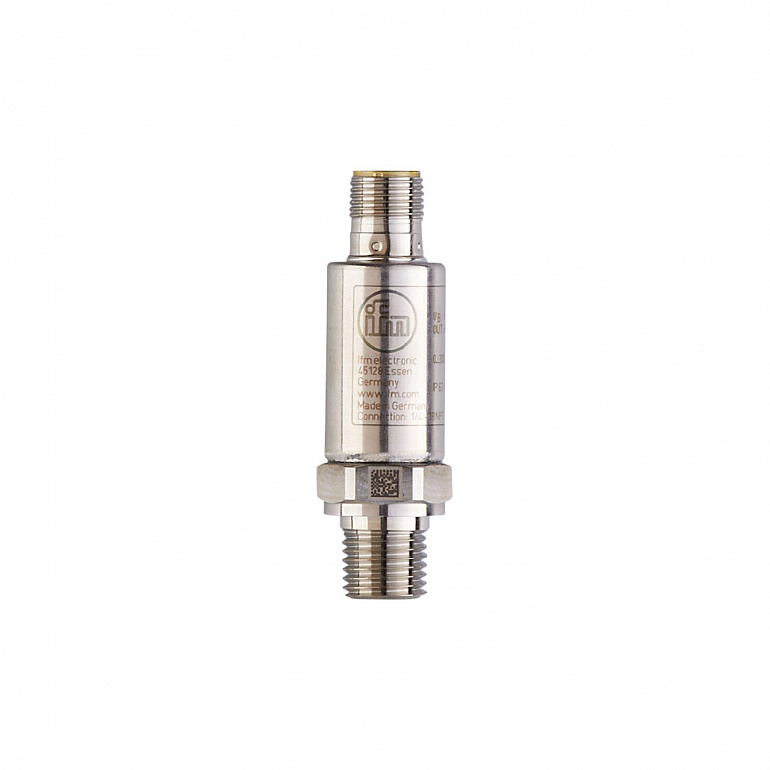

| Product characteristics |
|
| Number of inputs and outputs |
Number of analog outputs: 1 |
| Measuring range |
<table><tr><td>-14.5...200 psi</td><td>-100...1380 kPa</td></tr></table> |

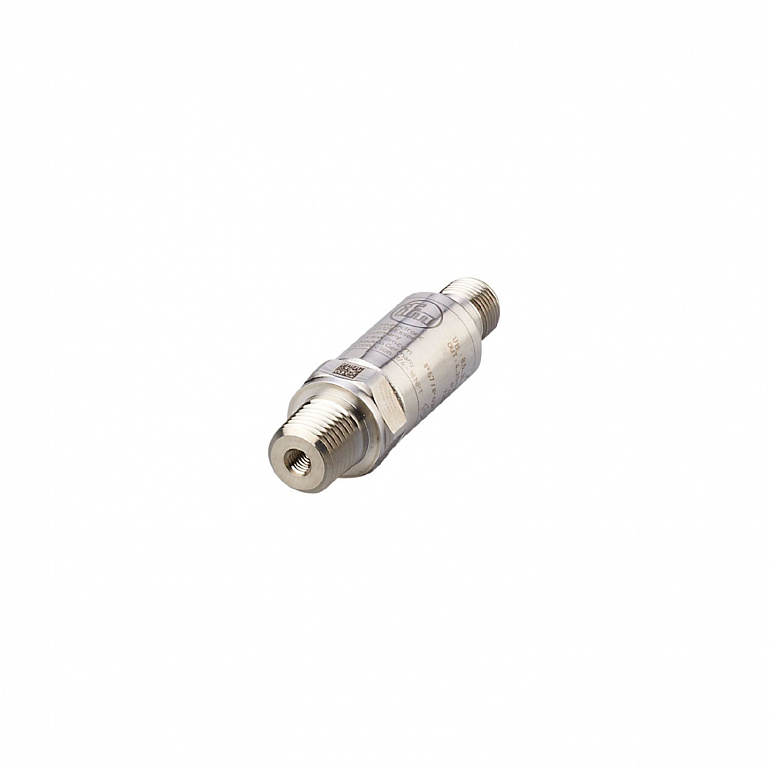

| Process connection |
threaded connection 1/4" NPT external thread |
| Application |
|
| Application |
for industrial applications |
| Media |
liquids and gases |
| Medium temperature |
-40...90 |
| Min. bursting pressure |
<table><tr><td>6525 psi</td><td>45 MPa</td></tr></table> |
| Pressure rating |
<table><tr><td>580 psi</td><td>4 MPa</td></tr></table> |
| Note on pressure rating |
<table><tr><td>static </td></tr></table> |
| Vacuum resistance |
<table><tr><td>-14.5 psi</td><td>-0.1 MPa</td></tr></table> |
| Type of pressure |
relative pressure |
| MAWP (for applications according to CRN) |
580 |
| Electrical data |
|
| Operating voltage |
8.5...36 DC |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 0.1 |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of analog outputs: 1 |
| Outputs |
|
| Total number of outputs |
1 |
| Output signal |
analog signal |
| Number of analog outputs |
1 |
| Analog current output |
4...20 |
| Max. load |
(Ub – 8,5 V) / 21,5 mA; @8,5V= 0 Ω; @12V max. 160 Ω; @24V max. 720 Ω |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Measuring/setting range |
|
| Measuring range |
<table><tr><td>-14.5...200 psi</td><td>-100...1380 kPa</td></tr></table> |
| Accuracy / deviations |
|
| Repeatability |
< ± 0,05; (with temperature fluctuations < 10 K) |
| Characteristics deviation |
< ± 0,5; (incl. drift when overtightened, zero point and span error, non-linearity, hysteresis) |
| Linearity deviation |
< ± 0,1 (BFSL) / < ± 0,2 (LS) |
| Hysteresis deviation |
< ± 0,2 |
| Long-term stability |
< ± 0,1; (per 6 months) |
| Temperature coefficient zero point and span |
< 0,1 (-25...90 °C) / < 0,2 (-40...-25 °C) |
| Reaction times |
|
| Step response time analog output |
1 |
| Operating conditions |
|
| Ambient temperature |
-40...90 |
| Storage temperature |
-40...100 |
| Protection |
IP 67; IP 69K |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 61000-6-2</td><td></td></tr><tr><td>DIN EN 61000-6-3</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>50 g (11 ms)</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-6</td><td>20 g (10...2000 Hz)</td></tr></table> |
| MTTF |
787 |
| UL approval |
<table><tr><td>UL approval number</td><td>J027 </td></tr></table> |
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Mechanical data |
|
| Weight |
58 |
| Housing |
tubular |
| Dimensions |
Ø 18.9 / L = 66.9 |
| Material |
stainless steel (630/1.4542/17-4 PH); stainless steel (1.4404 / 316L); PEI |
| Materials (wetted parts) |
stainless steel (630/1.4542/17-4 PH) |
| Min. pressure cycles |
60 million; (at 1.2 times nominal pressure) |
| Tightening torque |
< 50; (recommended tightening torque; Depends on lubrication, seal and pressure rating) |
| Process connection |
threaded connection 1/4" NPT external thread |
| Restrictor element integrated |
no (can be retrofitted) |
| Remarks |
|
| Remarks |
<table><tr><td>BFSL = Best Fit Straight Line</td></tr><tr><td>LS = limit value setting</td></tr></table> |
| Pack quantity |
1 pcs. |

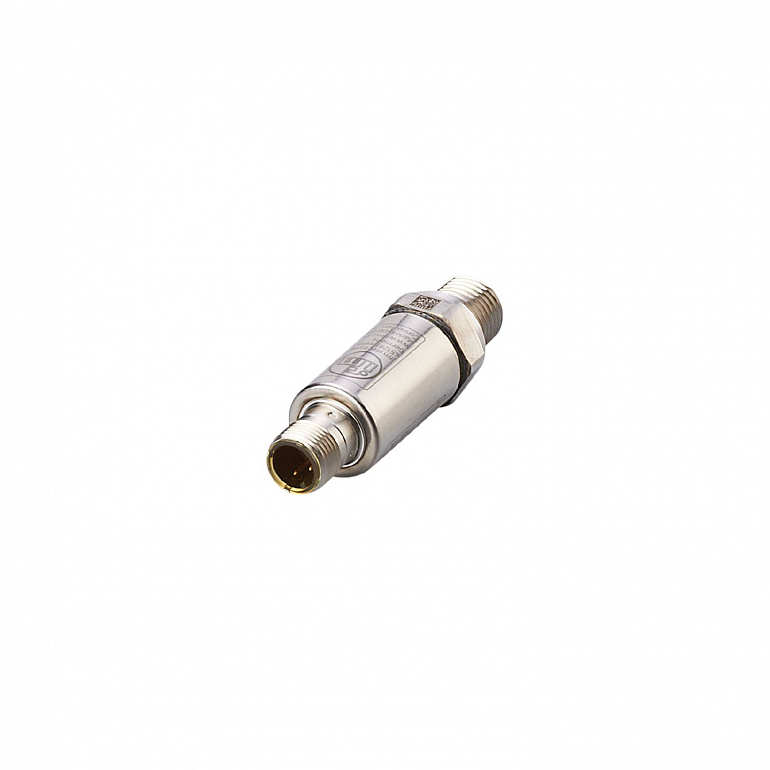

| Electrical connection |
|
| Connection |
Connector: 1 x M12; coding: A |
