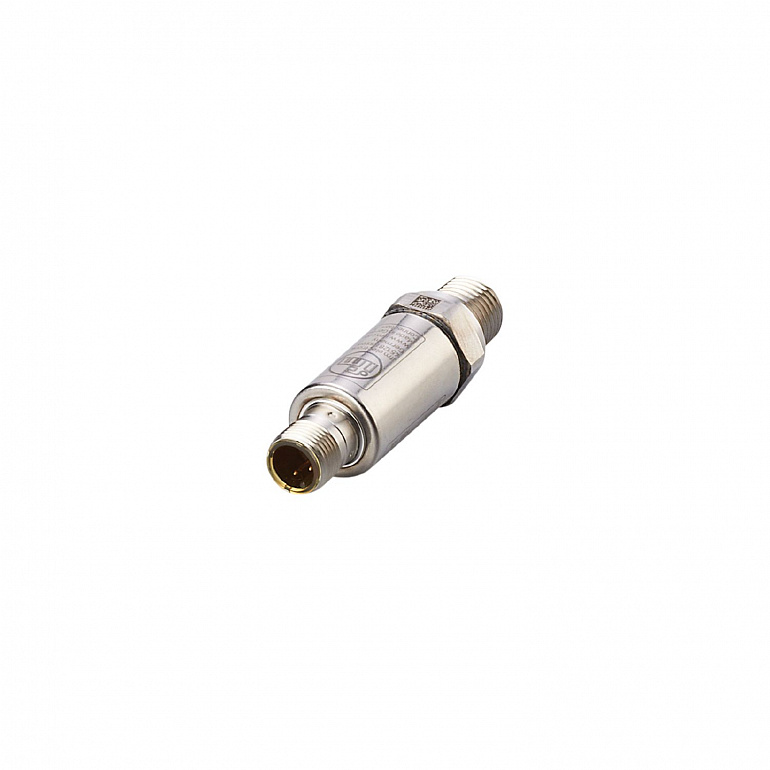

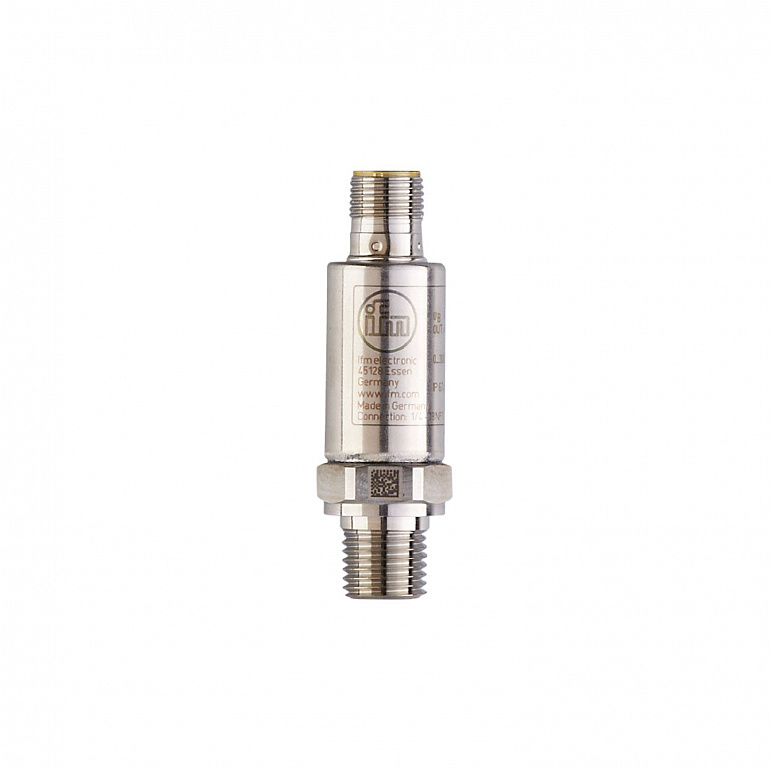

| Number of inputs and outputs |
Number of analog outputs: 1 |
| Measuring range |
|

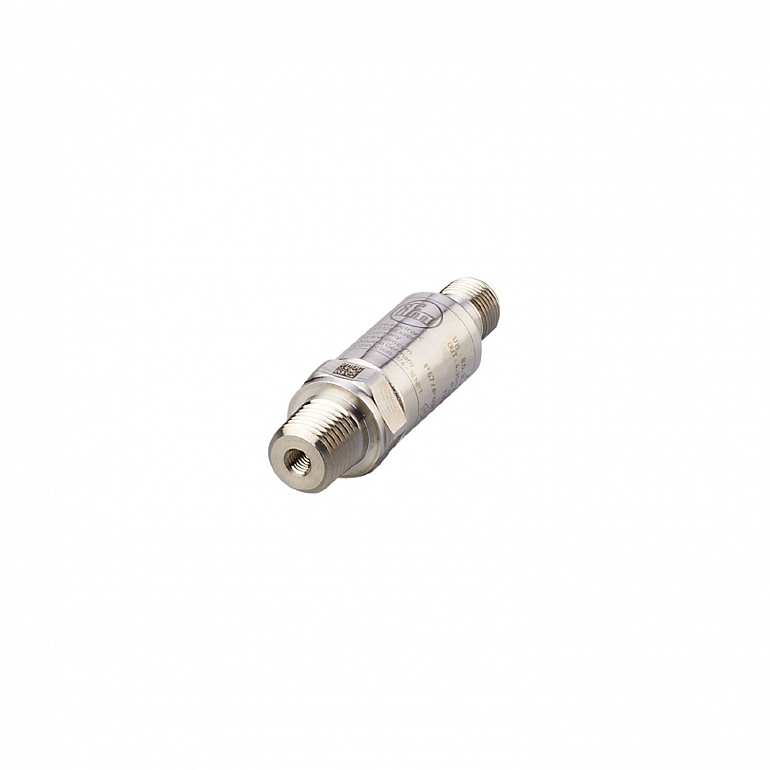

| Process connection |
threaded connection 1/4" NPT external thread |
| Application |
for industrial applications |
| Media |
liquids and gases |
| Medium temperature |
-40...90 |
| Min. bursting pressure |
|
| Pressure rating |
|
| Note on pressure rating |
|
| Vacuum resistance |
|
| Type of pressure |
relative pressure |
| MAWP (for applications according to CRN) |
940 |
| Operating voltage |
8.5...36 DC |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 0.1 |
| Number of inputs and outputs |
Number of analog outputs: 1 |
| Total number of outputs |
1 |
| Output signal |
analog signal |
| Number of analog outputs |
1 |
| Analog current output |
4...20 |
| Max. load |
(Ub – 8,5 V) / 21,5 mA; @8,5V= 0 Ω; @12V max. 160 Ω; @24V max. 720 Ω |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Measuring range |
|
| Repeatability |
< ± 0,05; (with temperature fluctuations < 10 K) |
| Characteristics deviation |
< ± 0,5; (incl. drift when overtightened, zero point and span error, non-linearity, hysteresis) |
| Linearity deviation |
< ± 0,1 (BFSL) / < ± 0,2 (LS) |
| Hysteresis deviation |
< ± 0,2 |
| Long-term stability |
< ± 0,1; (per 6 months) |
| Temperature coefficient zero point and span |
< 0,1 (-25...90 °C) / < 0,2 (-40...-25 °C) |
| Step response time analog output |
1 |
| Ambient temperature |
-40...90 |
| Storage temperature |
-40...100 |
| Protection |
IP 67; IP 69K |
| EMC |
| DIN EN 61000-6-2 | | | DIN EN 61000-6-3 | |
|
| Shock resistance |
| DIN EN 60068-2-27 | 50 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) |
|
| MTTF |
784 |
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight |
58 |
| Housing |
tubular |
| Dimensions |
Ø 18.9 / L = 66.9 |
| Material |
stainless steel (630/1.4542/17-4 PH); stainless steel (1.4404 / 316L); PEI |
| Materials (wetted parts) |
stainless steel (630/1.4542/17-4 PH) |
| Min. pressure cycles |
60 million; (at 1.2 times nominal pressure) |
| Tightening torque |
< 50; (recommended tightening torque; Depends on lubrication, seal and pressure rating) |
| Process connection |
threaded connection 1/4" NPT external thread |
| Restrictor element integrated |
no (can be retrofitted) |
| Remarks |
| BFSL = Best Fit Straight Line | | LS = limit value setting |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
