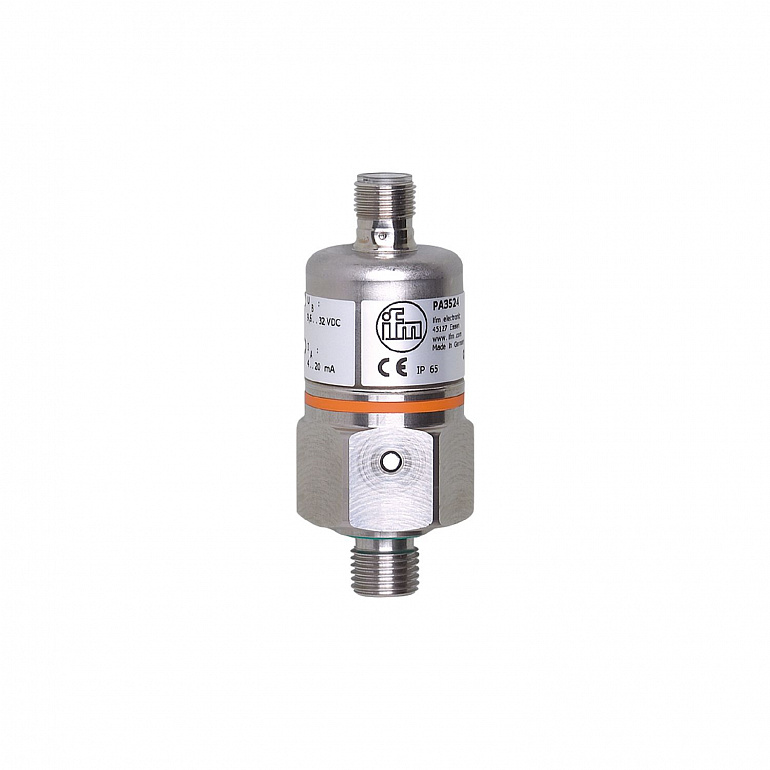

| Number of inputs and outputs |
Number of analog outputs: 1 |
| Measuring range |
| -1...10 bar | -100...1000 kPa |
|
| Process connection |
threaded connection G 1/4 external thread Internal thread:M5 |
| System |
gold-plated contacts |
| Application |
for industrial applications |
| Media |
liquids and gases |
| Medium temperature |
-25...90; (on request: -40...90 °C) |
| Min. bursting pressure |
|
| Pressure rating |
|
| Type of pressure |
relative pressure; vacuum |
| Operating voltage |
9.6...32 DC |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Number of inputs and outputs |
Number of analog outputs: 1 |
| Total number of outputs |
1 |
| Output signal |
analog signal |
| Number of analog outputs |
1 |
| Analog current output |
4...20 |
| Max. load |
720; (Ub = 24 V; (Ub - 9,6 V) / 20 mA) |
| Overload protection |
yes |
| Measuring range |
| -1...10 bar | -100...1000 kPa |
|
| Repeatability |
< 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation |
< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Long-term stability |
< ± 0,05; (per 6 months) |
| Temperature coefficient zero point |
0,1; (0...80 °C) |
| Temperature coefficient span |
0,2; (0...80 °C) |
| Step response time analog output |
3 |
| Ambient temperature |
-25...80 |
| Storage temperature |
-40...100 |
| Protection |
IP 65 |
| EMC |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 30 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 10 V | | radiation of interference | according to the automotive directive 2004/104/EC / CISPR 25 | | noise immunity | according to the automotive directive 2004/104/EC / ISO 11452-2 | | HF radiated | 100 V/m | | pulse resistance | ISO 7637-2 / severity level 3 |
|
| Shock resistance |
| DIN IEC 68-2-27 | 50 g (11 ms) |
|
| Vibration resistance |
| DIN IEC 68-2-6 | 20 g (10...2000 Hz) |
|
| MTTF |
555 |
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight |
218 |
| Housing |
tubular |
| Dimensions |
Ø 30 / L = 79.5 |
| Material |
stainless steel (1.4404 / 316L); FKM; PA; EPDM/X |
| Materials (wetted parts) |
stainless steel (1.4305 / 303); ceramics; sealing: FKM DIN 3869-14 |
| Min. pressure cycles |
100 million |
| Process connection |
threaded connection G 1/4 external thread Internal thread:M5 |
| Restrictor element integrated |
no (can be retrofitted) |
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
