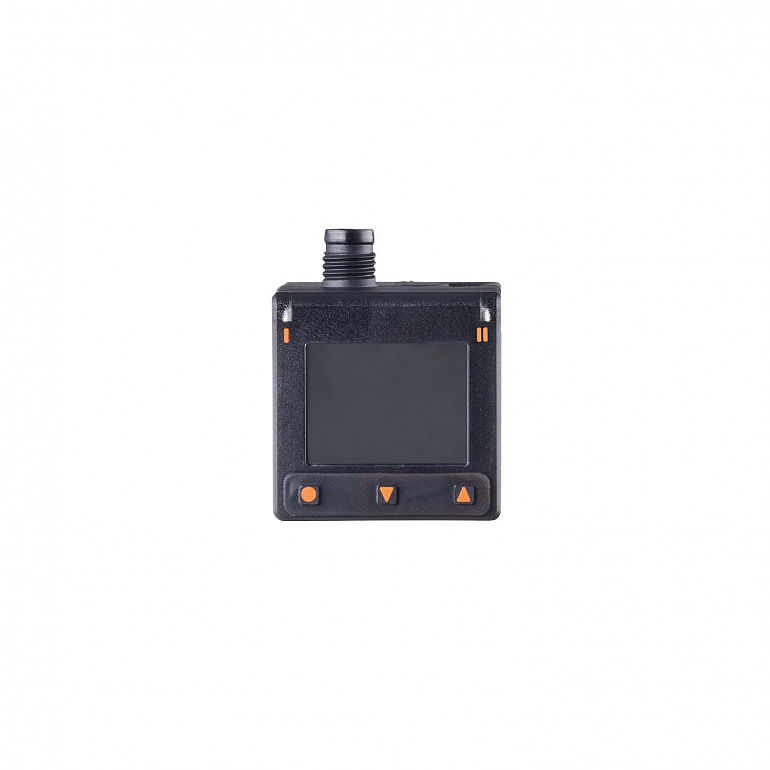

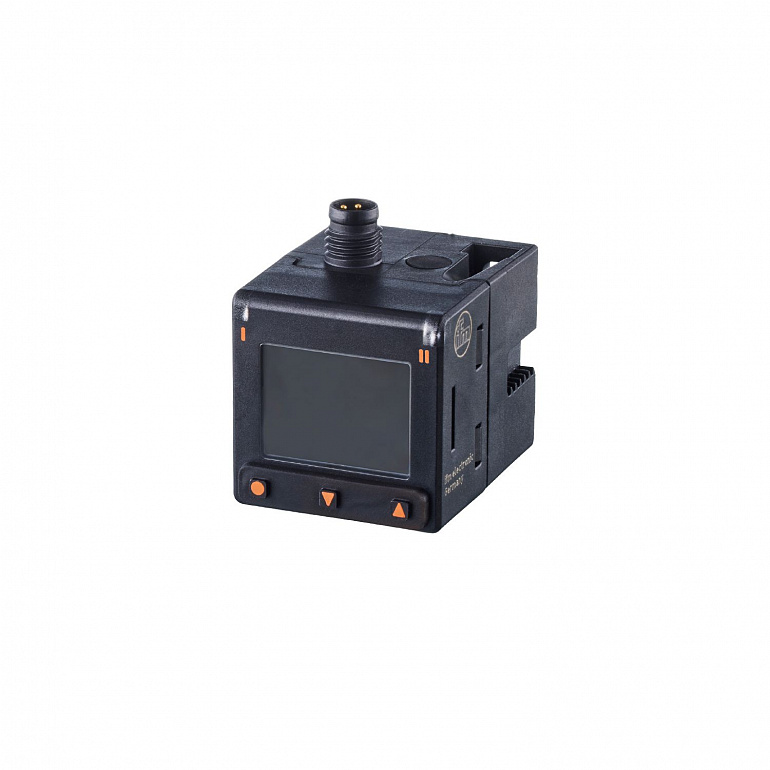

| Product characteristics |
|
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Measuring range |
<table><tr><td>-1...1 bar</td><td>-1000...1000 mbar</td><td>-100...100 kPa</td></tr></table> |
| Process connection |
threaded connection G 1/8 Internal thread (2x) |
| Application |
|
| System |
gold-plated contacts |
| Application |
for industrial applications |
| Media |
compressed air; nitrogen (N2) |
| Conditionally suitable for |
other media on request |
| Medium temperature |
0...60 |
| Min. bursting pressure |
<table><tr><td>30 bar</td><td>3 MPa</td></tr></table> |
| Pressure rating |
<table><tr><td>20 bar</td><td>2 MPa</td></tr></table> |
| Vacuum resistance |
<table><tr><td>-1000 mbar</td><td>-0.1 MPa</td></tr></table> |
| Type of pressure |
relative pressure; vacuum |
| Electrical data |
|
| Operating voltage |
18...30 DC |
| Current consumption |
< 30 |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Overvoltage protection |
yes; (< 40 V) |
| Power-on delay time |
0.3 |
| Integrated watchdog |
yes |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Outputs |
|
| Total number of outputs |
2 |
| Output signal |
switching signal; IO-Link; (configurable) |
| Electrical design |
PNP/NPN; (configurable) |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
< 170 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring/setting range |
|
| Measuring range |
<table><tr><td>-1...1 bar</td><td>-1000...1000 mbar</td><td>-100...100 kPa</td></tr></table> |
| Set point SP |
<table><tr><td>-1000...1000 mbar</td><td>-100...100 kPa</td></tr></table> |
| In steps of |
<table><tr><td>1 mbar</td><td>0.1 kPa</td></tr></table> |
| Accuracy / deviations |
|
| Switch point accuracy |
< ± 0,5 |
| Repeatability |
< ± 0,1; (with temperature fluctuations < 10 K:) |
| Characteristics deviation |
< ± 0,5; (including linearity, hysteresis and repeatability) |
| Linearity deviation |
< ± 0.5 % (limit value setting according to DIN EN IEC 62828-1) |
| Hysteresis deviation |
< ± 0,25 |
| Long-term stability |
< ± 0,1; (per year) |
| Temperature coefficient zero point |
0,2 |
| Temperature coefficient span |
0,2 |
| Reaction times |
|
| Response time |
6 |
| Damping process value dAP |
0...4 |
| Damping for the analog output dAA |
0...99.99 |
| Software / programming |
|
| Parameter setting options |
display can be rotated and switched off; Teach function; simulation function; Diagnostic function |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1.3 |
| SDCI standard |
IEC 61131-9: 2019-06 |
| Profiles |
<table><tr><td>Smart Sensor - SSP 4.1.1</td><td>Measuring and Switching Sensor, 1 channel</td></tr><tr><td>BLOB</td><td>Binary Large Object transfer</td></tr><tr><td>Common - I&D</td><td>Identification and Diagnosis</td></tr><tr><td>Extension</td><td>Quan |
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
1 |
| Process data binary |
2 |
| Min. process cycle time |
0.6 |
| IO-Link resolution pressure |
0.0001 |
| IO-Link process data (cyclical) |
<table><tr><th>Function</th><th>bit length</th></tr><tr><td>pressure</td><td>16</td></tr><tr><td>device status</td><td>4</td></tr><tr><td>SSC1.1</td><td>1</td></tr><tr><td>SSC1.2</td><td>1</td></tr></table> |
| IO-Link functions (acyclical) |
application specific tag; internal temperature; Medium temperature |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>1744</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
0...60 |
| Storage temperature |
-25...85 |
| Protection |
IP 65 |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 61326-1</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>50 g (11 ms)</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-6</td><td>20 g (10...2000 Hz)</td></tr></table> |
| MTTF |
508 |
| UL approval |
<table><tr><td>UL approval number</td><td>J065 </td></tr></table> |
| Pressure equipment directive |
sound engineering practice; can be used for stable gases fluid group 2 |
| Mechanical data |
|
| Weight |
52.9 |
| Housing |
rectangular |
| Dimensions |
37.7 x 30 x 38.6 |
| Material |
PBT; PC; TPE; NBR; FKM; brass; silicon (coated) |
| Materials (wetted parts) |
PBT; FKM; brass; silicon (coated) |
| Min. pressure cycles |
50 million |
| Process connection |
threaded connection G 1/8 Internal thread (2x) |
| Displays / operating elements |
|
| Display |
<table><tr><td>Display 1"</td><td>128 x 96 pixels</td></tr><tr><td>Switching status</td><td>2 x LED, yellow</td></tr></table> |
| Display unit |
mbar; kPa; mmHg; kgf/cm² |
| Accessories |
|
| Items supplied |
<table><tr><td>head cap screw: 2 x (M3 x 8 mm)</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M8; coding: A; Contacts: gold-plated |
