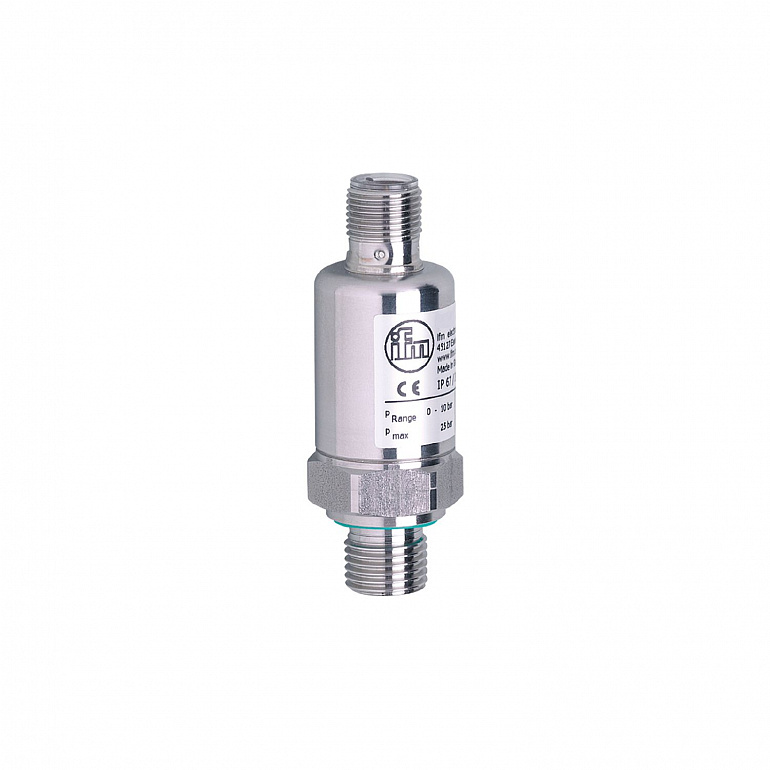

| Number of inputs and outputs |
Number of analog outputs: 1 |
| Measuring range |
| 0...400 bar | 0...5800 psi | 0...40 MPa |
|
| Process connection |
threaded connection G 1/4 external thread |
| Application |
for mobile applications |
| Media |
liquids and gases |
| Medium temperature |
-25...90; (on request: -40...100 °C) |
| Min. bursting pressure |
|
| Pressure rating |
|
| Type of pressure |
relative pressure |
| Operating voltage |
16...36 DC |
| Current consumption |
< 6 |
| Min. insulation resistance |
100; (80 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Number of inputs and outputs |
Number of analog outputs: 1 |
| Total number of outputs |
1 |
| Output signal |
analog signal |
| Number of analog outputs |
1 |
| Analog voltage output |
0...10 |
| Min. load resistance |
2000 |
| Measuring range |
| 0...400 bar | 0...5800 psi | 0...40 MPa |
|
| Repeatability |
< ± 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation |
< ± 1,0; (incl. drift due to tightening torque, zero and span error) |
| Linearity deviation |
< ± 0,25 (BFSL) / < ± 0,5 (LS) |
| Hysteresis deviation |
< ± 0,2 |
| Long-term stability |
< ± 0,1; (per 6 months) |
| Temperature coefficient zero point |
< ± 0,1; (-25...90 °C) |
| Temperature coefficient span |
< ± 0,1; (-25...90 °C) |
| Step response time analog output |
8 |
| Ambient temperature |
-25...90 |
| Storage temperature |
-40...100 |
| Protection |
IP 67; IP 69K |
| EMC |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | noise immunity | according to the automotive directive 1995/54/EC, 2004/104 EC, 2005/83/EC | | ISO 11452-2 | 100 V/m | | ISO 11452-4 | 100 mA / severity level 4 | | ISO 7637-2 | severity level 4 | | radiation of interference | CISPR 25 | | EN 61000-6-1 | | | EN 61000-6-4 | |
|
| Shock resistance |
| DIN IEC 68-2-27 | 50 g (11 ms) |
|
| Vibration resistance |
| DIN IEC 68-2-6 | 20 g (10...2000 Hz) |
|
| MTTF |
1069 |
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight |
83 |
| Housing |
tubular |
| Dimensions |
Ø 22 / L = 65.1 |
| Material |
stainless steel (1.4404 / 316L); PA |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L); FKM |
| Min. pressure cycles |
50 million |
| Process connection |
threaded connection G 1/4 external thread |
| Restrictor element integrated |
yes |
| Remarks |
| BFSL = Best Fit Straight Line | | LS = limit value setting |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
