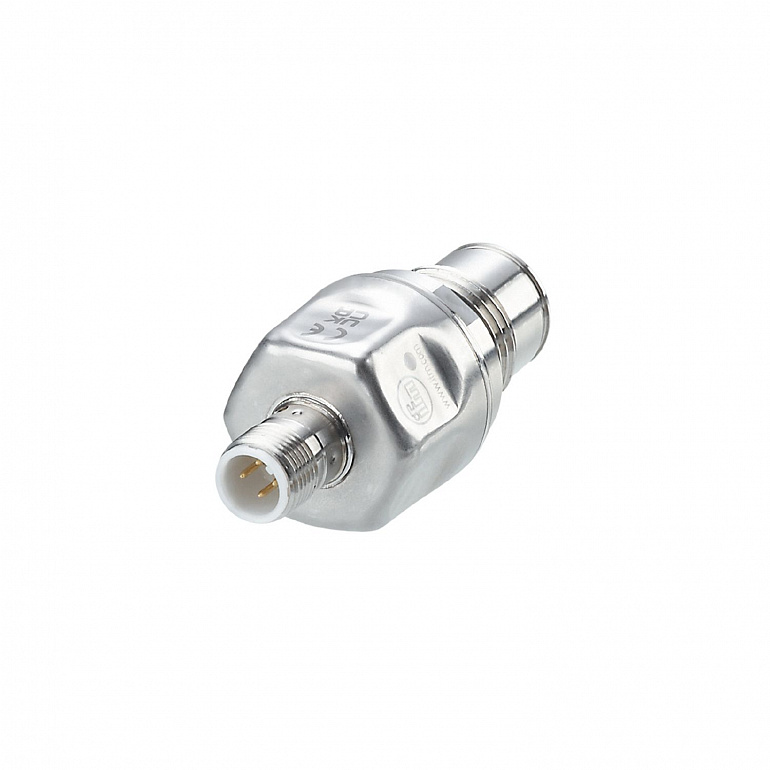

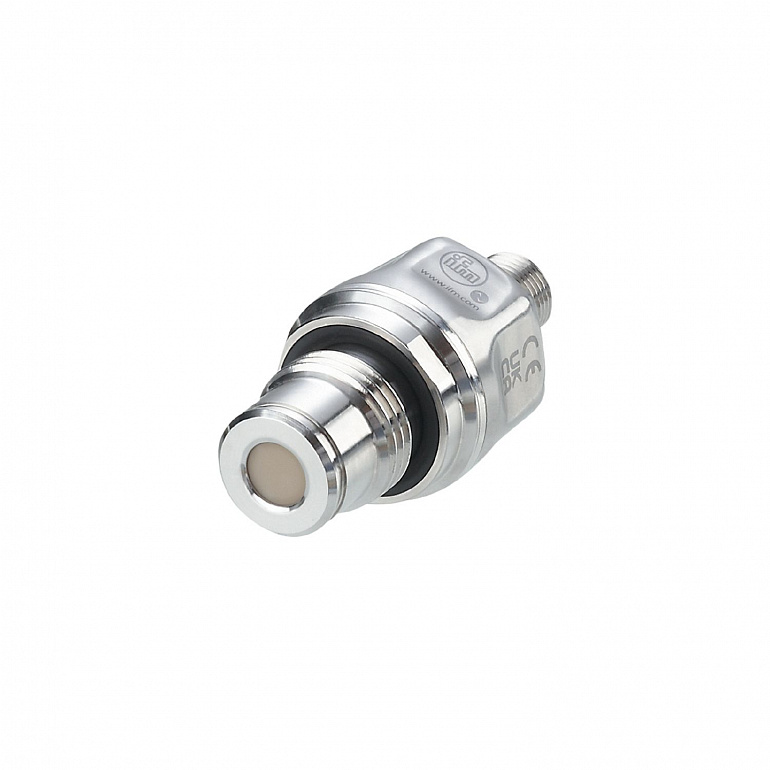

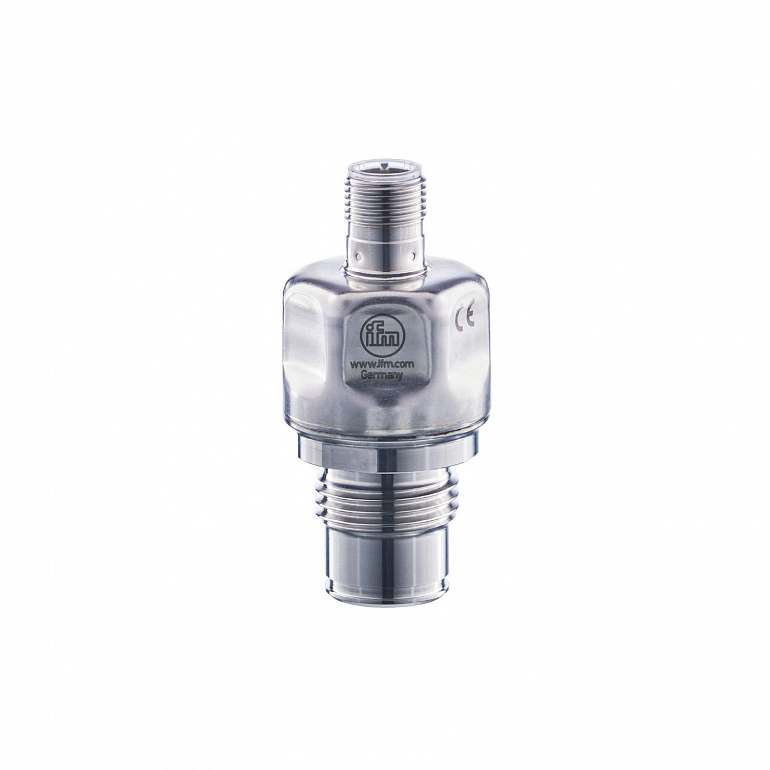

| Product characteristics |
|
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analog outputs: 1 |
| Measuring range |
<table><tr><td>-1...10 bar</td><td>-14.5...145 psi</td><td>-0.1...1 MPa</td></tr></table> |
| Process connection |
threaded connection G 1/2 external thread |
| Application |
|
| System |
gold-plated contacts |
| Measuring element |
ceramic-capacitive pressure measuring cell |
| Temperature monitoring |
yes |
| Application |
Industrial flush pressure transmitters, analog | PL; for industrial applications |
| Media |
viscous media and liquids with suspended particles; Liquids; other media on request |
| Medium temperature |
-25...110; (flush mount zero-leak using metal-to-metal seal. For permissible temperatures of other sealing versions, see sealing materials under “Accessories”) |
| Min. bursting pressure |
<table><tr><td>175 bar</td><td>2538 psi</td><td>17 MPa</td></tr></table> |
| Pressure rating |
<table><tr><td>70 bar</td><td>1015 psi</td><td>7 MPa</td></tr></table> |
| Vacuum resistance |
-1000 |
| Type of pressure |
relative pressure; vacuum |
| No dead space |
yes |
| Electrical data |
|
| Operating voltage |
9.6...30 DC |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Integrated watchdog |
yes |
| 2-wire |
|
| Step response time analog output |
12 |
| 3-wire |
|
| Step response time analog output |
3 |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analog outputs: 1 |
| Outputs |
|
| Total number of outputs |
2 |
| Output signal |
analog signal; IO-Link |
| Number of digital outputs |
1; (IO-Link) |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (scalable; 1:5) |
| Max. load |
(Ub - 9,6 V) / 21,5 mA; 670 Ω (Ub = 24 V) |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Measuring/setting range |
|
| Measuring range |
<table><tr><td>-1...10 bar</td><td>-14.5...145 psi</td><td>-0.1...1 MPa</td></tr></table> |
| Analog start point |
<table><tr><td>-1...8 bar</td><td>-14.5...116 psi</td><td>-0.1...0.8 MPa</td></tr></table> |
| Analog end point |
<table><tr><td>1...10 bar</td><td>14.5...145 psi</td><td>0.1...1 MPa</td></tr></table> |
| In steps of |
<table><tr><td>0.002 bar</td><td>0.2 psi</td><td>0.0002 MPa</td></tr></table> |
| Factory setting |
<table><tr><td>ASP = 0.0 bar</td><td>AEP = 10.0 bar</td><td></td></tr><tr><td>ASP = 0.0 psi</td><td>AEP = 145.0 psi</td><td></td></tr><tr><td>ASP = 0.0 MPa</td><td>AEP = 1.0 MPa</td><td></td></tr></table> |
| Temperature monitoring |
|
| Accuracy |
± 2.5 K + (0.045 x (ambient temperature - medium temperature)) |
| Accuracy / deviations |
|
| Repeatability |
< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation |
< ± 0,5; (linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1) |
| Linearity deviation |
< ± 0,15; (Turn down 1:1) |
| Hysteresis deviation |
< ± 0,15; (Turn down 1:1) |
| Long-term stability |
< ± 0,1; (Turn down 1:1; per year) |
| Temperature coefficient zero point |
< ± 0,1 (-25...85 °C)
< ± 0,3 (85...110 °C) |
| Temperature coefficient span |
< ± 0,1 (-25...85 °C)
< ± 0,3 (85...110 °C) |
| Reaction times |
|
| Damping process value dAP |
0...99.99 |
| Damping for the analog output dAA |
0...99.99 |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
<table><tr><td>Common - I&D</td><td>Identification and Diagnosis</td></tr><tr><td>Function</td><td>Measurement data, standard resolution</td></tr></table> |
| SIO mode |
no |
| Required master port class |
A; (when pin 2 not connected: B) |
| Min. process cycle time |
3.5 |
| IO-Link resolution pressure |
0.002 |
| IO-Link resolution temperature |
0.2 |
| IO-Link process data (cyclical) |
<table><tr><th>Function</th><th>bit length</th></tr><tr><td>pressure</td><td>16</td></tr><tr><td>temperature</td><td>16</td></tr><tr><td>device status</td><td>4</td></tr></table> |
| IO-Link functions (acyclical) |
application specific tag; internal temperature |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>1437</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-25...90 |
| Storage temperature |
-40...100 |
| Protection |
IP 67; IP 68; IP 69 |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 61326-1</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>50 g (11 ms)</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-6</td><td>20 g (10...2000 Hz)</td></tr></table> |
| MTTF |
427 |
| Embedded software included |
yes |
| UL approval |
<table><tr><td>Enclosure type</td><td>Type 1 </td></tr><tr><td>UL approval number</td><td>J050 </td></tr><tr><td>File number UL</td><td>E174189 </td></tr></table> |
| Mechanical data |
|
| Weight |
113.97 |
| Housing |
tubular |
| Dimensions |
Ø 30 / L = 63 |
| Material |
stainless steel (1.4435 / 316L); stainless steel (1.4404 / 316L); PA; PTFE; FKM |
| Materials (wetted parts) |
stainless steel (1.4435 / 316L); Al2O3 (ceramics) surface characteristics: Ra < 0,4 µm / Rz = 4 µm; PTFE; (FKM for sealing with seal DIN EN ISO 1179-2, see operating instructions) |
| Min. pressure cycles |
100 million |
| Tightening torque |
25 |
| Process connection |
threaded connection G 1/2 external thread |
| Displays / operating elements |
|
| Display |
<table><tr><td>operating status</td><td>2 LED, green</td></tr></table> |
| Accessories |
|
| Items supplied |
<table><tr><td>Gasket: G1/2, FKM DIN EN ISO1179-2 (-15...110°C), E30492</td></tr></table> |
| Accessories (optional) |
<table><tr><td>Gasket: G1/2, FKM DIN EN ISO1179-2 (-15...110°C), E30492</td></tr><tr><td>Gasket: G1/2, EPDM DIN EN ISO1179-2 (-25...110°C), E30451</td></tr><tr><td>Gasket: G1/2, FFKM DIN EN ISO1179-2 (-5...110°C), E30513</td></tr><tr><td>O-ring: 16,4 x 1, |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
