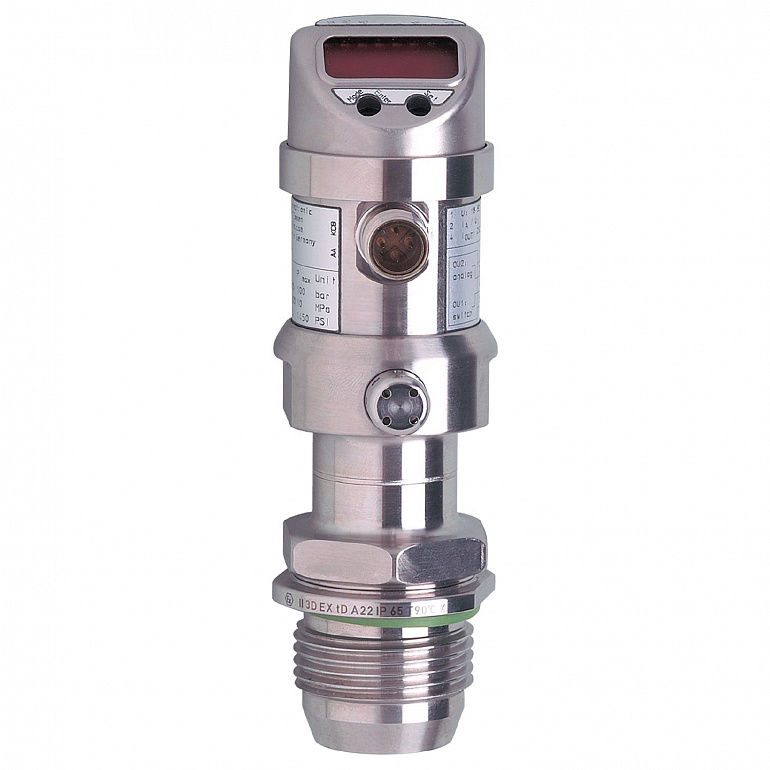

| Number of inputs and outputs |
Number of digital outputs: 1; Number of analog outputs: 1 |
| Measuring range |
| -0.0124...0.25 bar | -12.4...250 mbar | -5...100.4 inH2O | -1.24...25 kPa |
|
| Process connection |
threaded connection G 1 external thread sealing cone |
| System |
gold-plated contacts |
| Application |
food and beverage industry |
| Installation |
Freely rotatable housing 350° |
| Media |
viscous media and liquids with suspended particles; liquids and gases |
| Medium temperature |
-20...60; (when used outside the hazardous area:; Ambient temperature: -25...85 °C; Medium temperature: -25...125 °C / 145 °C < 1h) |
| Min. bursting pressure |
| 30000 mbar | 12044 inH2O | 3000 kPa |
|
| Pressure rating |
| 6000 mbar | 2400 inH2O | 600 kPa |
|
| Type of pressure |
relative pressure; vacuum |
| Operating voltage |
18...32 DC |
| Current consumption |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
0.5 |
| Integrated watchdog |
yes |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analog outputs: 1 |
| Total number of outputs |
2 |
| Output signal |
switching signal; analog signal; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
1 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
250 |
| Switching frequency DC |
6 |
| Number of analog outputs |
1 |
| Analog current output |
4...20, invertible; (scalable 1:4) |
| Max. load |
(Ub - 10 V) / 20 mA |
| Analog voltage output |
0...10, invertible; (scalable 1:4) |
| Min. load resistance |
2000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring range |
| -0.0124...0.25 bar | -12.4...250 mbar | -5...100.4 inH2O | -1.24...25 kPa |
|
| Set point SP |
| -12...250 mbar | -4.8...100.4 inH2O | -1.2...25 kPa |
|
| Reset point rP |
| -12.4...249.6 mbar | -5...100.2 inH2O | -1.24...24.96 kPa |
|
| Analog start point |
| -12.4...187.4 mbar | -5...75.2 inH2O | -1.24...18.74 kPa |
|
| Analog end point |
| 50...250 mbar | 20.1...100.4 inH2O | 5...25 kPa |
|
| In steps of |
| 0.2 mbar | 0.1 inH2O | 0.02 kPa |
|
| Switch point accuracy |
< ± 0,2; (Turn down 1:1) |
| Repeatability |
< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation |
< ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1) |
| Linearity deviation |
< ± 0,15; (Turn down 1:1) |
| Hysteresis deviation |
< ± 0,15; (Turn down 1:1) |
| Long-term stability |
< ± 0,1; (Turn down 1:1; per year) |
| Temperature coefficient zero point |
< ± 0,05; (0...70 °C) |
| Temperature coefficient span |
< ± 0,15; (0...70 °C) |
| Response time |
< 100 |
| Damping process value dAP |
0.1...100 |
| Damping for the analog output dAA |
0.1...100 |
| Step response time analog output |
25 |
| Parameter setting options |
hysteresis / window; normally open / closed; switching logic; current/voltage output; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit; Zero point; span |
| Ambient temperature |
-20...60 |
| Storage temperature |
-40...100 |
| Protection |
IP 65 |
| ATEX marking |
II 3D Ex tc IIIC T90°C Dc X |
|
II 3G Ex nA IIC T4 Gc X |
| EMC |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-5 Surge | 0,5/1 kV | | EN 61000-4-6 HF conducted | 10 V |
|
| Shock resistance |
| DIN IEC 68-2-27 | 50 g (11 ms) |
|
| Vibration resistance |
| DIN IEC 68-2-6 | 20 g (10...2000 Hz) |
|
| MTTF |
163 |
| Weight |
509 |
| Housing |
tubular |
| Dimensions |
Ø 36 / L = 132 |
| Material |
stainless steel (1.4404 / 316L); PC; PBT; PEI; FKM; PTFE |
| Materials (wetted parts) |
ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); stainless steel (1.4404 / 316L) surface characteristics: Ra < 0,4 µm / Rz = 4 µm; PTFE; EPDM |
| Min. pressure cycles |
100 million |
| Process connection |
threaded connection G 1 external thread sealing cone |
| Display |
| Display unit | 6 x, green | | Switching status | LED, yellow | | Function display | alphanumeric display, 4-digit | | Measured values | alphanumeric display, 4-digit |
|
| Display unit |
mbar; kPa; inH2O; mmWS; % of the span |
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
